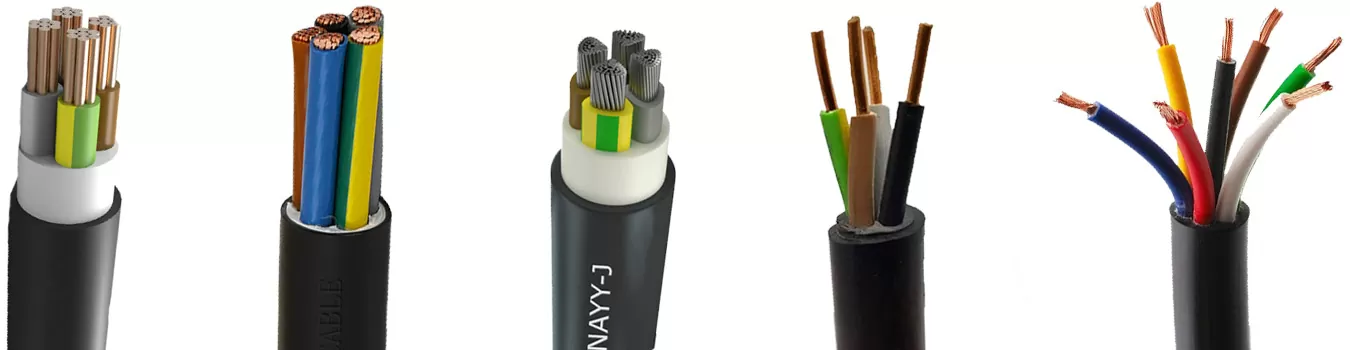

1~24 Cores NYY, NYY-J, NAYY, NAYY-J PVC Cables 0.6/1kV
NYY cables meet the construction product classification criteria of CPR Regulation 305/2011 and the EN 50575 standard, and are suitable for the transmission and distribution of low-voltage electrical power.
Recommended for industrial connections, service connections, internal distribution, and outdoor connections. They can be used in underground networks and fixed installations.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses

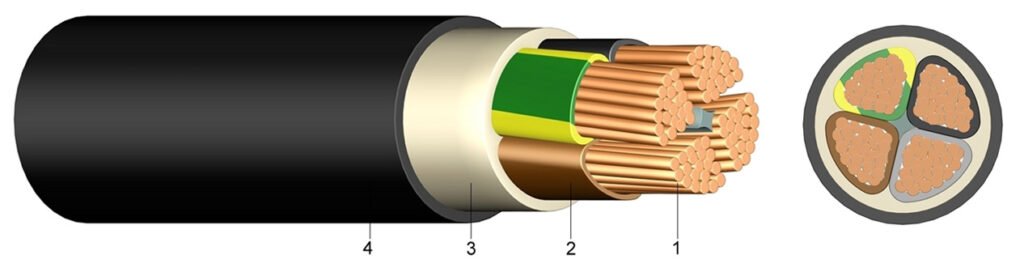

Technical Characteristics of NYY Cables
| 1. Conductor | Rigid electrolytic copper (Class I-II) according to DIN VDE 0295, UNE-EN 60228, EN 60228 and IEC 60228 |
| 2. Isolation | PVC type DIV4 according to DIN VDE 0276 |
| 3. Filling | PVC |
| 4. Cover | PVC type DMV5 according to VDE 0276-603 |
| Nominal voltage | 0,6/1 kV |
| Maximum temperature | 70 ºC |
Applications
- • Underground networks for low-voltage distribution
- • Underground power supply networks for outdoor lighting installations
- • Electricity distribution networks. Underground connections
- • Indoor or receiving installations
- • Installations in premises with special characteristics
Other features
- Constructed according to VDE 0276
- Colors according to VDE 0293-308 and HD 308 S2
- Flame retardant according to UNE-EN 60332-1-2, EN 60332-1-2, and IEC 60332-1-2
- NYY-J cables are manufactured with a yellow/green conductor
- NYY-O cables are manufactured without a yellow/green conductor
Specification
1-2 Core NYY Cables Technical Sheet
| Type | Section (mm2) | Resilience at 20 °C (Ohm/km) | Outer Diameter (mm) | Weight(kg/km) | Class |
| NYY | 1x1,5 | 12,1 | 6,4 | 60 | |
| NYY | 1x2,5 | 7,41 | 6,8 | 73 | |
| NYY | 1x4 | 4,61 | 7,7 | 99 | |
| NYY | 1x6 | 3,08 | 8,35 | 127 | |
| NYY | 1x10 | 0 | 9,15 | 172 | |
| NYY | 1x16 | 1,15 | 10,05 | 229 | Eca |
| NYY | 1x25 | 0,727 | 11,8 | 339 | Eca |
| NYY | 1x35 | 0,524 | 12,9 | 440 | Eca |
| NYY | 1x50 | 0,387 | 14,5 | 603 | Eca |
| NYY | 1x70 | 0,268 | 16,45 | 820 | Eca |
| NYY | 1x95 | 0,193 | 18,65 | 1105 | Eca |
| NYY | 1x120 | 0,153 | 20,05 | 1318 | Eca |
| NYY | 1x150 | 0,124 | 21,95 | 1614 | Eca |
| NYY | 1x185 | 0 | 24,15 | 1963 | Eca |
| NYY | 1x240 | 0,0775 | 26,95 | 2634 | Eca |
| NYY | 1x300 | 0 | 29,6 | 3121 | Eca |
| NYY-J/O | 2x1,5 | 12,1 | 10,15 | 151 | Eca |
| NYY-J/O | 2x2,5 | 7,41 | 11 | 187 | Eca |
| NYY-J/O | 2x4 | 4,61 | 12,8 | 263 | Eca |
| NYY-J/O | 2x6 | 3,08 | 14,1 | 340 | Eca |
| NYY-J/O | 2x10 | 0 | 15,7 | 456 | Eca |
| NYY-J/O | 2x16 | 1,15 | 17,5 | 607 | Eca |
| NYY-J/O | 2x25 | 0,727 | 21 | 909 | Eca |
| NYY-J/O | 2x35 | 0,524 | 23,2 | 1170 | Eca |
3-4 Core NYY Cables Technical Sheet
| Type | Section (mm2) | Resilience at 20 °C (Ohm/km) | Outer Diameter (mm) | Weight(kg/km) | Class |
| NYY-J/O | 5x1,5 | 12,1 | 11,4 | 214 | Eca |
| NYY-J/O | 5x2,5 | 7,41 | 13,3 | 311 | Eca |
| NYY-J/O | 5x4 | 4,61 | 15,2 | 420 | Eca |
| NYY-J/O | 5x6 | 3,08 | 17,45 | 588 | Eca |
| NYY-J/O | 5x10 | 0 | 19,6 | 822 | Eca |
| NYY-J/O | 5x16 | 1,15 | 22,05 | 1131 | Eca |
| NYY-J/O | 5x25 | 0,727 | 26,7 | 1743 | Eca |
| NYY-J/O | 5x35 | 0,524 | 29,9 | 2293 | Eca |
| NYY-J/O | 7x1,5 | 12,1 | 12,95 | 281 | Eca |
| NYY-J/O | 7x2,5 | 7,41 | 14,15 | 369 | Eca |
| NYY-J/O | 10x1,5 | 12,1 | 14,65 | 372 | Eca |
| NYY-J/O | 10x2,5 | 7,41 | 16,1 | 492 | Eca |
| NYY-J/O | 12x1,5 | 12,1 | 15,5 | 415 | Eca |
| NYY-J/O | 12x2,5 | 7,41 | 17,1 | 548 | Eca |
| NYY-J/O | 19x1,5 | 12,1 | 18,1 | 591 | Eca |
5-19 Core NYY Cables Technical Sheet
| Type | Section (mm2) | Resilience at 20 °C (Ohm/km) | Outer Diameter (mm) | Weight(kg/km) | Class |
| NYY-J/O | 5x1,5 | 12,1 | 11,4 | 214 | Eca |
| NYY-J/O | 5x2,5 | 7,41 | 13,3 | 311 | Eca |
| NYY-J/O | 5x4 | 4,61 | 15,2 | 420 | Eca |
| NYY-J/O | 5x6 | 3,08 | 17,45 | 588 | Eca |
| NYY-J/O | 5x10 | 0 | 19,6 | 822 | Eca |
| NYY-J/O | 5x16 | 1,15 | 22,05 | 1131 | Eca |
| NYY-J/O | 5x25 | 0,727 | 26,7 | 1743 | Eca |
| NYY-J/O | 5x35 | 0,524 | 29,9 | 2293 | Eca |
| NYY-J/O | 7x1,5 | 12,1 | 12,95 | 281 | Eca |
| NYY-J/O | 7x2,5 | 7,41 | 14,15 | 369 | Eca |
| NYY-J/O | 10x1,5 | 12,1 | 14,65 | 372 | Eca |
| NYY-J/O | 10x2,5 | 7,41 | 16,1 | 492 | Eca |
| NYY-J/O | 12x1,5 | 12,1 | 15,5 | 415 | Eca |
| NYY-J/O | 12x2,5 | 7,41 | 17,1 | 548 | Eca |
| NYY-J/O | 19x1,5 | 12,1 | 18,1 | 591 | Eca |
