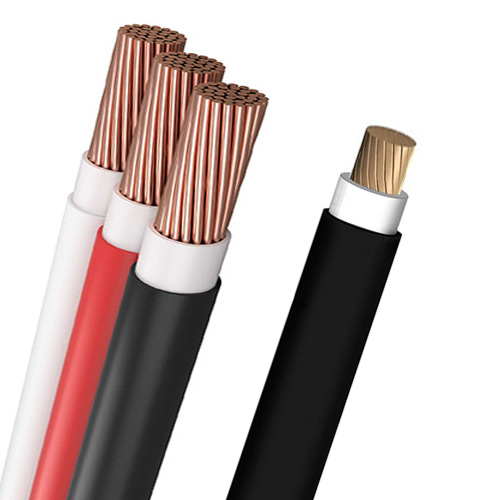

0.6/1kV 1-3 Cores N2XOH Flexible Conductor Power Cables
Copper cable insulated with cross-linked polyethylene (XLPE) and a halogen-free thermoplastic sheath, with an operating temperature of 90°C. It bears the special METRIUM marking. Especially suitable for poorly ventilated environments and high-traffic areas.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses
Construction:
- 1. Voltage: 600/1000V
- 2. Conductor: Soft copper, class 2.
- 3. Insulation: Cross-linked polyethylene (XLPE).
- 4. Outer sheath: Halogen-free thermoplastic compound (HFFR-UV).
- 5. Section:
- – Single-core: From 1.5 mm2 to 630 mm2
- – Double or Triple-core: From 6 mm2 to 500 mm2
Main features:
The cable has excellent electrical properties. The cross-linked polyethylene insulation allows for greater current carrying capacity under all operating conditions, minimal dielectric losses, and high insulation resistance. The outer jacket has the following characteristics: flame retardant, low dense smoke emission, and halogen-free. Adequate resistance to oils. Resistance to sunlight.
Applications:
In low-voltage electrical distribution networks. Special application in poorly ventilated environments, and direct application in high-traffic areas. It can be installed in ducts, escalators, or cable trays, in dry, damp, or wet environments.
Specification
Unipolar Cable Parameters
| Section [mm²] | Total number of wires | Diam. Conductor [mm] | Min. thickness Insulation [mm] | Min. thickness Cover [mm] | Diameter above deck [mm] | Weight approx. [kg/km] |
| 1.5 | 7 | 1.5 | 0.7 | 0.9 | 4.9 | 38 |
| 2.5 | 7 | 1.9 | 0.7 | 0.9 | 5.3 | 50 |
| 4 | 7 | 2.4 | 0.7 | 0.9 | 5.8 | 66 |
| 6 | 7 | 3 | 0.7 | 0.9 | 6.3 | 87 |
| 10 | 7 | 3.7 | 0.7 | 0.9 | 7.1 | 126 |
| 16 | 7 | 4.6 | 0.7 | 0.9 | 8 | 185 |
| 25 | 7 | 5.8 | 0.9 | 0.9 | 9.6 | 283 |
| 50 | 19 | 7.9 | 1 | 0.9 | 11.9 | 492 |
| 70 | 19 | 9.5 | 1.1 | 0.9 | 13.7 | 698 |
| 95 | 19 | 11.2 | 1.1 | 1 | 15.6 | 944 |
| 120 | 37 | 12.8 | 1.2 | 1 | 17.4 | 1184 |
| 150 | 37 | 14.2 | 1.4 | 1.1 | 19.4 | 1439 |
| 185 | 37 | 15.8 | 1.6 | 1.2 | 21.7 | 1810 |
| 240 | 37 | 18.2 | 1.7 | 1.2 | 24.1 | 2339 |
| 300 | 37 | 20.1 | 1.8 | 1.2 | 26.4 | 2901 |
| 400 | 61 | 23.3 | 2 | 1.4 | 30.4 | 3803 |
| 500 | 61 | 26.2 | 2.2 | 1.5 | 33.9 | 4814 |
| 630 | 61 | 30 | 2.4 | 1.6 | 38.4 | 6257 |
Double or Triple Cable Parameters
| Edit Number of Phases | Section [mm²] | Total number of wires | Diam. Conductor [mm] | Min. thickness Insulation [mm] | Min. thickness Cover [mm] | Alto [mm] | Ancho [mm] | Weight approx. [kg/km] |
| 2 | 16 | 7 | 4.6 | 0.7 | 0.9 | 8.2 | 16.2 | 376 |
| 2 | 25 | 7 | 5.8 | 0.9 | 0.9 | 9.8 | 19.4 | 572 |
| 3 | 6 | 7 | 3 | 0.7 | 0.9 | 6.5 | 19.2 | 268 |
| 3 | 10 | 7 | 3.7 | 0.7 | 0.9 | 7.2 | 21.3 | 387 |
| 3 | 16 | 7 | 4.6 | 0.7 | 0.9 | 8.2 | 24.2 | 564 |
| 3 | 25 | 7 | 5.8 | 0.9 | 0.9 | 9.8 | 29.1 | 856 |
| 3 | 35 | 7 | 6.8 | 0.9 | 0.9 | 11 | 32.6 | 1128 |
| 3 | 50 | 19 | 7.9 | 1 | 0.9 | 12.1 | 35.9 | 1487 |
| 3 | 70 | 19 | 9.5 | 1.1 | 0.9 | 13.9 | 41.3 | 2098 |
| 3 | 95 | 19 | 11.2 | 1.1 | 1 | 15.8 | 47 | 2847 |
| 3 | 120 | 37 | 12.8 | 1.2 | 1 | 17.6 | 52.4 | 3559 |
| 3 | 150 | 37 | 14.2 | 1.4 | 1.1 | 19.6 | 58.4 | 4323 |
| 3 | 185 | 37 | 15.8 | 1.6 | 1.2 | 22 | 65.1 | 5436 |
| 3 | 240 | 37 | 18 | 1.7 | 1.2 | 24.3 | 72.5 | 7023 |
| 3 | 300 | 37 | 20.1 | 1.8 | 1.2 | 26.6 | 79.4 | 8710 |
| 3 | 400 | 61 | 23.3 | 2 | 1.4 | 30.5 | 91.2 | 11418 |
