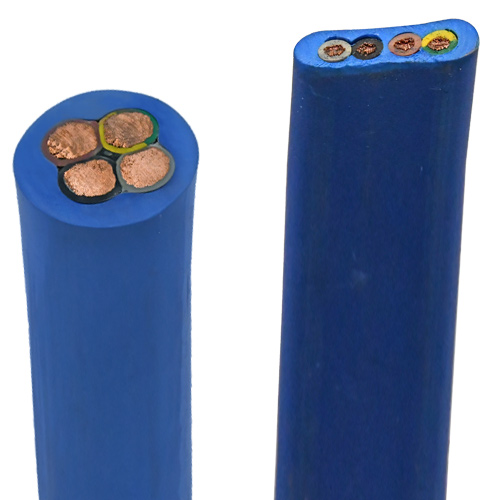

600V Submersible Pump Cable Type: Flat or Round
Estos Cable de bomba sumergible están diseñados para la alimentación de circuitos de baja tensión, hasta 600 V, a los motores de bombas sumergibles. Los materiales con que están construidos permiten su instalación en ambientes húmedos.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses
- Maximum voltage: 600 volts
- Type: Flat or round
- Conductor type: Flexible copper
- Jacket material: PVC or PE
- Individual insulation: PVC / Nylon
- Color code: Black, yellow, and red
- Maximum working temperature: 75°C
- Manufactured in gauges from 2.082 mm2 to 107.2 mm2 (14 AWG to 4/0 AWG).
MAIN APPLICATIONS
These submersible pump cables are designed to power submersible pump motors from low-voltage circuits, up to 600 V. Their construction allows for installation in humid environments.
ADVANTAGES
- * The conductors are made of soft copper strands, which makes them easy to handle and install due to their flexibility.
- * The materials used allow for installation in humid environments.

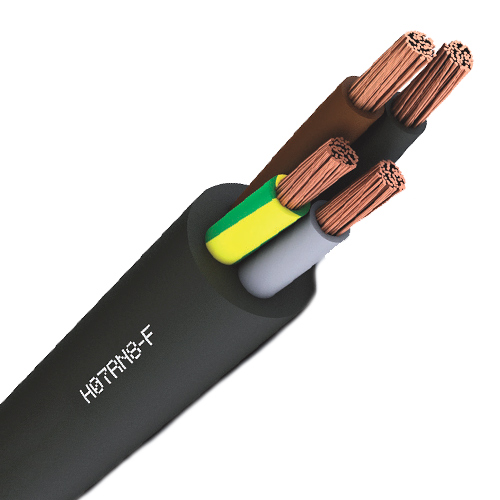

H07RN8-F Submersible Pump Cable Cover Rubber
Construction:
- – Fine bare copper wires
- – Wires according to VDE-0295 Class 5, IEC 60228 Class 5
- – EI4 rubber core insulation according to VDE-0282 Part 1
- – Color code VDE-0293-308 and HD 186
- – EM2 polychloroprene rubber (neoprene) sheath
Scope of use
- According to EN 50565-2: dry or damp locations, as well as outdoors and in industrial waters.
- For connecting mobile electrical equipment in industrial waters. Suitable for use in submersible pumps. Immersion according to AD8 standard, up to 10 m deep.
Specification
Parameters of H07RN8-F Submersible Pump Cables
| Number of conductors and section in mm² | Outer diameter [mm] | Copper index kg/km | Weight kg/km | Base unit |
| 1 X 4.0 | 7.2 - 7.8 | 38,4 | 100 | M |
| 1 X 6.0 | 7.9 - 8.5 | 57,6 | 120 | M |
| 1 X 10.0 | 9.5 - 10.5 | 96 | 180 | M |
| 1 X 25.0 | 12.7 - 13.7 | 240 | 400 | M |
| 3 G 1.5 | 9.2 - 10.8 | 43,2 | 141 | M |
| 4 G 1.5 | 10.2 - 11.8 | 57,6 | 205 | M |
| 7 G 1.5 | 14 - 17.5 | 100,8 | 385 | M |
| 3 G 2.5 | 10.9 - 12.5 | 72 | 210 | M |
| 4 G 2.5 | 12.1 - 13.9 | 96 | 260 | M |
| 7 G 2.5 | 16.5 - 20 | 168 | 520 | M |
| 4 G 4.0 | 14.0 - 16.0 | 153,6 | 356 | M |
| 4 G 6.0 | 15.7 - 17.7 | 230,4 | 475 | M |
| 4 G 10.0 | 20.9 - 23.3 | 384 | 837 | M |
| 4 G 16.0 | 23.8 - 26.4 | 614,4 | 1220 | M |
| 4 G 25.0 | 28.9 - 32.1 | 960 | 1770 | M |
| 4 G 35.0 | 32.5 - 36.1 | 1344 | 2304 | M |
Submersible Pump Cable Parameters
| Calibre | Conductor | Area | Nominal insulation thickness | Nominal thickness of the external cover. | External dimensions | Weight | A | |
| AWG | Number of threads | (mm2) | (mm) | (mm) | High (mm) | Broad (mm) | (kg/km) | 75 ˚C in the air |
| 14 | 41 | 2.08 | 0.86 | 1.5 | 6.83 | 13.59 | 156 | 20 |
| 12 | 65 | 3.31 | 0.86 | 1.5 | 7 | 15 | 204 | 25 |
| 10 | 104 | 5.26 | 0.86 | 1.5 | 7.61 | 16.83 | 267 | 35 |
| 8 | 168 | 8.37 | 1.28 | 2 | 10.41 | 23.23 | 467 | 50 |
| 6 | 266 | 13.3 | 1.28 | 2 | 11.46 | 26.38 | 682 | 65 |
| 4 | 420 | 21.2 | 1.28 | 2 | 12.71 | 30.13 | 1 001 | 85 |
| 2 | 665 | 33.6 | 1.28 | 2 | 14.3 | 34.4 | 1 460 | 115 |
| 1/0 | 1 064 | 53.5 | 1.4 | 2.4 | 17.39 | 42.57 | 2 127 | 115 |
