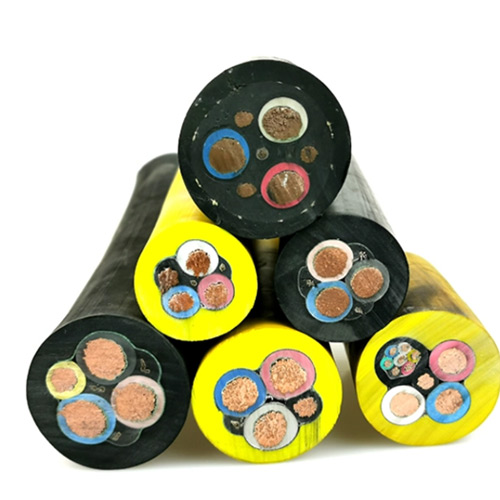

0.6/1kV NSSHÖU/NSSHOU-J/O, Rubber Power and Control Cables
For underground and open-pit mines, interconnecting mobile equipment and machinery, and for extreme weather conditions. Highly flexible 1000V rubber cable for mobile services. For portable and domestic devices and equipment, especially suitable for submersible pumps.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses
Construction:
- Tinned copper fine-stranded conductor
- Insulation: Type 3GI3 rubber compound
- Inner sheath: GM1b or 5GM5 rubber compound
- Outer sheath: Type 5GM5 rubber compound
- Product characteristics
- Conductor: Bare copper wires, flexible, Class 5 IEC/EN60228
- Insulation: EPR
- Identification: ≤ 5 Conductors
- Sheath: Rubber

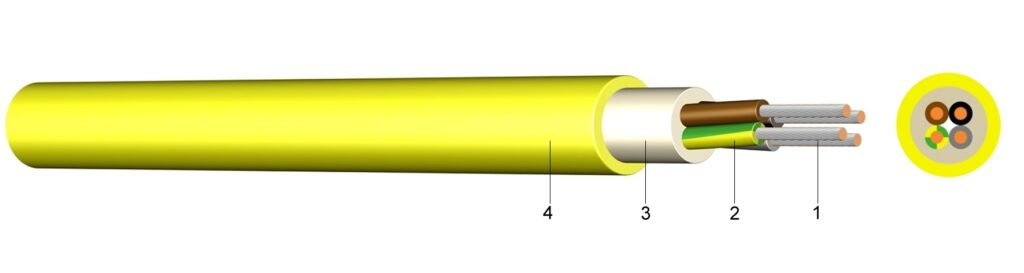

- 1. Tinned copper wire
- 2. EPR (ethylene-propylene polymer) rubber insulation
- 3. Rubber inner sheath
- 4. Polychloroprene (CR) outer sheath, yellow, abrasion- and oil-resistant, and flame-retardant
Applications:
For underground and open-pit mines, interconnecting mobile equipment and machinery, and for extreme weather conditions. Highly flexible 1000V rubber cable for mobile services. For portable and domestic devices and equipment, especially suitable for submersible pumps.
Specification
NSSHÖU-J Parameters
| Outer diameter [mm] | Copper index kg/km | Weight kg/km | Base unit | Price (base) |
| NSSHÖU-J | ||||
| 3 G 1.5 | 11.8 | 43,2 | 200 | M |
| 4 G 1.5 | 12.7 | 57,6 | 230 | M |
| 5 G 1.5 | 13.6 | 72 | 280 | M |
| 3 G 2.5 | 13.2 | 72 | 260 | M |
| 4 G 2.5 | 15.4 | 96 | 360 | M |
| 5 G 2.5 | 16.5 | 120 | 420 | M |
| 7 G 2.5 | 20 | 168 | 600 | M |
| 12 G 2.5 | 26 | 288 | 860 | M |
| 4 G 4.0 | 16.9 | 153,6 | 470 | M |
| 5 G 4.0 | 18.2 | 192 | 550 | M |
| 4 G 6.0 | 18.3 | 230,4 | 580 | M |
| 5 G 6.0 | 20.6 | 288 | 740 | M |
| 4 G 10.0 | 22.3 | 384 | 950 | M |
| 5 G 10.0 | 24.1 | 480 | 1100 | M |
| 4 G 16.0 | 26.1 | 614 | 1400 | M |
| 5 G 16.0 | 28.3 | 768 | 1720 | M |
| 4 G 25.0 | 31.2 | 960 | 2000 | M |
| 4 G 35.0 | 34.1 | 1344 | 2700 | M |
| 4 G 50.0 | 41 | 1920 | 3700 | M |
NSSHÖU-O parameters
| Outer diameter [mm] | Copper index kg/km | Weight kg/km | Base unit | Price (base) |
| NSSHÖU-O | ||||
| 1 X 16.0 | 10.9 | 153,6 | 260 | M |
| 1 X 25.0 | 13.3 | 240 | 390 | M |
| 1 X 35.0 | 14.4 | 336 | 500 | M |
| 1 X 50.0 | 16.7 | 480 | 680 | M |
| 1 X 70.0 | 18.9 | 672 | 900 | M |
| 1 X 95.0 | 21 | 912 | 1150 | M |
| 1 X 120.0 | 23.3 | 1152 | 1440 | M |
| 1 X 150.0 | 25.2 | 1440 | 1750 | M |
| 1 X 185.0 | 28.4 | 1776 | 2180 | M |
| 1 X 240.0 | 31.4 | 2304 | 2790 | M |
