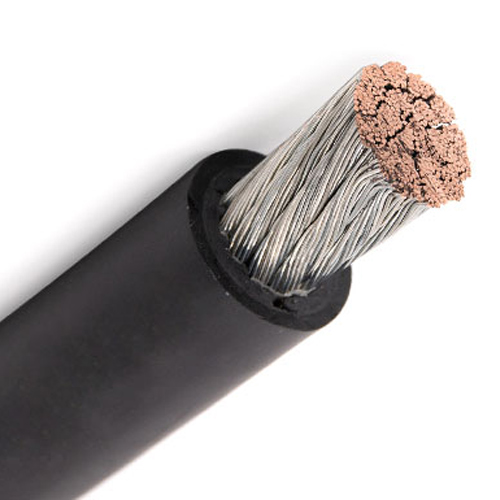

1.8/3 kV NSGAFÖU, Flexible Single-core Rubber Cable
NSGAFÖU is a single-conductor cable with a black polychloroprene sheath and EPR insulation, 1.8/3 kV, VDE-approved. Suitable for wiring machines, tools, devices, apparatus, and electrical and control cabinets. Railway vehicles, buses, short-circuit-proof up to 1000 V in switching stations and power distributors. In conduits and closed installation channels. For fixing or connecting moving parts.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses

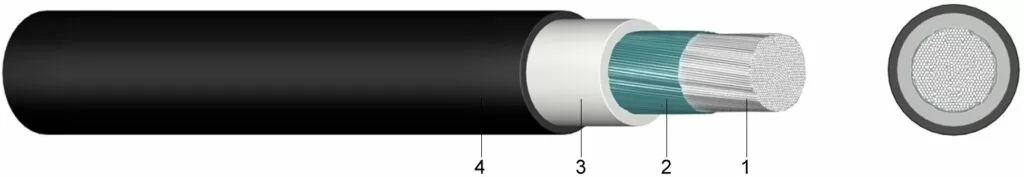

Construction:
- Product composition
- Conductor: Tinned copper strands
- Insulation: Type 3GI3 rubber compound
- Outer sheath: Type 5GM3 rubber compound
- Product characteristics
- Flame-retardant, according to IEC 60332-1-2
- Oil-resistant, according to EN 60811-404
- Cables with voltages Uo/U 0.6/1 kVac and 3.6/6 kVac available upon request
- The outer diameters indicated in the table are maximum values
Applications:
- Wiring of machines, tools, devices, apparatus, and electrical and control cabinets.
- Railway vehicles, buses, short-circuit proof up to 1000V in switching stations and power distributors.
- In closed installation conduits and channels.
- Fastening or connecting moving parts.
Specification
NSGAFÖU Cable Parameters
| Conductor cross-section in mm² | Outer diameter [mm] | Copper index kg/km | Weight kg/km |
| 1.5 | 7 | 14,4 | 60 |
| 2.5 | 7.5 | 24 | 70 |
| 4 | 9 | 38,4 | 90 |
| 6 | 9.5 | 57,6 | 120 |
| 10 | 11 | 96 | 180 |
| 16 | 13 | 153,6 | 250 |
| 25 | 15 | 240 | 390 |
| 35 | 16.5 | 336 | 470 |
| 50 | 18 | 480 | 625 |
| 70 | 20.5 | 672 | 880 |
| 95 | 24 | 912 | 1190 |
| 120 | 26 | 1152 | 1430 |
| 150 | 28 | 1440 | 1750 |
| 185 | 31 | 1776 | 2160 |
| 240 | 34.5 | 2304 | 2640 |
| 300 | 38 | 2880 | 3545 |
