SWA Mining EPR/CPE Cable 5kV, 8kV, 15kV for Galleries/Tills

SWA type mine shaft cables are used as main feeders in fixed vertical installations in underground mine shafts.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Overview of the SWA Mining Cable

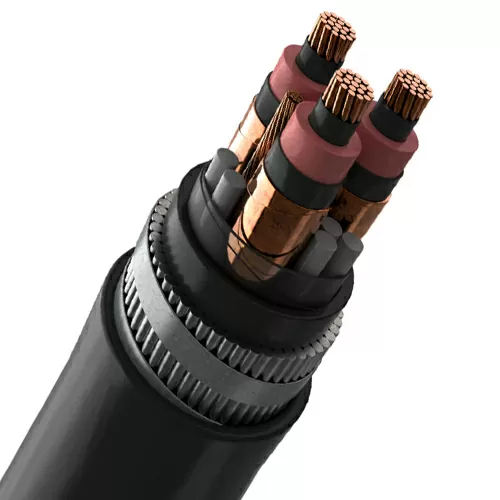

Cable consisting of three soft copper conductors, with a semi-conductive screen over the conductor and individual thermoset ethylene propylene (EPR) insulation, extruded screen over the insulation, metallic screen based on copper tapes, with a bare conductor for grounding, fillers to give a circular section, joining tape, thermoplastic inner cover of polyvinyl chloride (PVC), galvanized steel wire armor with galvanized steel strap applied helically in an open helix, thermoplastic outer cover of polyvinyl chloride (PVC).

SWA Mining Cable Specifications

ICEA S-93-639 5-46 kV Shielded Power Cable for use in the Transmission and Distribution of Electric Energy.

Main Applications

SWA type mine shaft cables are used as main feeders in fixed vertical installations in underground mine shafts.

Features of the SWA Mining Cable

Maximum operating voltage: 5,000, 8,000, and 15,000 V.
Insulation level: 100% and 133% (categories I and II, respectively).
Maximum operating temperature: 90°C.
Maximum emergency operating temperature: 130°C.
Maximum short-circuit operating temperature: 250°C.
The conductors are soft copper in compacted, concentric, class B stranded wire in sections ranging from 8.37 to 253.4 mm² (8 AWG to 500 kcmil).
The insulation is ethylene propylene (EPR).
The metallic shield consists of overlapping copper tapes applied helically. A ribbon or identification thread is placed beneath the tape.
Galvanized steel wire armor with galvanized steel strapping applied helically in an open helix over the wires.
Black thermoplastic polyvinyl chloride (PVC) inner and outer jackets, flame-retardant and sunlight-resistant.
Soft bare copper conductor for grounding.

Specification

EPR SWA Trio Mineria Cable Parameters

Calibre	Nominal cross-sectional area	Number of threads	Conductor diameter	Nominal diameter of the insulation	Calibre	Nominal cross-sectional area	Nominal diameter under the reinforcement	Nominal diameter over the reinforcement	Approx. outer diameter.
AWG/Kcmil	mm²	Number of threads	mm	mm	AWG	mm²	mm	mm	mm
8	8.37	7	3.4	9.2	8	8.4	29	38	41
6	13.3	7	4.3	10.1	6	13.3	31	40	44
4	21.15	7	5.4	11.2	6	13.3	33	42	46
2	33.62	7	6.8	12.6	6	13.3	36	45	49
1	84.8	19	7.6	13.4	4	21.2	38	47	51
1/0	53.5	19	8.5	14.3	4	21.2	40	49	53
2/0	67.4	19	9.6	15.3	4	21.2	42	51	55
3/0	85	19	10.7	16.5	2	33.6	47	55	60
4/0	107.2	19	12.1	17.9	2	33.6	50	58	63
250	126.7	37	13.2	19.3	2	33.6	53	61	66
300	152	37	14.5	20.5	2	33.6	55	64	69
350	177	37	15.6	21.7	2	33.6	58	66	72
400	203	37	16.7	22.8	2	33.6	60	69	74
500	253	37	18.7	24.7	1	84.8	64	73	78

EPR SWA Parameters for Mining Cable Galleries

Calibre	Nominal cross-sectional area	Number of threads	Conductor diameter	Diameter over insulation	Calibre	Nominal cross-sectional area	Nominal diameter under the reinforcement	Nominal diameter over the reinforcement	Approx. outer diameter.	Total weight approx.
AWG/Kcmil	mm²	Number of threads	mm	mm	AWG	mm²	mm	mm	mm	kg/100
8	8.37	7	3.4	9.2	8	8.4	29	36	40	254
6	13.3	7	4.3	10.1	6	13.3	31	38	43	295
4	21.15	7	5.4	11.2	6	13.3	33	40	45	338
2	33.62	7	6.8	12.6	6	13.3	36	43	48	403
1	84.8	19	7.6	13.4	4	21.2	38	45	50	450
1/0	53.5	19	8.5	14.3	4	21.2	40	47	52	503
2/0	67.4	19	9.6	15.3	4	21.2	42	49	54	564
3/0	85	19	10.7	16.5	2	33.6	47	53	58	665
4/0	107.2	19	12.1	17.9	2	33.6	50	56	61	759
250	126.7	37	13.2	19.3	2	33.6	53	59	65	857
300	152	37	14.5	20.5	2	33.6	55	62	68	961
350	177	37	15.6	21.7	2	33.6	58	65	70	1059
