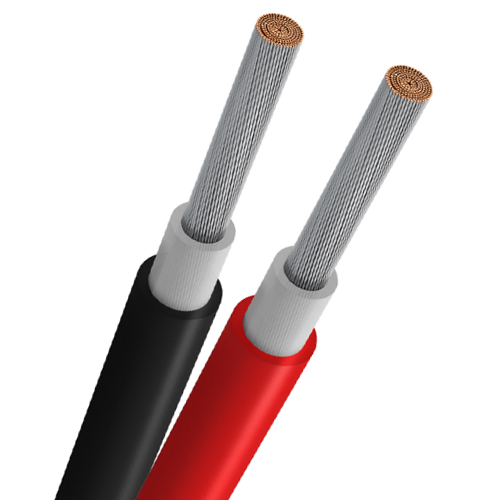

1.5/1.5kVdc H1Z2Z2-K Eca/PV ZZ-F Solar Photovoltaic Cable

Specially designed for indoor, outdoor, industrial, agricultural, fixed, or mobile photovoltaic solar installations (with trackers, etc.). They can be installed on trays, ducts, and equipment.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

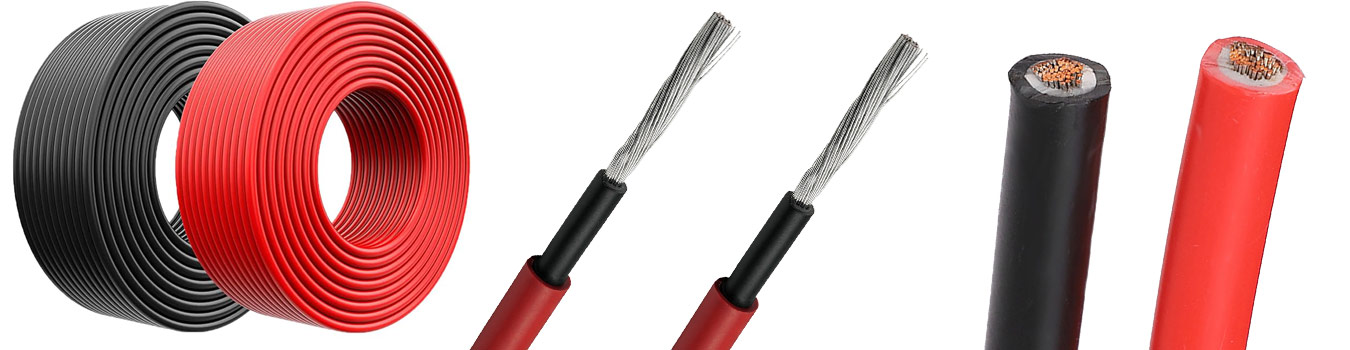

2-Solar-Cable

Conductor
Metal: Tinned annealed copper.
Flexibility: Flexible, class 5, according to UNE EN 60228.
Maximum temperature on the conductor:
90°C (120°C, for 20,000 h). 250°C short-circuit.
Insulation
Material: Halogen-free cross-linked compound according to Table B.1 of Annex B of EN 50618.
Sheath
Material: Halogen-free cross-linked compound according to Table B.1 of Annex B of EN 50618.
Colors: Black or red.

Applications

1. Specially designed for indoor, outdoor, industrial, agricultural, fixed, or mobile photovoltaic solar installations (with trackers, etc.). They can be installed on trays, conduits, and equipment.
2. Particularly resistant to water (AD8 + special WET-I 1500 DC test) in underground installations under pipes or conduits.
3. Suitable for the DC side of photovoltaic solar self-consumption installations.

Specification

Parameters of H1Z2Z2-K/PV ZZ-F Solar Cable

Number of conductors per section	Maximum conductor diameter	Cable outer diameter (value)	Minimum dynamic curvature radius	Minimum static curvature radius	Weight (kg/km) (1)	Conductor resistance at 20°C	Permissible intensity in air (2)	Permissible air current. Ambient temperature 60°C and conductor temperature 120°C (3)	Permissible intensity under buried pipe (4)	Voltage drop (V/A km) (2)
(mm2)	(mm) (1)	(mm)	(mm)	(mm)	Weight (kg/km) (1)	(W/km)	(A)		Permissible intensity under buried pipe (4)	Voltage drop (V/A km) (2)
1 x 1,5	1,8	5,4	22	16	33	13,7	24	30	24	27,4
1 x 2,5	2,4	5,9	24	18	45	8,21	34	41	32	16,42
1 x 4	3,0	6,6	26	20	61	5,09	46	55	42	10,18
1x 6	3,9	7,4	30	22	80	3,39	59	70	53	6,78
1 x 10	5,1	8,8	35	26	124	1,95	82	98	70	3,90
1 x 16	6,3	10,1	40	30	186	1,24	110	132	91	2,48
1 x 25	7,8	12,5	63	50	286	0,795	140	176	116	1,59
1 x 35	9,2	14,0	70	56	390	0,565	182	218	140	1,13
1 x 50	11,0	16,3	82	65	542	0,393	220	276	166	0,786
1 x 70	13,1	18,7	94	75	742	0,277	282	347	204	0,554
1 x 95	15,1	20,8	125	83	953	0,210	343	416	241	0,42
1 x 120	17,0	22,8	137	91	1206	0,164	397	488	275	0,328
1 x 150	19,0	25,5	153	102	1500	0,132	458	566	311	0,264
1 x 185	21,0	28,5	171	114	1843	0,108	523	644	348	0,216
1 x 240	24,0	32,1	193	128	2304	0,0817	617	775	402	0,1634
