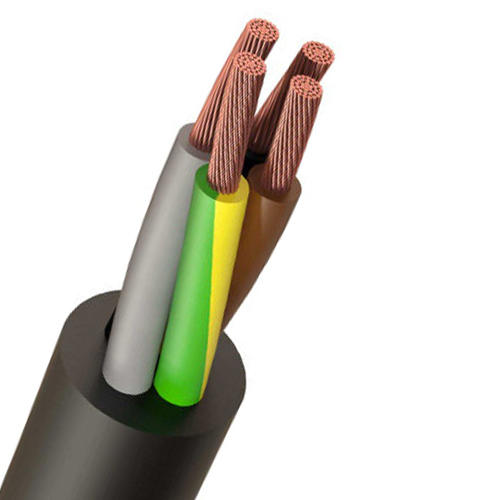

450/750V H07ZZ-F/H05ZZ-F（AS+）Rubber Cable, Halogen Free

• Conductor: Electrolytic copper, class 5 (flexible) according to UNE-EN 60228 and IEC 60228
• Insulation: Halogen-free rubber, type EI8, according to EN 50363-5.
• Outer sheath: Halogen-free rubber with low emission of smoke and corrosive gases in case of fire, black in color. Fire-retardant cable.

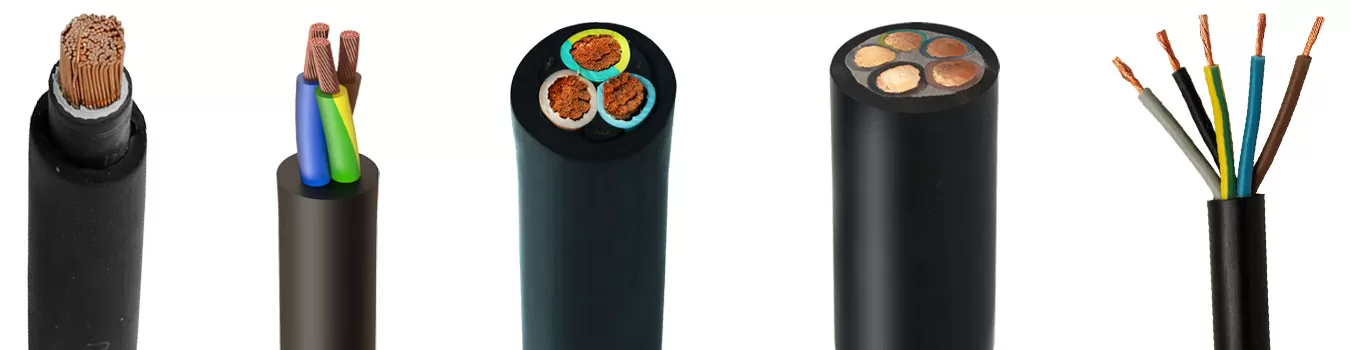

• The standardized identification of insulated conductors is as follows:
• 1 x Natural
• 2 x Blue + Brown
• 3 x Blue + Brown + Yellow/Green
• 4 x Brown + Black + Gray + Yellow/Green
• 5 x Brown + Black + Gray + Blue + Yellow/Green
• 6 or more numbered Blacks + Yellow/Green

Characteristics of the H07ZZ-F (AS) cable

• Reference standard: UNE-EN 50525-3-21
• Construction Products Regulation (CPR): B2ca-s1b, d1, a1
• Thermal characteristics: Maximum conductor temperature: 90°C
• Maximum short-circuit temperature: 250°C (maximum 5 s).
• Minimum operating temperature: -40°C (static with protection).

Applications of H07ZZ-F (AS)

H07ZZ-F (AS) is a flexible cable suitable for mobile service, suitable for installations where low smoke and corrosive gas emissions are required in the event of a fire. Designed for installations where the cable must withstand medium mechanical stress, for industrial and agricultural workshop equipment, transportable motors and machinery in construction, and for wind turbines and farms.

Fire characteristics

• Flame retardant according to UNE-EN 60332-1 and IEC 60332-1.
• Fire retardant according to UNE-EN 60332-3 and IEC 60332-3.
• Halogen-free according to UNE-EN 60754-1 and IEC 60754-1.
• Low smoke emission according to UNE-EN 61034 and IEC 61034. Luminous transmittance > 60%.
• Low corrosive gas emission according to UNE-EN 60754-2 and IEC 60754-2.
• Reaction to fire CPR: B2ca-s1b, d1, a1, according to EN 50575.

Mechanical characteristics

Bend radius: 3 x outer diameter <12 mm. 4 x outer diameter >12 mm
Impact resistance: AG2 Medium.
