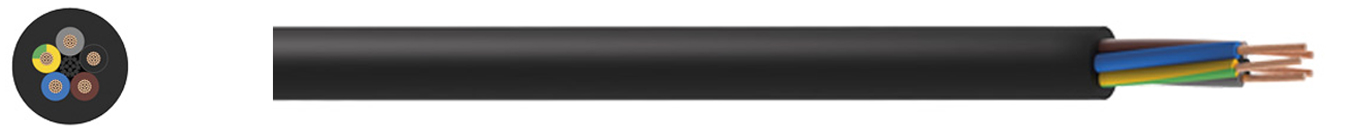

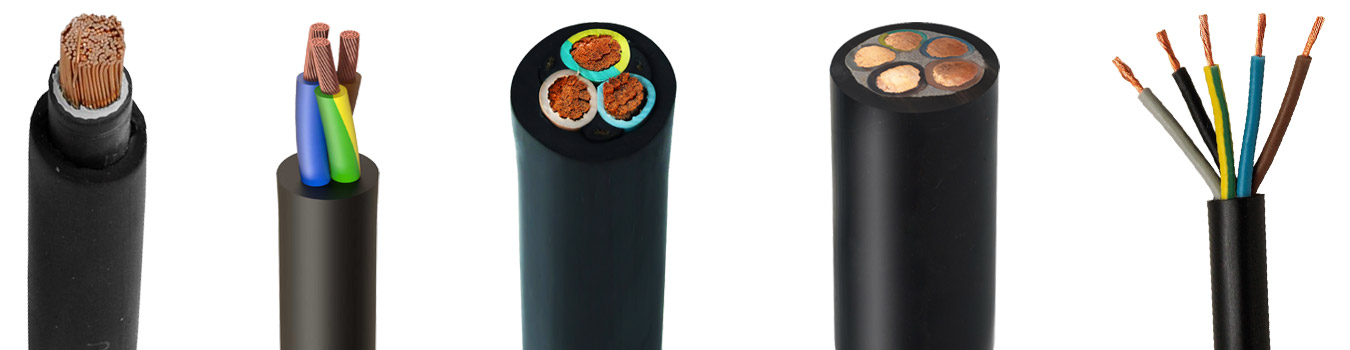

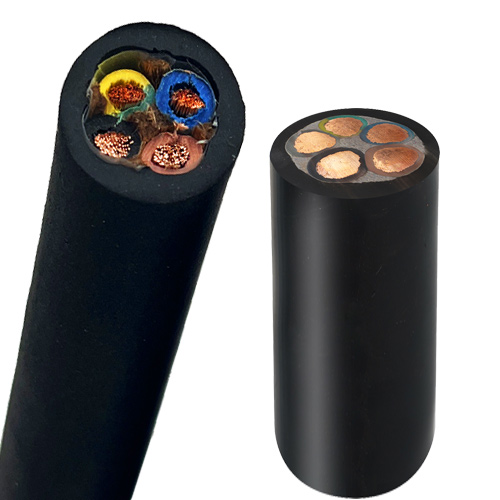

H07RN-F 450/750V Heavy Duty Flexible Copper and Rubber Cable
This is a special industrial rubber cable with extraordinary flexibility and durability. This rubber cable has been manufactured using improved polymers compared to standard specifications, making it a highly versatile cable, with operating temperatures and voltages higher than those indicated in international regulations.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses
Construction:
- Product Features
- Flame-retardant, according to IEC 60332-1-2. Oil-resistant, according to EN 60811-404.
- Product Composition
- Bare copper conductor, according to HAR. Insulation: Type EI 4 rubber compound.
- Outer sheath: Type EM 2 rubber compound.
- Technical Data
- ETIM 5 Classification: ETIM 5.0 Class ID: EC001578
- ETIM 5.0 Class Description: Flexible Cable
- ETIM 6 Classification: ETIM 6.0 Class ID: EC001578
- ETIM 6.0 Class Description: Flexible Cable
- Conductor Formation: Fine-stranded, conforming to VDE 0295 Class 5 / IEC 60228 Class 5
- Minimum bending radius: 4 to 8 x outer diameter (EN 50565-1)
- Nominal voltage: U0/U: 450/750 V
- Test voltage: 2500 V
- Protective conductor: G = with protective conductor AM/VE X = without protective conductor
- Load-carrying capacity: According to IEC 60364-5-52/ VDE 0298-4 EN 50565-1/ VDE 0298-565-1
- Temperature range: Fixed installation: -25°C to +60°C
- Occasional mobile use: -25°C to +60°C
Applications:
This is a special industrial rubber cable with extraordinary flexibility and durability. This rubber cable has been manufactured using improved polymers compared to standard specifications, making it a highly versatile cable, with operating temperatures and voltages higher than those indicated in international regulations. It is suitable for use up to 750 V in protected fixed installations. Huadong Cable’s H07RN-F cables are designed to supply power to all types of electrical equipment, including submersible motors and pumps in deepwater installations (AD8).
Specification
1-2 Cores Parameters of H07RN-F Cables
| Number of conductors and section in mm² | Outer diameter [mm] | Copper index kg/km | Weight kg/km |
| 1 X 1.5 | 5.7 - 6.5 | 14,4 | 59 |
| 1 X 2.5 | 6.3 - 7.2 | 24 | 72 |
| 1 X 4.0 | 7.2 - 8.1 | 38,4 | 99 |
| 1 X 6.0 | 7.9 - 8.8 | 57,6 | 130 |
| 1 X 10.0 | 9.5 - 10.7 | 96 | 230 |
| 1 X 16.0 | 10.8 - 12.0 | 153,6 | 320 |
| 1 X 25.0 | 12.7 - 14.0 | 240 | 450 |
| 1 X 35.0 | 14.3 - 15.9 | 336 | 605 |
| 1 X 50.0 | 16.5 - 18.2 | 480 | 825 |
| 1 X 70.0 | 18.6 - 20.5 | 672 | 1090 |
| 1 X 95.0 | 20.8 - 22.9 | 912 | 1405 |
| 1 X 120.0 | 22.8 - 25.1 | 1152 | 1745 |
| 1 X 150.0 | 25.2 - 27.6 | 1440 | 1887 |
| 1 X 185.0 | 27.6 - 30.2 | 1776 | 2274 |
| 1 X 240.0 | 30.6 - 33.5 | 2304 | 2955 |
| 1 X 300.0 | 33.5 - 36.7 | 2880 | 3479 |
| 2 X 1.5 | 8.5 - 9.9 | 28,8 | 135 |
| 2 X 2.5 | 10.2 - 11.7 | 48 | 195 |
| 2 X 4.0 | 11.8 - 13.4 | 76,8 | 270 |
3-4 Cores Parameters of H07RN-F Cables
| Number of conductors and section in mm² | Outer diameter [mm] | Copper index kg/km | Weight kg/km |
| 3 G 6.0 | 14.1 - 15.9 | 172,8 | 360 |
| 3 G 4.0 | 12.7 - 14.4 | 115,2 | 320 |
| 3 G 35.0 | 29.3 - 32.5 | 1008 | 1910 |
| 3 G 2.5 | 10.9 - 12.5 | 72 | 235 |
| 3 G 16.0 | 21.8 - 24.3 | 460,8 | 1090 |
| 3 G 10.0 | 19.1 - 21.3 | 288 | 880 |
| 3 G 1.5 | 9.2 - 10.7 | 43,2 | 165 |
| 3 G 1.0 | 8.3 - 9.6 | 28,8 | 130 |
| 4 G 95.0 | 48.4 - 53.2 | 3648 | 6320 |
| 4 G 70.0 | 42.7 - 47.1 | 2688 | 4830 |
| 4 G 6.0 | 15.7 - 17.7 | 230,4 | 475 |
| 4 G 50.0 | 37.7 - 41.5 | 1920 | 3635 |
| 4 G 4.0 | 14.0 - 15.9 | 153,6 | 395 |
| 4 G 35.0 | 32.5 - 36.0 | 1344 | 2645 |
| 4 G 25.0 | 28.9 - 32.1 | 960 | 1995 |
| 4 G 240.0 | 72.0 - 79.2 | 9216 | 12800 |
| 4 G 2.5 | 12.1 - 13.8 | 96 | 290 |
| 4 G 185.0 | 64.0 - 69.7 | 7104 | 9800 |
| 4 G 16.0 | 23.8 - 26.4 | 614,4 | 1345 |
| 4 G 150.0 | 58.0 - 63.6 | 5760 | 8320 |
| 4 G 120.0 | 53.0 - 57.5 | 4608 | 6830 |
| 4 G 10.0 | 20.9 - 23.3 | 384 | 1060 |
| 4 G 1.5 | 10.2 - 11.7 | 57,6 | 200 |
5-25 Cores Parameters of H07RN-F Cables
| Number of conductors and section in mm² | Outer diameter [mm] | Copper index kg/km | Weight kg/km |
| 5 G 6.0 | 17.5 - 19.6 | 288 | 760 |
| 5 G 50.0 | 41.8 - 46.6 | 2400 | 4050 |
| 5 G 4.0 | 15.6 - 17.6 | 192 | 485 |
| 5 G 35.0 | 35.7 - 39.5 | 1680 | 2810 |
| 5 G 25.0 | 32.0 - 35.4 | 1200 | 2470 |
| 5 G 2.5 | 13.3 - 15.1 | 120 | 294 |
| 5 G 16.0 | 26.4 - 29.2 | 768 | 1680 |
| 5 G 10.0 | 22.9 - 25.6 | 480 | 1300 |
| 5 G 1.5 | 11.2 - 12.8 | 72 | 240 |
| 7 G 4.0 | 20.1 - 22.4 | 268,8 | 681 |
| 7 G 2.5 | 17.1 - 19.3 | 168 | 520 |
| 7 G 1.5 | 14.7 - 16.5 | 100,8 | 385 |
| 12 G 2.5 | 20.6 - 23.1 | 288 | 810 |
| 12 G 1.5 | 17.6 - 19.8 | 172,8 | 516 |
| 19 G 2.5 | 25.5 - 31 | 456 | 1200 |
| 19 G 1.5 | 20.7 - 26.3 | 273,6 | 800 |
| 24 G 2.5 | 28.8 - 31.9 | 576 | 1298 |
| 24 G 1.5 | 24.3 - 27.0 | 345,6 | 882 |
| 25 G 1.5 | 25.1 - 25.9 | 360 | 920 |
