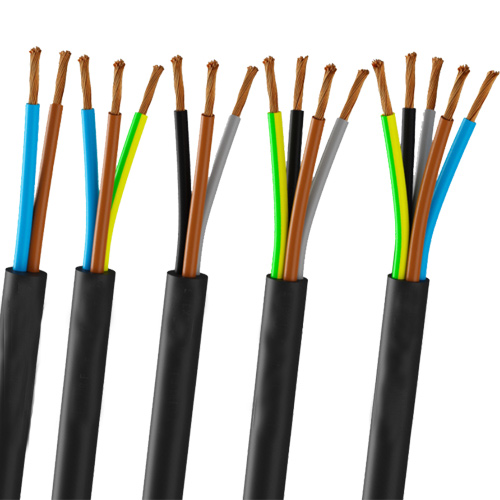

300/500V H05RN-F and H05RR-F Gamo Cables, Flexible Conductor
These cables are insulated with flexible rubber; rubber-sheathed harmonized cord, recommended for use with equipment subject to light and medium voltages, in both dry and humid environments. For use with electronic and electrical equipment such as household appliances, small hand tools, and office equipment.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses
| Type | H05RN-F Rubber Cable | H05RR-F Rubber Cable |

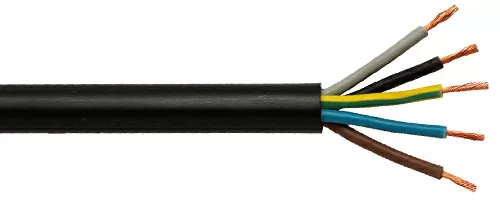

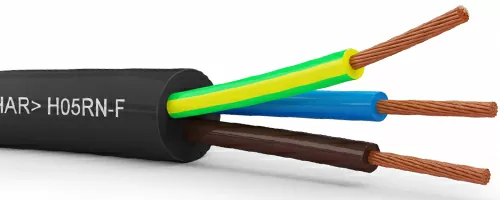

| Photo |  |
 |
| Nominal voltage | 300/500V | |
| Conductor: | Cobre recocido, flexible, clase 5 | |
| Isolation: | compuesto de goma tipo EM 4 | |
| Outer cover: | compuesto de goma tipo EM 2 | compuesto de goma tipo EM 3 |

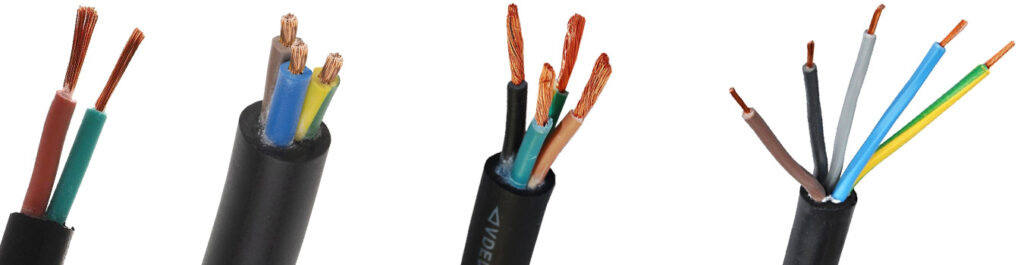

Applications of H05RR-F and H05RR-F Cables by Mago
H05RR-F can be found in irons, soldering irons, cookware, toasters, stoves, and in connections with light commercial power tools. It is also suitable for fixed mounting in furniture, decorative cladding, partitions, and prefabricated building elements. The maximum operating voltage in single-phase or three-phase systems is Uo/U 300/500 volts.
H05RN-F is commonly used for connecting electrical appliances exposed to low mechanical stress in homes, offices, and for light utility services. It is also suitable for fixed mounting in furniture, decorative cladding, partitions, and prefabricated building components.
These cables are insulated with flexible rubber; rubber-sheathed harmonized cord, recommended for use with equipment subject to light and medium voltages, in both dry and humid environments. For use with electronic and electrical equipment such as household appliances, small hand tools, and office equipment. In a direct current system, the maximum operating voltage is Uo/U 413/825 volts. Outdoor use is only permitted for short periods. They are resistant to ozone, oil, and grease.
Specification
H05RN-F Cables Parameters
| AWG | NO. OF CORES X NOMINAL CROSS-SECTIONAL AREA # X MM² | NOMINAL INSULATION THICKNESS MM | NOMINAL THICKNESS OF THE SLEEVE MM | NOMINAL OVERALL DIAMETER MM MIN.-MAX. | NOMINAL WEIGHT COPPER KG/KM | NOMINAL WEIGHT KG/KM |
| 18(24/32) | 2x0,75 | 0,6 | 0,8 | 5,7 - 7,4 | 14.4 | 80 |
| 18(24/32) | 3x0,75 | 0,6 | 0,9 | 6.2 - 8.1 | 21.6 | 95 |
| 18(24/32) | 4x0,75 | 0,6 | 0,9 | 6,8 - 8,8 | 30 | 105 |
| 17(32/32) | 2x1 | 0,6 | 0,9 | 6,1 - 8,0 | 19 | 95 |
| 17(32/32) | 3x1 | 0,6 | 0,9 | 6,5 - 8,5 | 29 | 115 |
| 17(32/32) | 4x1 | 0,6 | 0,9 | 7.1 – 9.2 | 38 | 142 |
| 16(30/30) | 3 x 1,5 | 0,8 | 1 | 8,6 - 11,0 | 29 | 105 |
| 16(30/30) | 4 x 1,5 | 0,8 | 1.1 | 9,5 - 12,2 | 39 | 129 |
| 16(30/30) | 5 x 1,5 | 0,8 | 1.1 | 10,5 - 13,5 | 48 | 153 |
H05RR-F Cables Parameters
| AWG | NO. OF CORES X NOMINAL CROSS-SECTIONAL AREA # X MM² | NOMINAL INSULATION THICKNESS MM | NOMINAL THICKNESS OF THE SLEEVE MM | NOMINAL OVERALL DIAMETER MM MIN.-MAX. | NOMINAL WEIGHT COPPER KG/KM | NOMINAL WEIGHT KG/KM |
| 18(24/32) | 2x0,75 | 0,6 | 0,8 | 5.7-7.4 | 14.4 | 61 |
| 18(24/32) | 3x0,75 | 0,6 | 0,9 | 6.2-8.1 | 21.6 | 75 |
| 18(24/32) | 4x0,75 | 0,6 | 0,9 | 6.8-8.8 | 28.8 | 94 |
| 18(24/32) | 5x0,75 | 0,6 | 1 | 7,6-9,9 | 36 | 110 |
| 17(32/32) | 2x1 | 0,6 | 0,9 | 6.1-8.0 | 19 | 73 |
| 17(32/32) | 3x1 | 0,6 | 0,9 | 6,5-8,5 | 29 | 86 |
| 17(32/32) | 4x1 | 0,6 | 0,9 | 7.1-9.3 | 38.4 | 105 |
| 17(32/32) | 5x1 | 0,6 | 1 | 8.0-10.3 | 48 | 130 |
| 16(30/30) | 2 x 1,5 | 0,8 | 1 | 7,6-9,8 | 29 | 115 |
| 16(30/30) | 3 x 1,5 | 0,8 | 1 | 8.0-10.4 | 43 | 135 |
| 16(30/30) | 4 x 1,5 | 0,8 | 1.1 | 9.0-11.6 | 58 | 165 |
| 16(30/30) | 5 x 1,5 | 0,8 | 1.1 | 9,8-12,7 | 72 | 190 |
| 14(50/30) | 2 x 2,5 | 0,9 | 1.1 | 9.0-11.6 | 48 | 160 |
| 14(50/30) | 3 x 2,5 | 0,9 | 1.1 | 9.6-12.4 | 72 | 191 |
| 14(50/30) | 4 x 2,5 | 0,9 | 1.2 | 10,7-13,8 | 96 | 235 |
| 14(50/30) | 5 x 2,5 | 0,9 | 1.3 | 11.9-15.3 | 120 | 285 |
