Galvanized Steel Cables Manufactured under DIN 3055 standard, with plow steel, quality 1770 N/mm2, preformed, with natural or synthetic fiber core.
FEATURES
Multipurpose cable, easy to use, protected against oxidation, with high tensile strength.
APPLICATIONS
Various areas of the Industry: Fishing, Mining, Transportation, Telecommunications, etc. When subjected to great crushing, or high temperatures, use with a steel core.
Galvanized Steel Cable A cable is made up of a set of steel wires wound helically around a central wire, forming strands. These strands, in turn, are wound helically around the cable’s core. At ACC, we offer two types of galvanized steel cable:
7×7 Galvanized Steel Cable
6×19 Steel Cable with Steel Core

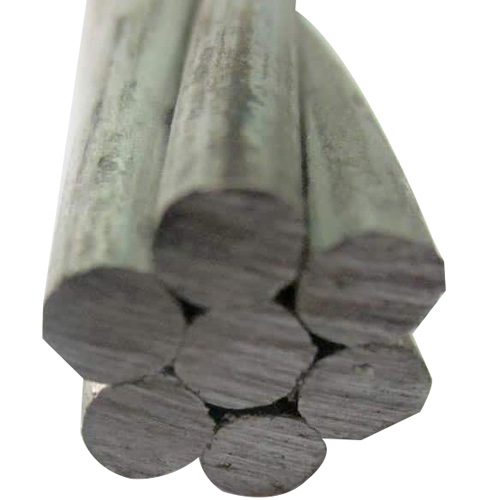

Common Grade Galvanized Steel Cable for Retention
- Steel Cable Size: 1/2, 1/4, 1/8, 3/16, 3/8, 5/16 Retained
- MAIN APPLICATIONS:
- They are used in pole holders for electrical installations.
- FEATURES:
- 1. The wire material is common grade steel with a class A zinc coating.
- 2. The cables are manufactured in concentric construction
- 3. They are manufactured in diameters from 6.35 to 12.7 mm
- ADVANTAGES: Galvanized steel wires are corrosion resistant. They offer great mechanical strength.ánica.

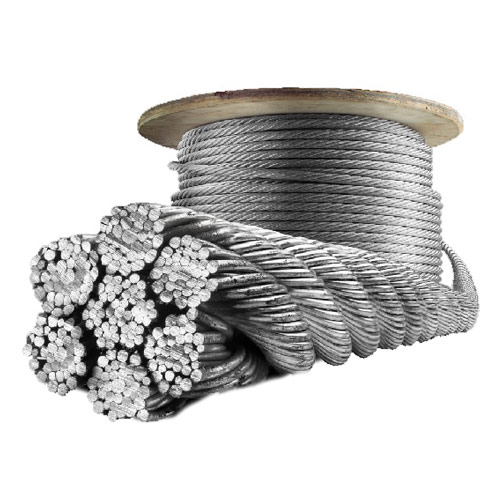

Type of Flexible Preformed Galvanized Steel Cables
- TYPE OF PREFORMED GALVANIZED STEEL CABLE
- GALVANIZED STEEL CABLE, ANGLE TYPE, FIBER CORE, SERIES 6X37, PREFORMED
- GALVANIZED STEEL BARRACUDA TYPE CABLE, STEEL CORE, SERIES 6X19, PREFORMED
- GALVANIZED STEEL CABLE, STEEL CORE, SERIES 6X37, PREFORMED
- GALVANIZED STEEL CABLE TONINA TYPE, FIBER CORE, SERIES 6X19, PREFORMED
- BLACK STEEL CABLE, BOA TYPE, STEEL CORE, SERIES 6X19, PREFORMED
- Black Steel Cable, Cobra Type, Fiber Core, Series 6x19, Preformed
- BLACK ELEPHANT TYPE STEEL CABLE, STEEL CORE, 19X7 SERIES, PREFORMED
- BLACK STEEL CABLE, ELEVATOR TYPE, FIBER CORE, SERIES 8X19S, PREFORMED
- Black steel cable, caterpillar type, steel core, construction 6x19, preformed
- BLACK STEEL CABLE, SUPER CASCABEL TYPE, STEEL CORE, SERIES 6X49, PREFORMED
- Black steel cable, superflex type, fiber core, 6x37 series, preformed

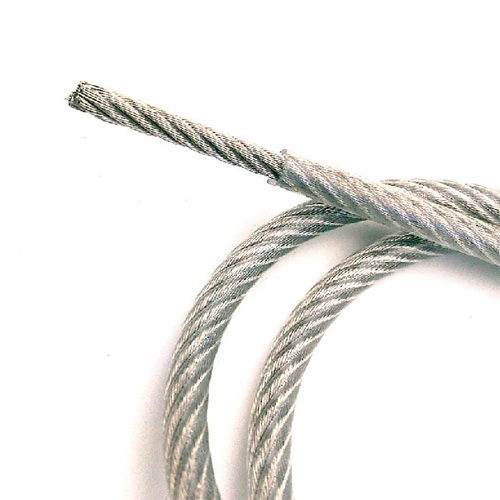

PVC Sheathed Steel Cables
- DESCRIPTION
- Tamaño: 2 a 3mm，3 a 4mm，5 a 5mm
- 2-3 mm PVC-coated steel cable
- 200 meter roll
- Steel diameter: 2mm (3/32)
- Total diameter with PVC lining: 3mm (1/8)
- Fiber core for greater flexibility
- PVC lined
- Guaranteed product
- Application: Ideal cables for Tenders, Seals, Gym, etc.
- Presentation: 200m roll

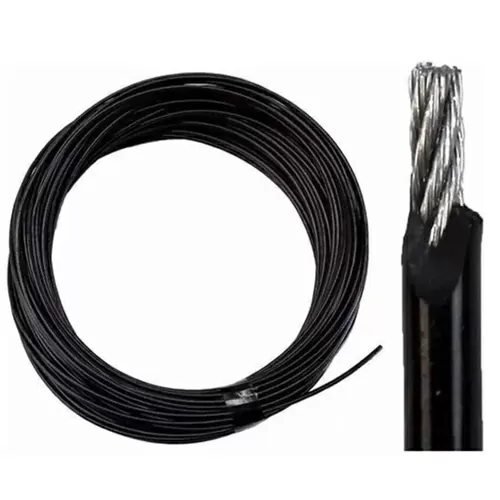

Steel Cables for Gym
- Presentation:
- Rollo: 500MT
- Size: 4-6MM from 1/4″
- Use: Gym machines
- Structure: 7X19 black PVC coated
- DESCRIPTION: Coated steel cable for gym machines. Diameter: 4-6mm (1/4)
- 6x7 6x19 Galvanized Steel
- 7x7 and 1x19 Galvanized Steel
- Galvanized steel for fastening
- Ultrapac 3 X 19S Polls
| 6x7 6x19 Technical Parameters Galvanized Steel Cables | ||||
| INCHES | FIBER SOUL | SOUL OF STEEL | ||
| 6x7 | BREAKING STRENGTH/Tm | WEIGHT PER METER kg. | BREAKING STRENGTH/Tm | WEIGHT PER METER kg. |
| 5/64” | 0.239 | 0,014 | 0.259 | 0.016 |
| 1/8” | 0.538 | 0.031 | 0.582 | 0.034 |
| 5/32” | 0.95 | 0,055 | 1.03 | 0.062 |
| 3/16” | 1.48 | 0.086 | 1.61 | 0.096 |
| 1/4” | 2.15 | 0.124 | 2.32 | 0.139 |
| 6×19 Technical Parameters of Galvanized Steel Cables | ||||
| 6x19 | BREAKING STRENGTH/ Tm. | WEIGHT PER METER kg. | BREAKING STRENGTH/ Tm. | WEIGHT PER METER kg. |
| 1/8” | 0.498 | 0.031 | 0.588 | 0.034 |
| 5/32” | 0.886 | 0.054 | 1.05 | 0.061 |
| 3/16” | 1.387 | 0.086 | 1.63 | 0.095 |
| 1/4” | 1.998 | 0.125 | 2.35 | 0.137 |
| 5/16” | 3.54 | 0.221 | 4.18 | 0.24 |
| 3/8” | 5.53 | 0.34 | 6.53 | 0.38 |
| 1/2” | 9.36 | 0.58 | 11.04 | 0.64 |
| 5/8” | 14.17 | 0.88 | 16.72 | 0.97 |
| 3/4” | 22.13 | 1.38 | 26.11 | 1.52 |
| 7/8” | 29.47 | 1.84 | 31.82 | 2.02 |
| 7x7 Galvanized Steel Cables | ||
| DIAMETER | BREAKING STRENGTH / kg. | WEIGHT PER 100 mt. kg. |
| 1/16” | 175 | 0.0145 |
| 5/64” | 310 | 0.0225 |
| 3/32” | 485 | 0.0283 |
| 1/8” | 510 | 0.056 |
| 3/16” | 1.17 | 0.119 |
| 1/4” | 2.04 | 0.188 |
| 5/16” | 2.95 | 0.302 |
| 1x19 Galvanized steel cables | ||
| DIAMETER | BREAKING STRENGTH / kg. | WEIGHT PER 100 mt. kg. |
| 1.2 mm | 150 | 0.7 |
| 1.5 mm | 250 | 1.12 |
| 1.8 mm | 340 | 1.61 |
| 2.0 mm | 425 | 2 |
| 2.5 mm | 665 | 3.1 |
| 3.0 mm | 580 | 4.48 |
| Diameter | Number of threads | Diameter of each thread | Minimum tensile breaking load | Minimum zinc coating content | Approximate total weight |
| mm (pulg) | mm | kN | g / m2 | kg / km | |
| 4,76 (3/16) | 7 | 1,57 | 5,115 | 153 | 108,27 |
| 6,35 (1/4) | 7 | 2,03 | 8,452 | 183 | 180,45 |
| 7,94 (5/16) | 7 | 2,64 | 14,234 | 244 | 305,12 |
| 9,52 (3/8) | 7 | 3,05 | 18,905 | 259 | 406,82 |
| 12,7 (1/2) | 7 | 4,19 | 32,917 | 275 | 767,72 |
| Ultrapac 3 X 19S Sondajes | ||
| DIAMETER | BREAKING STRENGTH /Tm. | WEIGHT PER 100 mt.kg.z |
| 5,0 mm | 2.1 | 0.13 |
| 6,0 mm | 3.1 | 0.19 |
| 7,0 mm | 4.2 | 0.26 |
| 8.0 mm | 5.5 | 0.3 |
| 9.5 mm | 6.9 | 0.43 |
| 10.0 mm | 8.6 | 0.53 |
