What is the AAC Conductor?

AAC (All Aluminum Conductors) conductors are also known as stranded aluminum conductors. These conductors consist of several layers of concentrically stranded aluminum wires. AAC conductors are manufactured from electrolytically refined aluminum with a minimum purity of 99.7%.

AAC conductors are used in low-voltage overhead lines in urban areas and in high-voltage substations. They are also used in very cold areas due to the low brittleness of aluminum in MV lines.

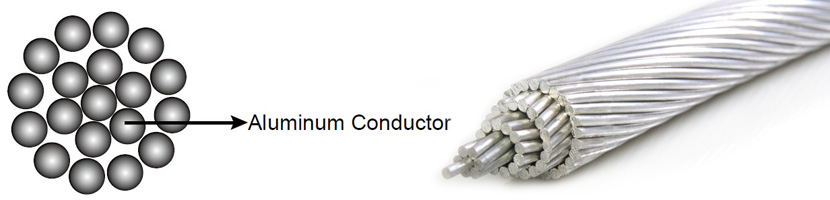

Construcción Conductor AAC

AAC Conductor Construction

1. Pure aluminum conductor, concentrically stranded.
2. Can be manufactured with or without lubricant.
3. The lubricant used is Xp3 EL-1100.

AAC Driver Application:

Classes 1 AA and A are primarily used for overhead transmission and primary and secondary distribution, where ampacity must be maintained and a lighter conductor (compared to ACSR) is desired, and where conductor strength is not a critical factor. Classes B and C are primarily used as bus, apparatus, and jumper connectors, where additional flexibility is required.

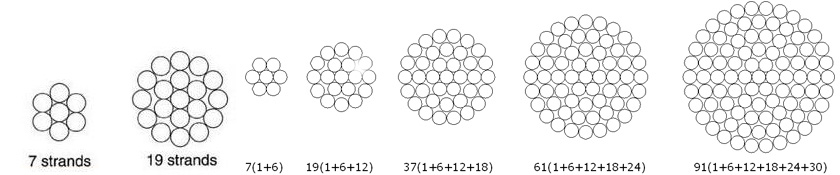

AAC Conductor construction

Electrical Characteristics of AAC Conductor

Conductivity	61 % IACS
Temperature coefficient at 20 °C, per °C	0,00403 (°C)
Resistivity at 20 ° C, maximum	28,264 Ωmm2 /km
Linear expansiveness	23 x10-6(°C)
Density at 20 °C	2,703 kg/dm3

STANDARD AAC Conductor

IEC 61089, DIN 48201-5, AS 1531, BS 215-1, BS EN 50182, ASTM B 231/B 231/M, GB/T 1179

Specification

AAC Conductor ASTM B 231/B 231M Specifications

Code	Nominal Area		Cabling	Total Diameter	Weight	Nominal resistance	Electrical Resistance	Nominal Current
Code	AWG&MCM	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
Peachbell	6	13.3	7/1.56	4.68	36.6	2.53	2.1477	75
Rose	4	21.1	7/1.96	5.88	58.2	3.91	1.3606	99
Iris	2	33.6	7/2.47	7.41	92.6	5.99	0.8567	132
Pansy	1	42.4	7/2.78	8.34	116.6	7.3	0.6763	153
Poppy	1/0.0	53.5	7/3.12	9.36	147.2	8.84	0.5369	176
Aster	2/0.0	67.4	7/3.50	10.5	185.7	11.1	0.4267	203
Phlox	3/0.0	85	7/3.93	11.79	233.9	13.5	0.3384	234
Oxlip	4/0.0	107.2	7/4.42	13.26	295.2	17	0.2675	270
Valerian	250	126.7	19/2.91	14.55	348.6	20.7	0.2274	299
Sneezewort	250	126.7	7/4.80	14.4	348.8	20.1	0.2269	299
Laurel	266.8	135.2	19/3.01	15.05	372.2	22.1	0.2125	312
Daisy	266.8	135.2	7/4.96	14.88	372.3	21.4	0.2125	311
Peony	300	152	19/3.19	15.95	418.3	24.3	0.1892	335
Tulip	336.4	170.5	19/3.38	16.9	469.5	27.3	0.1686	359
Daffodil	350	177.3	19/3.45	17.25	487.9	28.4	0.1618	369
Canna	397.5	201.4	19/3.67	18.35	554.9	31.6	0.143	397
Goldentuft	450	228	19/3.91	19.55	627.6	35	0.126	429
Syringa	477	241.7	37/2.88	20.16	664.8	38.6	0.1192	444
Cosmos	477	241.7	19/4.02	20.1	664.8	37	0.1192	444
Hyacinth	500	253.3	37/2.95	20.65	696.8	40.5	0.1136	458
Zinnia	500	253.3	19/4.12	20.6	697.1	38.9	0.1134	458
Dahlia	556.5	282	19/4.35	21.75	775.8	43.3	0.1018	489
Mistletoe	556.5	282	37/3.12	21.84	775.7	44.3	0.1016	490
Meadowsweet	600	304	37/3.23	22.61	836.3	47.5	0.0948	511
Orchid	636	322.3	37/3.33	23.31	886.9	50.4	0.0892	530
Heuchera	650	329.4	37/3.37	23.59	907.4	51.7	0.0871	538
Flag	700	354.7	61/2.72	24.48	975.8	57.1	0.0811	561
Varbena	700	354.7	37/3.49	24.43	975.7	55.4	0.0812	561
Nasturtium	715.5	362.6	61/2.75	24.75	998.5	58.4	0.0793	569
Violet	715.5	362.6	37/3.53	24.71	998.5	56.7	0.0794	568
Cattail	750	380	61/2.82	25.38	1046	60.3	0.0754	587
Petunia	750	380	37/3.62	25.34	1046	58.6	0.0755	586
Lilac	795	402.8	61/2.90	26.1	1110	63.8	0.0713	607
Arbutus	795	402.8	37/3.72	26.04	1109	61.8	0.0715	605
Snapdragon	900	456	61/3.09	27.81	1256	70.8	0.0628	654
Cockscomb	900	456	37/3.96	27.72	1256	68.4	0.0631	652
Goldenrod	954	483.4	61/3.18	28.62	1331	75	0.0593	677
Magnolia	954	483.4	37/4.08	28.56	1331	72.6	0.0594	676
Camellia	1000	506.7	61/3.25	29.25	1394	78.3	0.0568	695
Hawkweed	1000	506.7	37/4.18	29.26	1395	76.2	0.0566	696
Larkspur	1033.5	523.7	61/3.31	29.79	1442	81.3	0.0547	710
Bluebell	1033.5	523.7	37/4.25	29.75	1441	78.8	0.0547	710
Marigold	1113	564	61/3.43	30.87	1553	87.3	0.051	740
Hawthorn	1192.5	604.2	61/3.55	31.95	1662	93.5	0.0476	771
Narsissus	1272	644.5	61/3.67	33.03	1774	98.1	0.0445	802
Columbine	1351	694.8	61/3.78	34.02	1884	104	0.042	829
Carnation	1431	725.1	61/3.89	35.01	1997	108	0.0396	858
Gladiolus	1510.5	765.4	61/4.00	36	2108	114	0.0375	885
Coreopsis	1590	805.7	61/4.10	36.9	2216	120	0.0357	911
Jassamine	1750	886.7	61/4.30	38.7	2442	132	0.0324	962
Cowslip*	2000	1013	91/3.77	41.47	2787	153	0.0286	1032
Sagebrush*	2250	1140	91/3.99	43.89	3166	167	0.0255	1099
Lupine*	2500	1267	91/4.21	46.31	3519	186	0.0229	1163
Bitterrot*	2750	1393	91/4.42	48.62	3872	205	0.0208	1223
Trillium*	3000	1520	127/3.90	50.7	4226	223	0.0193	1271
Bluebonnet*	3500	1773	127/4.22	54.86	4977	261	0.0165	137

AAC Conductor Specifications to BS 215

Code	Nominal Area		Cabling	Total diameter	Weight	Nominal resistance	Electrical resistance	Nominal current
Code	Nominal	Teórico	Cabling	Total diameter	Weight	Nominal resistance	Electrical resistance	Nominal current
	mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
Midge	22	23.33	7/2.06	6.18	64	3.99	1.227	106
Gnat	25	26.8	7/2.21	6.6	73.8	4.83	1.0643	122
Mosquito	35	37	7/2.59	7.8	102.1	6.27	0.7749	141
Ladybird	40	42.8	7/2.79	8.4	117.9	7.28	0.6678	157
Ant	50	52.83	7/3.1	9.3	145	8.28	0.5419	175
Fly	60	63.55	7/3.4	10.2	174	9.9	0.4505	196
Wasp	100	106	7/4.39	13.17	290	16	0.2702	268
Hornet	150	157.6	19 / 3.25	16.25	434	25.7	0.1825	342
Charfer	200	213.2	19 / 3.78	18.9	587	35.4	0.1349	412
Cockroach	250	265.7	19/4.22	21.1	731	40.4	0.1083	471
Butterfly	300	322.7	19/4.65	23.25	888	48.75	0.08916	530
Centipede	400	415.2	37/3.78	26.46	1145	63.1	0.06944	616
Maybug	475	486,1	37/4,09	28,6	1342	0.05571	0,05900	740
Skorpion	500	529,8	37/4,27	29,9	1460	0.04916	0,05400	887
Cicada	600	628,3	37/4,65	32,6	1733	0.03423	0,04500	1056

AAC Conductor Specifications to BS EN 50182

Code	Nominal Area		Cabling	Total diameter	Weight	Nominal resistance	Electrical resistance	Nominal current
Code	Nominal	Teórico	Cabling	Total diameter	Weight	Nominal resistance	Electrical resistance	Nominal current
	mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/km	A
Gnat	25	26.9	7/2.21	6.63	73	4.83	1.0643	115
Mosquito	35	36.9	7/2.59	7.77	101	6.27	0.7749	140
Ladybird	40	42.8	7/2.79	8.37	117	7.28	0.6678	154
Bluebottle	70	73.6	7/3.66	10.98	201	11.78	0.388	215
Earwig	75	78.6	7/3.78	11.34	215	12.57	0.3638	223
Grasshopper	80	84.1	7/3.91	11.73	230	13.45	0.34	233
Clegg	90	95.6	7/4.17	12.51	261	15.3	0.2989	252
Beetle	100	106.4	19/2.67	13.35	292	18.08	0.2701	269
Bee	120	132	7/4.90	14.7	361	21.12	0.2165	307
Caterpillar	180	185.9	19/3.53	17.65	511	29.75	0.1546	379
Spider	220	237.6	19/3.99	19.95	653	38.01	0.121	440
Moth	350	373.1	19/5.00	25	1025	59.69	0.077	579
Drone	350	372.4	37/3.58	25.06	1027	59.59	0.0774	577
Maybug	450	486.1	37/4.09	28.63	1341	77.78	0.0593	677
Scorpion	500	529.8	37/4.27	29.89	1461	84.77	0.0544	713
Cicada	600	628.3	37/4.65	32.55	1733	100.54	0.0459	788

AAC Conductor Specifications to CSA C49 Standard

Code		Braiding and cable diameter	Approximate total diameter	Linear mass	Nominal breaking load	Maximum resistance at 20℃	Nominal current
Code	mm2	mm	mm	Kg/km	KN	Ω/km	A
Rose	21.2121	7/1.961	6.66	58	4.1	1.1111	104
Lily	27.2727	7/2.202	7.77	73	5	1.1111	124
Iris	34.3434	7/2.474	7.77	92	6.2	1.1111	136
Pansy	42.4242	7/2.776	8.88	116	7.6	1.1111	157
Poppy	53.5353	7/3.119	9.99	146	9.2	1.1111	180
Aster	67.6767	7/3.503	11.1111	184	11.6	0	207
Phlox	85.8585	7/3.902	12.1212	232	14.1	0	237
Oxlip	107.107107	7/4.417	13.1313	293	17.7	0	273
Daisy	135.135135	7/4960	15.1515	369	22.4	0	313
Valerian	127.127127	19/2.913	15.1515	348	22.3	0	305
Laurel	135.135135	19/3.010	15.1515	372	23.8	0	317
Peony	152.152152	19/3.193	16.1616	417	26.2	0	340
Tulip	170.17017	19/3.381	17.1717	467	29.4	0	364
Daffodil	177.177177	19/3.447	17.1717	488	30.6	0	373
Canna	201.201201	19/3.673	18.1818	554	34	0	401
Canna	203.203203	19/3.686	18.1818	558	34.2	0	402
Goldentuft	228.228228	19/3.909	20.202	626	37.7	0	432
Cosmos	242.242242	19/4.023	20.202	664	40	0	447
Zinnia	253.253253	19/4.120	21.2121	695	41.9	0	459
Dahlia	282.282282	19/4.346	22.2222	774	46.7	0	489
Dahlia	279.279279	37/3.096	22.2222	768	48	0	485
Meadowsweet	304.304304	37/3.233	23.2323	838	52.4	0	513
Orchid	322.322322	37/3.330	23.2323	888	55.6	0	531
Heuchera	329.329329	37/3.366	24.2424	908	56.8	0	538
Varbena	355.355355	37/3.493	24.2424	978	61.1	0	562
Violet	363.363363	37/3.533	25.2525	1000	62.5	0	570
Patunia	380.38038	37/3.617	25.2525	1048	64.2	0	585
Arbutus	403.403403	37/3.724	26.2626	1112	68.1	0	605
Arbutus	405.405405	37/3.734	26.2626	1118	68.5	0	608
Anemone	443.443443	37/3.904	27.2727	1222	73.3	0	641
Cockscomb	456.456456	37/3.962	28.2828	1257	75.4	0	657
Magnolia	483.483483	37/4.079	29.2929	1333	80	0	675
Hawkweed	507.507507	37/4.176	29.2929	1396	83.8	0	693
Bluebell	524.524524	37/4.244	30.303	1445	86.6	0	706
Bluebell	557.557557	61/3.411	31.3131	1539	96.1	0	733
Marigold	564.564564	61/3.432	31.3131	1559	97.2	0	738
Hawthorn	604.604604	61/3.551	32.3232	1670	104.1	0	767
Hawthorn	608.608608	61/3.564	32.3232	1679	102.7	0	771
Narcissus	645.645645	61/3.668	33.3333	1781	108.8	0	797
Narcissus	659.659659	61/3.708	33.3333	1818	112.2	0	807
Columbine	685.685685	61/3.78	34.3434	1893	115.6	0	825
Columbine	709.709709	61/3.848	35.3535	1958	117.4	0	842
Carnation	725.725725	61/3.891	35.3535	2004	119.9	0	854
Carnation	760.76076	61/3.983	36.3636	2098	125.7	0	877
Gladiolus	765.765765	61/3.998	36.3636	2116	126.5	0	881
Corepsis	806.806806	61/4.096	37.3737	2226	133.2	0	907
	811.811811	61/4.115	37.3737	2238	134.1	0	910
	861.861861	61/4.239	38.3838	2378	142.6	0	842
	912.912912	61/3.571	39.3939	2521	153.9	0	975

AAC Conductor Specifications of DIN 48201 Standard

Area		Braiding and cable diameter	Total diameter mm	Linear mass kg/km	Calculated breaking load	Maximum DC resistance at 20℃ Ω/km	Nominal current A
Nominal cross section mm2	Actual cross section mm2	Braiding and cable diameter	Total diameter mm	Linear mass kg/km	Calculated breaking load	Maximum DC resistance at 20℃ Ω/km	Nominal current A
16	16.1616	7/1.70	5.55	44	290	2.22222	110
25	24.2424	7/2.10	6.66	67	425	1.11111	145
35	34.3434	7/2.50	8.88	94	585	1.11111	180
50	49.4949	7/3.00	9.99	135	810	1.11111	225
50	48.4848	19/1.80	9.99	133	860	1.11111	225
70	66.6666	19/2.10	10.101	181	1150	0	270
95	93.9393	19/2.50	12.1212	256	1595	0	340
120	117.117117	19/2.80	14.1414	322	1910	0	390
150	147.147147	37/2.25	15.1515	406	2570	0	455
185	182.182182	37/2.50	18.1818	501	3105	0	520
240	243.243243	61/2.25	20.202	670	4015	0	625
300	299.299299	61/2.50	22.2222	827	4850	0	710
400	400.4004	61/2.89	26.2626	1105	6190	0	855
500	500.5005	61/3.23	29.2929	1381	7600	0	990
625	626.626626	91/2.96	33.3333	1733	9690	0	1140
800	802.802802	91/3.35	37.3737	2219	12055	0	1340
1000	1000.10001	91/3.74	41.4141	2766	14845	0	1540

AAC Conductor Specifications of IEC 61089 Standard

Code	Nominal Area	Cabling	Total Diameter	Weight	Nominal resistance	Electrical Resistance	Nominal Current
Code	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
10	10	7/1.35	4.05	27.4	1.95	2.8633	62
16	16	7/1.71	5.13	43.8	3.04	1.7896	84
25	25	7/2.13	6.39	68.4	4.5	1.1453	110
40	40	7/2.70	8.1	109.4	6.8	0.7158	147
63	63	7/3.39	10.17	172.3	10.39	0.4545	195
100	100	19/2.59	12.95	274.8	17	0.2877	259
125	125	19/2.89	14.45	343.6	21.25	0.2302	297
160	160	19/3.27	16.35	439.8	26.4	0.1798	345
200	200	19/3.66	18.3	549.7	32	0.1439	396
250	250	19/4.09	20.45	687.1	40	0.1151	454
315	315	37/3.29	23.03	867.9	51.97	0.0916	522
400	400	37/3.71	25.97	1102	64	0.0721	603
450	450	37/3.94	27.58	1239.8	72	0.0641	647
500	500	37/4.15	29.05	1377.6	80	0.0577	688
560	560	37/4.39	30.73	1542.9	89.6	0.0515	736
630	630	61/3.63	32.67	1738.3	100.8	0.0458	789
710	710	61/3.85	34.65	1959.1	113.6	0.0407	845
800	800	61/4.09	36.81	2207.4	128	0.0361	905
900	900	61/4.33	38.97	2483.3	144	0.0321	967
1000	1000	61/4.57	41.13	2759.2	160	0.0289	1026
1120*	1120	91/3.96	43.56	3093.5	179.2	0.0258	1091
1250*	1250	91/4.18	45.98	3452.6	200	0.0231	1157
1400*	1400	91/4.43	48.73	3866.9	224	0.0207	1226
1500*	1500	91/4.58	50.38	4143.1	240	0.0193	1270

Trusted Manufacturer

Based on high-quality products, a good reputation, and excellent service, we sincerely hope to establish mutually beneficial cooperation with domestic and foreign merchants and create a bright future together.

Our Clients

We are professional cable manufacturers. Thanks to the excellent quality of our cables and continuous product innovation, we export them to over 130 countries worldwide and have received numerous praises from our customers.

Our Workshop

HuaDong Cable Group was established in 1999 and covers an area of 66,000 square meters, located in the Xiuwu Industrial Zone of Jiaozuo City, China. We have 20 advanced production lines and 25 testing machines, with an annual production capacity of over 15 million kilometers.

Why choose Huadong cable?

Our vision is to become an internationally renowned brand in the cable industry. Customer satisfaction, employee advancement, and corporate development are our service principles; high standards, globalization, and building an international brand are our business philosophy.

Sobre HuaDong

Henan Huadong Cable Co., Ltd. was founded in 1999 and is a national high-tech enterprise integrating scientific research, industry, and trade. Huadong Cable is deeply involved in the construction of the Belt and Road Initiative and exports to over 130 countries worldwide, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.

Technology HuaDong

Huadong Cable focuses on technology research and development, employing 60 professionals with advanced professional degrees and holding over 100 patents and utility models. Huadong Cable employs a team of experienced technical engineers to ensure cable quality.

Main products

Our main products include marine cables, power cables, aerial cables, flame-resistant cables, low-smoke halogen-free cables, rubber cables, high-temperature cables, instrument and control cables, solar cables, and other products.
