What is an AAAC Driver?

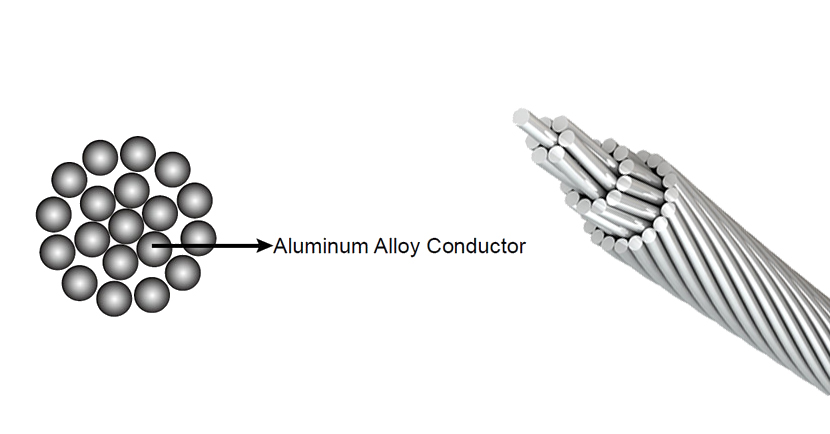

AAAC (All Aluminum Alloy Conductors) conductors are made from a highly electrically conductive aluminum-magnesium-silicon alloy containing magnesium (0.6–0.9%) and silicon (0.5–0.9%) to improve its mechanical properties after treatment. AAAC conductor Multiple layers of aluminum alloy (usually Al–Mg–Si) twisted in concentric layers. Designed using a high-strength aluminum alloy to achieve a high strength-to-weight ratio.

Conductor AAAC

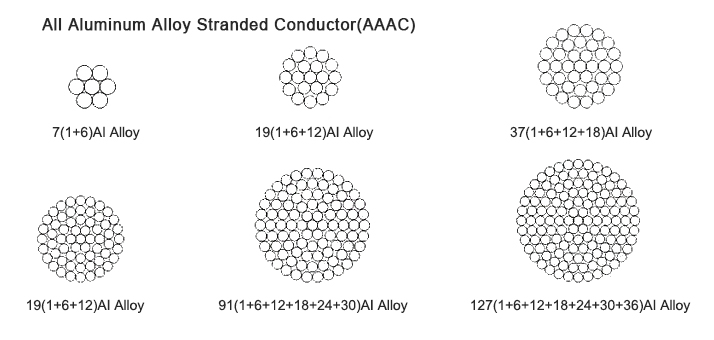

AAAC Construction Driver

1. Aluminum alloy conductor, concentrically stranded.
2. Can be manufactured with or without lubricant.
3. The lubricant used is Xp3 EL-1100.

Conductor AAAC Construcción

AAAC Driver Application:

Used as a bare overhead conductor for primary and secondary distribution. Designed using a high-strength aluminum alloy to achieve a high strength-to-weight ratio; it offers good buckling characteristics. The 6201-T81 aluminum alloy gives AAAC greater corrosion resistance than ACSR.

Electrical Characteristics AAAC Conductor:

Density at 20°C	2.703 kg/dm3
Temperature resistance at 20 °C	0.00360 (°C)
Resistivity at 20 ° C, maximum	32,84 Ωmm2 /km
Coefficient of linear expansion, per °C	23 x10-6(°C)
Conductivity	52,5 % IACS
Initial modulus of elasticity	50,34 kN/mm²
Final modulus of elasticity	60,82 kN/mm²

AAAC Standard Conductor:

American Standard-ASTM B 399/B 399M
Normas Técnicas Peruanas-NTP 370.258
International Electrotechnical Commission International Standards-IEC 61089

Specification

AAAC Conductor Standard Specifications ASTM B 399B

Conductor AAAC-ASTM B 399B 399M
Nominal Area		Cabling	Total Diameter	Weight	Nominal Resistance	Electrical Resistance	Nominal Current
AWG&MCM	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
6	13.2	7/1.55	4.65	36.2	4.18	2.5361	69
4	21.1	7/1.96	5.88	57.9	6.69	1.586	93
2	33.5	7/2.47	7.41	92	10.6	0.9987	123
0	53.5	7/3.12	9.36	146.8	17	0.62592	165
2/0	67.3	7/3.50	10.5	184.8	20.4	0.49738	190
3/0	84.9	7/3.93	11.79	233	25.7	0.3945	219
4/0	107	7/4.42	13.26	294.7	32.5	0.31188	253
250	126	19/2.91	14.55	346.7	38.8	0.26509	280
300	152	19/3.19	15.95	416.7	46.6	0.22059	313
350	178	19/3.45	17.25	487.3	52	0.1886	345
400	203	19/3.69	18.45	557.5	59.5	0.16486	375
450	228	19/3.91	19.55	626	66.8	0.14683	402
500	253	19/4.12	20.6	695	74.2	0.13224	429
550	279	37/3.10	21.7	766.2	83.9	0.11995	455
600	303	37/3.23	22.61	831.9	91	0.11049	478
650	330	37/3.37	23.59	905.5	94.9	0.1015	504
700	354	37/3.49	24.43	971.2	101	0.09464	525
750	381	37/3.62	25.34	1045	109	0.08796	549
800	404	37/3.73	26.11	1109	116	0.08285	569
900	456	37/3.96	27.72	1250	131	0.07351	612
1000	508	37/4.18	29.26	1393	146	0.06597	653
1250	631	61/3.63	32.67	1732	179	0.05306	743
1500	759	61/3.98	35.82	2082	215	0.04414	827
1750	886	61/4.30	38.7	2431	251	0.03781	904

AAAC Conductor Standard Specifications BS 3242

Conductor AAAC-BS 3242
Code	TO Nominal Area	Cu Nominal Equivalent Area	Total Area	Cabling	Total Diameter	Weight
	mm^2	mm^2	mm^2	No.Ω/mm	mm	kg/km
-	-	6.45	11.7	7/1.47	4.41	32.2
Box	-	9.68	18.8	7/1.85	5.55	51.7
Acacia	-	12.9	21.9	7/2.08	6.24	66.1
Almond	25	16.1	30.1	7/2.34	7.02	82.9
Ceda	30	19.4	35.5	7/2.54	7.62	97.8
-	40	22.6	42.2	7/2.77	8.31	116.4
Fir	50	25.8	47.8	7/2.95	8.85	131.8
Hazel	100	32.3	59.9	7/3.30	9.9	165
Pine	-	38.7	71.7	7/3.61	10.83	197.7
-	-	45.2	84.1	7/3.91	11.73	231.6
Willow	150	48.4	89.8	7/4.04	12.12	247.5
-	175	51.6	96.5	7/4.19	12.57	266.2
-	300	58.1	108.8	7/4.45	13.35	299.8
Oak	-	64.5	118.9	7/4.65	13.95	327.8
-	-	80.6	118.8	19/2.82	14.1	327.6
Mulberry	-	96.8	151.1	19/3.18	15.9	416.7
Ash	-	113	180.7	19/3.48	17.4	498.1
Elm	-	129	211	19/3.76	18.8	582.1
Poplar	-	145	239	37/2.87	20.09	658.8
-	-	161	270.8	37/3.05	21.35	746.7
Sycamore	-	194	303	37/3.23	22.61	834.9
Upas	-	226	362.1	37/3.53	24.71	998.6
-	-	258	421.8	37/3.81	26.47	1163
Yew	-	-	479.9	37/4.06	28.42	132

AAAC Conductor Standard Specifications BS EN 50182

Conductor AAAC-BS EN 50182
Code	Cabling	Nominal Area	Total Diameter	Weight	Nominal Resistance	Electrical Resistance	Nominal Current
Code	No.xmm	mm^2	mm	kg/km	KN	Ω/Km	A
Box	7/1.85	18.8	5.55	51.4	5.55	1.748	87
Acacia	7/2.08	23.8	6.24	64.9	7.02	1.3828	101
Almond	7/2.34	30.1	7.02	82.2	8.88	1.0926	116
Cedar	7/2.54	35.5	7.62	96.8	10.46	0.9273	129
Deodar	7/2.77	42.2	8.31	115.2	12.44	0.7797	143
Fir	7/2.95	47.8	8.85	130.6	14.11	0.6875	155
Hazel	7/3.30	59.9	9.9	163.4	17.66	0.5494	178
Pine	7/3.61	71.6	10.83	195.6	21.14	0.4591	199
Holly	7/3.91	84.1	11.73	229.5	24.79	0.3913	219
Willow	7/4.04	89.7	12.12	245	26.47	0.3665	228
Oak	7/4.65	118.9	13.95	324.5	35.07	0.2767	272
Mulberry	19/3.18	150.9	15.9	414.3	44.52	0.2192	314
Ash	19/3.48	180.7	17.4	496.1	53.31	0.183	351
Elm	19/3.76	211	18.8	579.2	62.24	0.1568	386
Poplar	37/2.87	239.4	20.09	659.4	70.61	0.1387	416
Sycamore	37/3.23	303.2	22.61	835.2	89.4	0.1095	480
Upas	37/3.53	362.1	24.71	997.5	106.82	0.0917	535
Yew	37/4.06	479	28.42	1319.6	141.31	0.0693	633
Totara	37/4.14	498.1	28.98	1372.1	146.93	0.0666	648
Rubus	61/3.50	586.9	31.5	1622	173.13	0.0567	714
Sorbus	61/3.71	659.4	33.39	1822.5	194.53	0.0505	764
Araucaria	61/4.14	821.1	37.26	2269.4	242.24	0.0406	868
Redwood	61/4.56	996.2	41.04	2753.2	293.88	0.0334	970

AAAC Conductor Specifications Standard China GB 9329

Conductor AAAC Características técnicas de GB9329
Nominal Area	Braiding Number Diameter	Calculated Area	Total Diameter	D,C. Resilience	Calculated breaking load	Calculated Weight	Continuous Load Capacity (A)
mm2	No. mm	mm2	mm	Ω/km	N	kg/km	70 ℃	80 ℃	90 ℃
35	7/2.52	35.3535	8.8800	1.1111	10.1010	96.9600
50	7/3.02	50.5050	9.9900	1.1111	14.1414	137.1370	159	191	218
70	7/3.57	70.7070	11.1111	0.0000	20.2020	192.1920	195	235	369
95	7/4.16	95.9595	12.1212	0.0000	27.2727	260.2600	234	285	328
120	19/2.84	120.1201	14.1414	0.0000	34.3434	331.3310	270	330	379
150	19/3.17	150.1502	16.1616	0.0000	42.4242	412.4120	308	378	436
185	19/3.52	185.1852	18.1818	0.0000	52.5252	508.5080	350	431	497
210	19/3.75	210.2102	19.1919	0.0000	59.5959	577.5770	377	466	539
240	19/4.01	240.2402	20.2020	0.0000	67.6767	660.6600	409	507	587
300	37/3.21	299.2993	22.2222	0.0000	84.8484	825.8250	466	581	675
400	37/3.71	400.4004	26.2626	0.0000	112.1121	1102.1102	553	695	810
500	37/4.15	500.5005	29.2929	0.0000	140.1401	1379.1379	631	798	933
630	61/3.63	631.6316	33.3333	0.0000	176.1762	1742.1742	721	919	1078
800	61/4.09	801.8018	37.3737	0.0000	224.2242	2212.2212	826	1061	1249
1000	61/4.57	1001.1001	41.4141	0.0000	279.2793	2761.2761	933	1209	1429

AAAC Conductor Standard Specifications DIN 48201

Conductor AAAC-DIN 48201 Parte 6
Nominal area		Cabling	Total diameter	Weight	Nominal resistance	Electrical resistance	Nominal current
Nominal	Theoretical	Cabling	Total diameter	Weight	Nominal resistance	Electrical resistance	Nominal current
mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	4.44	2.0742	78
25	24.25	7/2.10	6.3	66	6.77	1.3593	102
35	34.36	7/2.50	7.5	94	9.6	0.9591	126
50	49.48	7/3.00	9	135	13.82	0.666	158
50	48.35	19/1.80	9	133	13.5	0.6849	156
70	65.81	19/2.10	10.5	181	18.38	0.5032	189
95	93.27	19/2.50	12.5	256	26.05	0.3551	234
120	116.99	19/2.80	14	322	32.68	0.2831	269
150	147.11	37/2.25	15.8	406	41.09	0.2256	309
185	181.62	37/2.50	17.5	500	50.73	0.1828	352
240	242.54	61/2.25	20.3	670	67.74	0.1371	420
300	299.43	61/2.50	22.5	827	83.63	0.111	477
400	400.14	61/2.89	26	1104	111.76	0.0831	568
500	499.83	61/3.23	29.1	1379	139.6	0.0665	649
625*	626.2	91/2.96	32.6	1732	174.9	0.0531	742
800*	802.09	91/3.35	36.9	2218	224.02	0.0415	857
1000*	999.71	91/3.74	41.1	2767	279.22	0.0333	971

AAAC Conductor Specifications Standard IEC 61089

Conductor AAAC-IEC 61089
Code	Nominal Area	Cabling	Total Diameter	Weight	Nominal Resistance	Electrical Resistance	Nominal Current
	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	18.4	18.4	5.49	50.4	5.43	1.7896	86
25	28.8	28.8	6.87	78.7	8.49	1.1453	113
40	46	46	8.67	125.9	13.58	0.7158	151
63	72.5	72.5	10.89	198.3	21.39	0.4545	200
100	115	115	13.9	316.3	33.95	0.2877	266
125	144	144	15.5	395.4	42.44	0.2302	305
160	184	184	17.55	506.1	54.32	0.1798	355
200	230	230	19.65	632.7	67.91	0.1439	407
250	288	288	21.95	790.8	84.88	0.1151	466
315	363	363	24.71	998.9	106.95	0.0916	535
400	460	460	27.86	1268.4	135.81	0.0721	618
450	518	518	29.54	1426.9	152.79	0.0641	663
500	575	575	31.15	1585.5	169.76	0.0577	706
560	645	645	33.03	1778.4	190.14	0.0516	755
630	725	725	35.01	2000.7	213.9	0.0458	809
710	817	817	37.17	2254.8	241.07	0.0407	866
800	921	921	39.42	2540.6	271.62	0.0361	928
900*	1036	1036	41.91	2861.1	305.58	0.0321	992
1000*	1151	1151	44.11	3179	339.53	0.0289	1051
1120*	1289	1289	46.75	3560.5	380.27	0.0258	1118
1250*	1439	1439	49.39	3973.7	424.41	0.0231	1185
