Bare Aluminum Cable with Steel Core ACSR

ACSR cables consist of several aluminum and galvanized steel wires stranded in concentric layers. The wire(s) forming the core are galvanized steel, and the outer layer(s) are aluminum. The galvanized steel core typically consists of 1, 7, or 19 wires.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

What Is ACSR Cable?

ACSR (Aluminum Conductor Steel Reinforced) cable is a type of electrical cable typically used for overhead power transmission. ACSR cable consists of a central core of steel wires surrounded by aluminum wires. The steel core provides the strength needed for the cable to support its weight, while the aluminum wires are used to conduct electrical current.

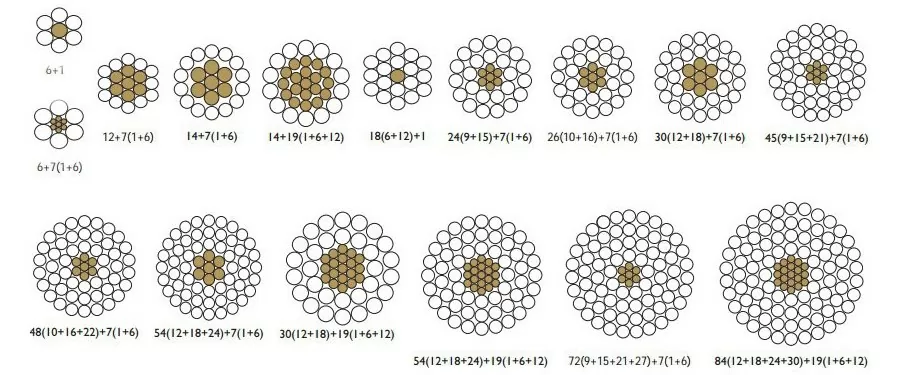

Construcción de cables ACSR

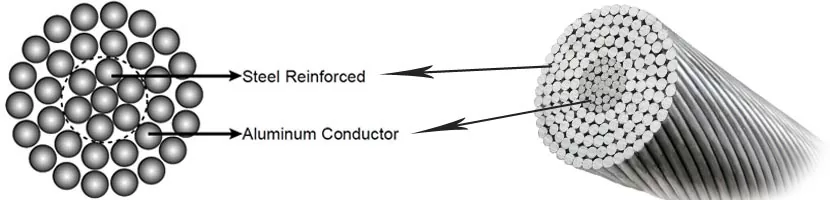

ACSR Cable Construction

Construcción de cables ACSR

By varying the relative proportions of aluminum and steel, the characteristics required for any particular application can be achieved. Higher U.T.S. can be achieved by increasing the steel content, and higher current-carrying capacity can be achieved by increasing the aluminum content.

SPECS

1. NOM-063-SCFI Electrical Products – Conductors – Safety Requirements.
2. NMX-J-058 Concentric Lay Stranded Aluminum Cable with Steel Core (ACSR). ASTM B-232
3. Concentric Lay Stranded Aluminum Conductors, Coated Steel Reinforced.

Application of ACSR Cable

ACSR cable is used as a bare overhead transmission conductor and as a primary and secondary distribution conductor and as a messenger support. ACSR cable offers optimal strength for line design. The variable stranding of the steel core allows for achieving the desired strength without sacrificing ampacity.

ACSR Cable Standard

BS EN 50182, IEC 61089, ASTM B 232/B 232M, AS 3607, GB/T 1179, BS 215-2, DIN48204

Specification

ACSR Conductor Standard Specifications ASTM B 232

Name Code	Nominal Area			No. & Wire Diameter		Approx. Total Diameter	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	Aluminum	Steel	Total	Aluminum	Steel	Approx. Total Diameter	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
Turkey	13.3	2.22	15.52	6/1.68	1/1.68	5.04	53.6	4.98	2.1499
Swan	21.18	3.53	24.71	6/2.12	1/2.12	6.36	85.3	7.83	1.3501
Swanate	21.12	5.35	26.47	7/1.96	1/2.61	6.53	99.6	9.79	1.3539
Sparrow	33.59	5.6	39.19	6/2.67	1/2.67	8.01	135.7	11.92	0.8512
Sparate	33.54	8.55	42.09	7/2.47	1/3.30	8.24	158.7	15.08	0.8525
Robin	42.41	7.07	49.48	6/3.00	1/3.00	9.00	171.1	14.86	0.6742
Raven	53.52	8.92	62.44	6/3.37	1/3.37	10.11	216.1	18.33	0.5343
Quail	67.33	11.22	78.55	6/3.78	1/3.78	11.34	272	22.46	0.4247
Pigeon	85.12	14.19	99.31	6/4.25	1/4.25	12.75	343	28.02	0.3359
Penguin	107.22	17.87	125.09	6/4.77	1/4.77	14.31	432.7	35.36	0.2667
Waxwing	134.98	7.5	142.48	18/3.09	1/3.09	15.45	430.2	29.80	0.2129
Partridge	134.87	21.99	156.86	26/2.57	7/2.00	16.28	545.9	47.15	0.2141
Ostrich	152.19	24.71	176.9	26/2.73	7/2.12	17.28	613.4	53.38	0.1897
Merlin	170.22	9.46	179.68	18/3.47	1/3.47	17.35	542.8	37.36	0.1688
Linnet	170.55	27.83	198.38	26/2.89	7/2.25	18.31	687.5	59.16	0.1693
Oriole	170.5	39.78	210.28	30/2.69	7/2.69	18.83	783.3	72.06	0.1698
Chickadee	200.93	11.16	212.09	18/3.77	1/3.77	18.85	641.3	43.15	0.1430
Brant	201.56	26.13	227.69	24/3.27	7/2.18	19.62	761	61.83	0.1433
Ibis	201.34	32.73	234.07	26/3.14	7/2.44	19.88	812.4	68.05	0.1434
Lark	200.9	46.88	247.78	30/2.92	7/2.92	20.44	925.2	84.07	0.1441
Pelican	242.31	13.46	255.77	18/4.14	1/4.14	20.70	769.7	51.15	0.1186
Flicker	241.58	31.4	272.98	24/3.58	7/2.39	21.49	913.5	72.06	0.1195
Hawk	241.65	39.19	280.84	26/3.44	7/2.67	21.77	975.1	81.84	0.1195
Hen	241.27	56.3	297.57	30/3.20	7/3.20	22.40	1110.6	98.30	0.1200
Osprey	282.47	15.69	298.16	18/4.47	1/4.47	22.35	897.7	59.60	0.1017
Parakeet	282.31	36.6	318.91	24/3.87	7/2.58	23.22	1065.6	83.18	0.1023
Dove	282.59	45.92	328.51	26/3.72	7/2.89	23.55	1138.6	94.30	0.1022
Eagle	282.07	65.82	347.89	30/3.46	7/3.46	24.22	1295.6	114.76	0.1026
Peacock	306.13	39.78	345.91	24/4.03	7/2.69	24.19	1158.9	90.74	0.0943
Squab	305.83	49.81	355.64	26/3.87	7/3.01	24.51	1237	101.41	0.0944
Wood Duck	307.06	71.65	378.71	30/3.61	7/3.61	25.27	1408.4	121.43	0.0943
Teal	307.06	69.62	376.68	30/3.61	19/2.16	25.24	1396.6	124.54	0.0943
Kingbird	323.01	17.95	340.96	18/4.78	1/4.78	23.90	1026.6	68.05	0.0890
Swift	323.02	8.97	331.99	36/3.38	1/3.38	23.66	956.5	60.05	0.0890
Rook	323.07	41.88	364.95	24/4.14	7/2.76	24.84	1217.5	95.19	0.0894
Grosbeak	321.84	52.49	374.33	26/3.97	7/3.09	25.15	1300.8	104.97	0.0897
Scoter	322.56	75.26	397.82	30/3.70	7/3.70	25.90	1480.7	127.66	0.0897
Egret	322.56	73.54	396.1	30/3.70	19/2.22	25.90	1469	130.77	0.0897
Flamingo	337.27	43.72	380.99	24/4.23	7/2.82	25.38	1276.6	99.64	0.0856
Gannet	338.26	54.9	393.16	26/4.07	7/3.16	25.76	1363.3	110.31	0.0854
Stilt	363.27	46.88	410.15	24/4.39	7/2.92	26.32	1370.4	107.20	0.0795
Starling	361.93	59.15	421.08	26/4.21	7/3.28	26.68	1463.7	118.32	0.0798
Redwing	362.06	82.41	444.47	30/3.92	19/2.35	27.43	1650.6	143.23	0.0799
Coot	401.86	11.16	413.02	36/3.77	1/3.77	26.39	1195.8	73.39	0.0715
Tern	403.77	27.83	431.6	45/3.38	7/2.25	27.03	1331.8	94.30	0.0715
Condor	402.33	52.15	454.48	54/3.08	7/3.08	27.72	1520.7	118.32	0.0718
Cuckoo	402.33	52.15	454.48	24/4.62	7/3.08	27.72	1522.2	117.43	0.0718
Drake	402.56	65.44	468	26/4.44	7/3.45	28.11	1626.4	131.66	0.0717
Mallard	403.84	91.78	495.62	30/4.14	19/2.48	28.96	1836	159.24	0.0717
Ruddy	455.5	31.67	487.17	45/3.59	7/2.40	28.74	1507.3	104.53	0.0634
Canary	456.28	59.15	515.43	54/3.28	7/3.28	29.52	1723.1	134.33	0.0633
Catbird	484.61	13.46	498.07	36/4.14	1/4.14	28.98	1434.4	86.74	0.0593
Rail	483.84	33.54	517.38	45/3.70	7/2.47	29.61	1598.1	110.76	0.0597
Cardinal	484.53	62.81	547.34	54/3.38	7/3.38	30.42	1825.9	142.34	0.0596
Tanager	522.79	14.52	537.31	36/4.30	1/4.30	30.10	1553.5	93.85	0.0550
Orotlan	523.87	36.31	560.18	45/3.85	7/2.57	30.81	1730.5	118.32	0.0551
Curlew	522.51	67.73	590.24	54/3.51	7/3.51	31.59	1977.6	153.90	0.0553
Bluejay	565.49	38.9	604.39	45/4.00	7/2.66	31.98	1866	127.66	0.0511
Finch	565.03	71.57	636.6	54/3.65	19/2.19	32.85	2127.8	164.58	0.0514
Bunting	605.76	41.88	647.64	45/4.14	7/2.76	33.12	1996.9	136.55	0.0477
Grackle	602.79	76.89	679.68	54/3.77	19/2.27	33.97	2278.1	176.59	0.0481
Skylark	646.02	17.95	663.97	36/4.78	1/4.78	33.46	1913.6	115.65	0.0445
Bittern	644.4	44.66	689.06	45/4.27	7/2.85	34.17	2130.8	145.89	0.0448
Pheasant	645.08	81.71	726.79	54/3.90	19/2.34	35.10	2431.4	183.26	0.0450
Dipper	684.24	47.2	731.44	45/4.40	7/2.93	35.19	2263.2	154.79	0.0422
Martin	685.39	86.67	772.06	54/4.02	19/2.41	36.17	2581.7	194.82	0.0423
Bobolink	725.27	50.14	775.41	45/4.53	7/3.02	36.24	2397.2	164.13	0.0398
Plover	726.92	91.78	818.7	54/4.14	19/2.48	37.24	2734.9	206.39	0.0399
Nuthatch	764.2	52.83	817.03	45/4.65	7/3.10	37.20	2529.6	171.25	0.0378
Parrot	766.06	97.03	863.09	54/4.25	19/2.55	38.25	2883.7	217.51	0.0379
Lapwing	807.53	55.6	863.13	45/4.78	7/3.18	38.22	2663.5	180.14	0.0358
Falcon	806.23	102.43	908.66	54/4.36	19/2.62	39.26	3038.5	229.52	0.0360
Chukar	903.18	73.54	976.72	84/3.70	19/2.22	40.70	3083.1	217.51	0.0321
Bluebird	1092.84	88.84	1181.68	84/4.07	19/2.44	44.76	3731.9	256.65	0.0266
Kiwi	1099.76	47.52	1147.28	72/4.41	7/2.94	44.10	3423.9	215.28	0.0264
Thrasher	1171.42	63.94	1235.36	76/4.43	19/2.07	45.79	3754.2	243.75	0.0248

ACSR Conductor Standard Specifications BS 215

Name Code	Nominal Area	No. & Wire Diameter		Approx. Total Diameter	Sectional Area			Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	Nominal Area	Aluminum	Steel	Approx. Total Diameter	Aluminum	Steel	Total	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	mm2	No./mm	No./mm	mm	mm2	mm2	mm2	kg/km	kN	Ω/km
Gopher	25	6/2.36	1/2.36	7.08	26.24	4.38	30.62	106	9.61	1.093
Weasel	30	6/2.59	1/2.59	7.77	31.61	5.27	36.88	128	11.45	0.9077
Ferret	40	6/3.00	1/3.00	9	42.41	7.07	49.48	172	15.2	0.6766
Rabbit	50	6/3.35	1/3.35	10.05	52.88	8.82	61.7	214	18.35	0.5426
Horse	70	12/2.79	7/2.79	13.95	73.37	42.83	116.2	538	61.2	0.3936
Dog	100	6/4.72	7/1.57	14.15	105.0	13.5	118.5	394	32.7	0.2733
Dingo	150	18/3.35	1/3.35	16.75	158.7	8.8	167.5	506	35.7	0.1815
Wolf	150	30/2.59	7/2.59	18.13	158.1	36.8	194.9	726	69.2	0.1828
Lynex	175	30/2.79	7/2.79	19.53	183.4	42.8	226.2	842	79.8	0.1576
Caracal	175	18/3.61	1/3.61	18.05	184.3	10.2	194.5	587	41.1	0.1563
Panther	200	30/3.00	7/3.00	21.00	212.1	49.4	261.5	974	92.25	0.1363
Jaguar	200	18/3.86	1/3.86	19.30	210.6	11.7	222.3	671	46.55	0.1367
Zebra	400	54/3.18	7/3.18	28.62	428.9	55.6	484.5	1621	131.9	0.0674

ACSR Conductor Standard Specifications BS EN 50182

Name Code	No. & Wire Diameter		Approx. Total Diameter	Sectional Area			Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	Aluminum	Steel	Approx. Total Diameter	Aluminum	Steel	Total	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	No./mm	No./mm	mm	mm2	mm2	mm2	kg/km	kN	Ω/km
Mole	6/1.50	1/1.50	4.50	10.6	1.77	12.4	42.8	4.14	2.7027
Squirrel	6/2.11	1/2.11	6.33	21.0	3.5	24.5	84.7	7.87	1.3659
Fox	6/2.79	1/2.79	8.37	36.7	6.11	42.8	148.1	13.21	0.7812
Mink	6/3.66	1/3.66	10.98	63.1	10.5	73.6	254.9	21.67	0.4540
Skunk	12/2.59	7/2.59	12.95	63.2	36.9	100.1	463.0	52.79	0.4568
Beaver	6/3.99	1/3.99	11.97	75.0	12.5	87.5	302.9	25.76	0.3820
Racoon	6/4.09	1/4.09	12.27	78.8	13.1	91.9	318.3	27.06	0.3635
Otter	6/4.22	1/4.22	12.66	83.9	14	97.9	338.8	28.81	0.3415
Cat	6/4.50	1/4.50	13.50	95.4	15.9	111.3	385.3	32.76	0.3003
Hare	6/4.72	1/4.72	14.16	105.0	17.5	122.5	423.8	36.04	0.2730
Coyote	26/2.54	7/1.91	15.89	131.7	20.1	151.8	520.7	45.86	0.2192
Cougar	18/3.05	1/3.05	15.25	131.5	7.31	138.8	418.8	29.74	0.2188
Tiger	30/2.36	7/2.36	16.52	131.2	30.6	161.8	602.2	57.87	0.2202
Lion	30/3.18	7/3.18	22.26	238.3	55.6	293.9	1093.4	100.47	0.1213
Bear	30/3.35	7/3.35	23.45	264.4	61.7	326.1	1213.4	111.50	0.1093
Goat	30/3.71	7/3.71	25.97	324.3	75.7	400.0	1488.2	135.13	0.0891
Sheep	30/3.99	7/3.99	27.93	375.1	87.5	462.6	1721.3	156.30	0.0771
Antelope	54/2.97	7/2.97	26.73	374.1	48.5	422.6	1413.8	118.88	0.0773
Bison	54/3.00	7/3.00	27.00	381.7	49.5	431.2	1442.5	121.30	0.0758
Deer	30/4.27	7/4.27	29.89	429.6	100.2	529.8	1971.4	179.00	0.0673
Elk	30/4.50	7/4.50	31.50	477.1	111.3	588.4	2189.5	198.80	0.0606
Camel	54/3.35	7/3.35	30.15	476.0	61.7	537.7	1798.8	146.40	0.0608
Moose	54/3.53	7/3.53	31.77	528.5	68.5	597.0	1997.3	159.92	0.0547

ACSR Conductor Standard Specifications DIN 48204

Nominal Sectional Area	Nominal Area			No. & Wire Diameter		Approx. Total Diameter	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	Aluminum	Steel	Total	Aluminum	Steel	Approx. Total Diameter	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
16/2.5	15.27	2.54	17.8	6/1.80	1/1.80	5.4	62	5.81	1.8793
25/4	23.86	3.98	27.8	6/2.25	1/2.25	6.8	97	9.02	1.2028
35/6	34.35	5.73	40.1	6/2.70	1/2.70	8.1	140	12.70	0.8353
44/32	43.98	31.67	75.7	14/2.00	7/2.40	11.2	373	45.46	0.6573
50/8	48.25	8.04	56.3	6/3.20	1/3.20	9.6	196	17.18	0.5946
50/30	51.17	29.85	81	12/2.33	7/2.33	11.7	378	44.28	0.5644
70/12	69.89	11.4	81.3	26/1.85	7/1.44	11.7	284	26.31	0.4130
95/15	94.39	15.33	109.7	26/2.15	7/1.67	13.6	383	35.17	0.3058
95/55	96.51	56.3	152.8	12/3.20	7/3.20	16.0	714	80.20	0.2992
105/75	105.67	75.55	181.2	14/3.10	19/2.25	17.5	899	106.69	0.2736
120/20	121.57	19.85	141.4	26/2.44	7/1.90	15.5	494	44.94	0.2374
120/70	122.15	71.25	193.4	12/3.60	7/3.60	18.0	904	98.16	0.2364
125/30	127.92	29.85	157.8	30/2.33	7/2.33	16.3	590	57.86	0.2259
150/25	148.86	24.25	173.1	26/2.70	7/2.10	17.1	604	54.37	0.1939
170/40	171.77	40.08	211.9	30/2.70	7/2.70	18.9	794	77.01	0.1682
185/30	183.78	29.85	213.6	26/3.00	7/2.33	19.0	744	66.28	0.1571
210/35	209.1	34.09	243.2	26/3.20	7/2.49	20.3	848	74.94	0.1380
210/50	212.06	49.48	261.5	30/3.00	7/3.00	21.0	979	92.25	0.1363
230/30	230.91	29.85	260.8	24/3.50	7/2.33	21.0	874	73.09	0.1249
240/40	243.05	39.49	282.5	26/3.45	7/2.68	21.8	985	86.46	0.1188
265/35	263.66	34.09	297.8	24/3.74	7/2.49	22.4	998	82.94	0.1094
300/50	304.26	49.48	353.7	26/3.86	7/3.00	24.5	1233	105.09	0.0949
305/40	304.62	39.49	344.1	54/2.68	7/2.68	24.1	1155	99.30	0.0949
340/30	339.29	29.85	369.1	48/3.00	7/2.33	25.0	1174	92.56	0.0851
380/50	381.7	49.48	431.2	54/3.00	7/3.00	27.0	1448	120.91	0.0757
385/35	386.04	34.09	420.1	48/3.20	7/2.49	26.7	1336	104.31	0.0748
435/55	434.29	56.3	490.6	54/3.20	7/3.20	28.8	1647	136.27	0.0666
450/40	448.71	39.49	488.2	48/3.45	7/2.68	28.7	1553	120.19	0.0644
490/65	490.28	63.55	553.8	54/3.40	7/3.40	30.6	1860	152.85	0.0590
495/35	494.4	34.1	528.5	45/3.74	7/2.49	29.9	1636	122.72	0.0584
510/45	510.5	45.3	555.8	48/3.68	7/2.87	30.7	1770	137.02	0.0566
550/70	549.65	71.25	620.9	54/3.60	7/3.60	32.4	2085	167.42	0.0526
560/50	561.7	49.48	611.2	48/3.86	7/3.00	32.2	1943	146.28	0.0514
570/40	571.2	39.5	610.7	45/4.02	7/2.68	32.2	1889	140.74	0.0506
650/45	653.5	45.3	698.8	45/4.30	7/2.87	34.4	2163	158.63	0.0442
680/85	678.58	85.95	764.5	54/4.00	19/2.40	36.0	2564	209.99	0.0426
1045/45	1045.6	45.3	1090.9	72/4.30	7/2.87	43.0	3249	222.23	0.0277

ACSR Conductor Specifications Standard IEC 61089

Name Code	Nominal Area			No. & Wire Diameter		Approx. Total Diameter	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	Aluminum	Steel	Total	Aluminum	Steel	Approx. Total Diameter	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
16	16	2.67	18.7	6/1.84	1/1.84	5.52	64.6	6.08	1.7934
25	25	4.17	29.2	6/2.30	1/2.30	6.9	100.9	9.13	1.1478
40	40	6.67	46.7	6/2.91	1/2.91	8.73	161.5	14.4	0.7174
63	63	10.5	73.5	6/3.66	1/3.66	10.98	254.4	21.63	0.4555
100	100	16.7	117	6/4.61	1/4.61	13.83	403.8	34.33	0.2869
125	125	6.94	132	18/2.97	1/2.97	14.85	397.9	29.17	0.2304
125	125	20.4	145	26/2.47	7/1.92	15.64	503.9	45.69	0.2310
160	160	8.89	169	18/3.36	1/3.36	16.8	509.3	36.18	0.1800
160	160	26.1	186	26/2.80	7/2.18	17.74	644.9	57.69	0.1805
200	200	11.1	211	18/3.76	1/3.76	18.8	636.7	44.22	0.1440
200	200	32.6	233	26/3.13	7/2.43	19.81	806.2	70.13	0.1444
250	250	24.6	275	22/3.80	7/2.11	21.53	880.6	68.72	0.1154
250	250	40.7	291	26/3.50	7/2.72	22.16	1007.7	87.67	0.1155
315	315	21.8	337	45/2.99	7/1.99	23.91	1039.6	79.03	0.0917
315	315	51.3	366	26/3.93	7/3.05	24.87	1269.7	106.83	0.0917
400	400	27.7	428	45/3.36	7/2.24	26.88	1320.1	98.36	0.0722
400	400	51.9	452	54/3.07	7/3.07	27.63	1510.3	123.04	0.0723
450	450	31.1	481	45/3.57	7/2.38	28.56	1485.2	107.47	0.0642
450	450	58.3	508	54/3.26	7/3.26	29.34	1699.1	138.42	0.0643
500	500	34.6	535	45/3.76	7/2.51	30.09	1650.2	119.41	0.0578
500	500	64.8	565	54/3.43	7/3.43	30.87	1887.9	153.8	0.0578
560	560	38.7	599	45/3.98	7/2.65	31.83	1848.2	133.74	0.0516
560	560	70.9	631	54/3.63	19/2.18	32.68	2103.4	172.59	0.0516
630	630	43.6	674	45/4.22	7/2.81	33.75	2079.2	150.45	0.0459
630	630	79.8	710	54/3.85	19/2.31	34.65	2366.3	191.77	0.0459
710	710	49.1	759	45/4.48	7/2.99	35.85	2343.2	169.56	0.0407
710	710	89.9	800	54/4.09	19/2.45	36.79	2666.8	216.12	0.0407
800	800	34.6	835	72/3.76	7/2.51	37.61	2480.2	167.41	0.0361
800	800	66.7	867	84/3.48	7/3.48	38.28	2732.7	205.33	0.0362
800	800	101	901	54/4.34	19/2.61	39.09	3004.9	243.52	0.0362
900	900	38.9	939	72/3.99	7/2.66	39.9	2790.2	188.33	0.0321
900	900	75	975	84/3.69	7/3.69	40.59	3074.2	226.5	0.0322
1000	1000	43.2	1043	72/4.21	7/2.80	42.08	3100.3	209.26	0.0289
1120	1120	47.3	1167	72/4.45	19/1.78	44.5	3464.9	234.53	0.0258
1120	1120	91.2	1211	84/4.12	19/2.47	45.31	3811.5	283.17	0.0258
1250	1250	102	1352	84/4.35	19/2.61	47.85	4253.9	316.04	0.0232
1250	1250	52.8	1303	72/4.70	19/1.88	47	3867.1	261.75	0.0231

Trusted Manufacturer

Based on high-quality products, a good reputation, and excellent service, we sincerely hope to establish mutually beneficial cooperation with domestic and foreign merchants and create a bright future together.

Our Clients

We are professional cable manufacturers. Thanks to the excellent quality of our cables and continuous product innovation, we export them to over 130 countries worldwide and have received numerous praises from our customers.

Our Workshop

HuaDong Cable Group was established in 1999 and covers an area of 66,000 square meters, located in the Xiuwu Industrial Zone of Jiaozuo City, China. We have 20 advanced production lines and 25 testing machines, with an annual production capacity of over 15 million kilometers.

Why choose Huadong cable?

Our vision is to become an internationally renowned brand in the cable industry. Customer satisfaction, employee advancement, and corporate development are our service principles; high standards, globalization, and building an international brand are our business philosophy.

Sobre HuaDong

Henan Huadong Cable Co., Ltd. was founded in 1999 and is a national high-tech enterprise integrating scientific research, industry, and trade. Huadong Cable is deeply involved in the construction of the Belt and Road Initiative and exports to over 130 countries worldwide, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.

Technology HuaDong

Huadong Cable focuses on technology research and development, employing 60 professionals with advanced professional degrees and holding over 100 patents and utility models. Huadong Cable employs a team of experienced technical engineers to ensure cable quality.

Main products

Our main products include marine cables, power cables, aerial cables, flame-resistant cables, low-smoke halogen-free cables, rubber cables, high-temperature cables, instrument and control cables, solar cables, and other products.
