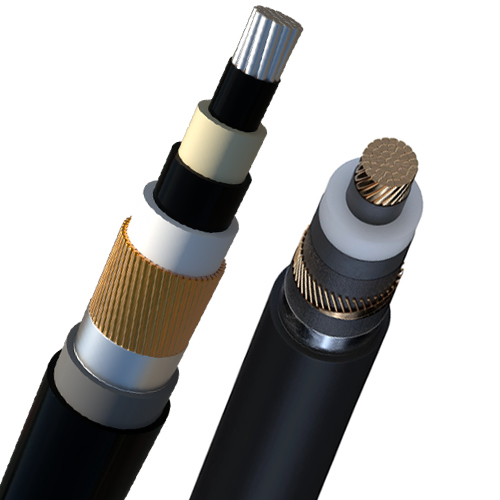

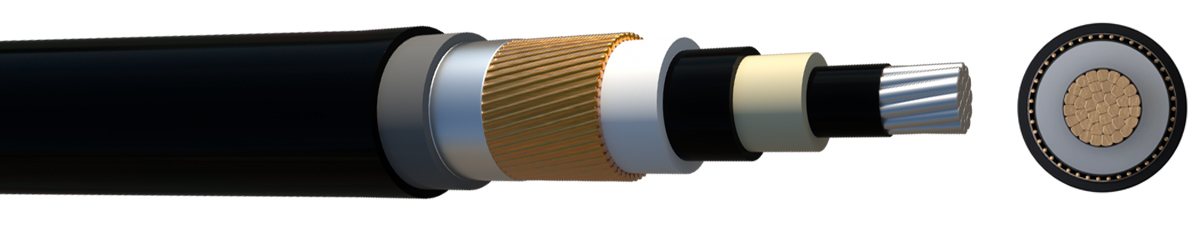

NA2XS(FL)2Y, N2XS(FL)2Y Cable, Tape Wrap+Longitudinally Hermetic Block Water

• Voltage classes: 6/10 (12) kV, 12/20 (24) kV, 18/30 (36) kV
• Conductor: Aluminum or copper conductor.
• Conductor insulation: Cross-linked polyethylene (XLPE).
• Screen: Copper conductor screen with one or two copper-conductive spirals. Longitudinally sealed tape wrapping. Metallic tape permanently bonded to the cover.
• Outer sheath: Black PE

Scope of use of NA2XS(FL)2Y, N2XS(FL)2Y medium voltage cable

As a power and control cable, in fixed installation for the following applications: In open air, in water, on land and indoors In cable ducts for power company and industrial distribution networks Also suitable for application conditions where, following mechanical damage, the ingress of water longitudinally and transversely must be prevented Buried without additional underground protection in accordance with HD 620/VDE 0276-620 – Part 10-C (point 4): normal minimum installation depth 0.6 m, under roads minimum 0.8 m

Product Features of NA2XS(F)2Y, N2XS(F)2Y Medium Voltage Cable

Suitable for intense mechanical stress during installation and operation thanks to the PE sheath. Current rating in accordance with 620/VDE 0276-620, Part 10-C, Table 7 (buried at an earth temperature of +20°C in accordance with HD 620/VDE 0276-620, Part 10-C, point 5) for underground routing and Table 8 (in air at an air temperature of +30°C in accordance with HD 620/VDE 0276-620, Part 10-C, point 5) when used outdoors; however, always taking into account any corrections/reductions in the current rating that may be necessary in accordance with VDE 0298-4 and VDE 0298-4 (see also appendix to catalog T12) for installation in and on buildings.
