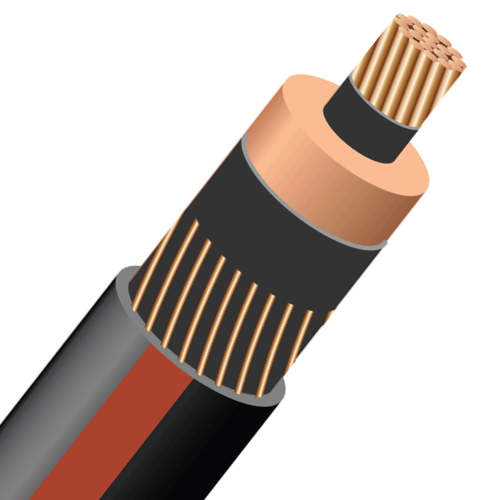

URD Monoconductor Cable, MV-105 and MV-90, 100% or 133% XLPE-TR or EPR Insulation, 5kV~35kV

Medium-voltage primary and distribution circuits for industrial, commercial, and power generating plants, supplying transformers, motors, and equipment.
Preferably used in urban networks.
EATs are suitable for applications where greater flexibility than XATs is required.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

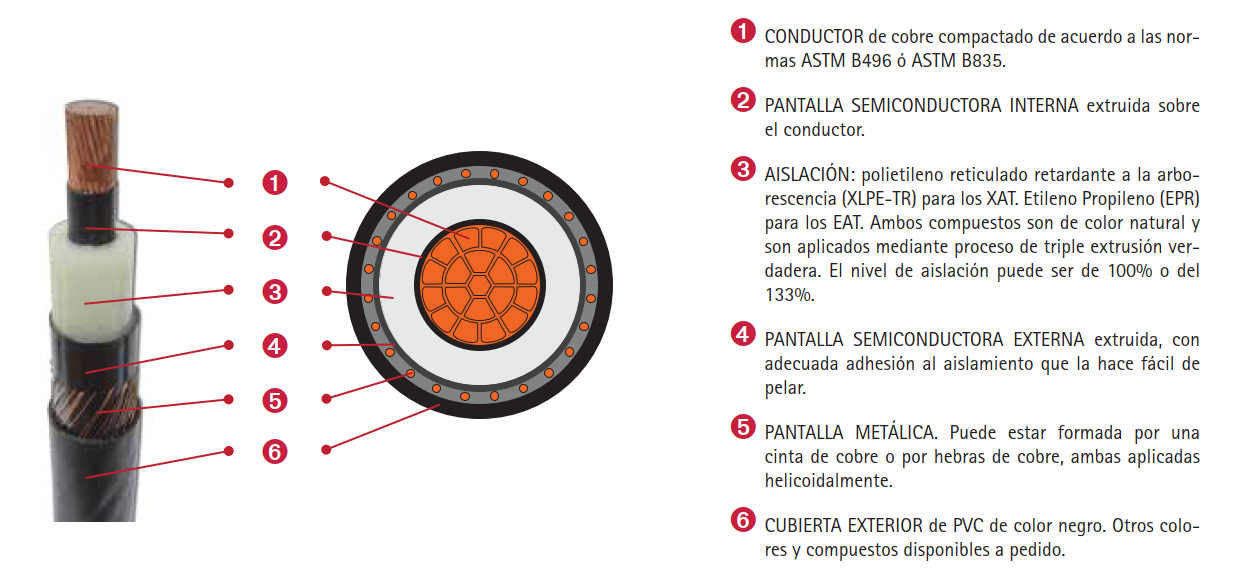

MT_EAT-EVA-MONOCONDUCTOR

APPLICATIONS AND USES

Medium-voltage primary and distribution circuits for industrial, commercial, and power generating plants, supplying transformers, motors, and equipment.
Preferably used in urban networks.
EATs are suitable for applications where greater flexibility than XATs is required.

OPERATING CHARACTERISTICS

Operating voltage: 5 kV, 8 kV, 15 kV, 25 kV, and 35 kV.
Maximum operating temperature: 90°C.
Emergency overload temperature: 130°C. Short-circuit temperature: 250°C.

Features:

Good tensile strength.
High impact and abrasion resistance.
Excellent resistance to sunlight and weathering.
Extremely high resistance to moisture, ozone, acids, alkalis, and other chemicals at normal temperatures.
Low dielectric constant, low loss factor, and high insulation resistance.
The sheath is flame-retardant.

Specification

Parameters of 8kV 100% and 133% XLPE and EPR

Conductor caliber	Nominal section	Conductor diameter approx.	Nominal insulation thickness	Total diameter approx.	Total weight approx.	Maximum resistance at 20 °C	Ability	Current capacity A
AWG/kcmil	mm2	mm	mm	mm	kg/km	Ω/km	uF/km	Buried duct 3 conductors temp. amb.20 °C	Directly buried 3 conductors ambient temp. 20 °C	Outdoor 3 triplexed cond. at ambient temp. 40 °C
4	21,2	5,5	3,56	19,7	572	0,846	0,17	115	170	130
2	33,6	6,9	3,56	21,2	720	0,531	0,19	155	210	170
1	42,4	7,7	3,56	22,0	817	0,423	0,20	175	240	195
1/0	53,5	8,7	3,56	23,8	991	0,335	0,22	200	275	225
2/0	67,4	9,7	3,56	24,8	1.143	0,266	0,24	230	310	260
3/0	85	10,9	3,56	26,2	1.34	0,211	0,26	260	355	300
4/0	107	12,2	3,56	27,6	1.574	0,167	0,28	295	405	345
250	127	13,2	3,56	28,6	1.774	0,141	0,30	325	440	380
350	177	15,5	3,56	31,0	2.289	0,101	0,34	390	535	470
500	253	18,6	3,56	34,8	3.089	0,0708	0,39	465	650	580
750	380	23,0	3,56	39,3	4.352	0,0472	0,46	565	805	730
1000	507	27,0	3,56	43,4	5.605	0,0354	0,52	640	930	850

Parameters of 15kV 100% and 133% XLPE and EPR

Conductor caliber	Nominal section	Conductor diameter approx.	Nominal insulation thickness	Total diameter approx.	Total weight approx.	Maximum resistance at 20 °C	Ability	Current capacity A
AWG/kcmil	mm2	mm	mm	mm	kg/km	Ω/km	uF/km	Buried duct 3 conductors temp. amb.20 °C	Directly buried 3 conductors ambient temp. 20 °C	Outdoor 3 triplexed cond. at ambient temp. 40 °C
2	33,6	6,9	5,59	26,1	957	0,531	0,14	155	210	170
1	42,4	7,7	5,59	26,9	1.06	0,423	0,15	175	240	195
1/0	53,5	8,7	5,59	28,0	1.193	0,335	0,16	200	275	225
2/0	67,4	9,7	5,59	29,0	1.351	0,266	0,17	230	310	260
3/0	85	10,9	5,59	30,4	1.557	0,211	0,19	260	355	300
4/0	107	12,2	5,59	31,8	1.803	0,167	0,20	295	405	345
250	127	13,2	5,59	33,2	2.038	0,141	0,21	325	440	380
350	177	15,5	5,59	35,5	2.567	0,101	0,24	390	535	470
500	253	18,6	5,59	39,0	3.361	0,0708	0,28	465	650	580
750	380	23,0	5,59	43,5	4.653	0,0472	0,32	565	805	730
1000	507	27,0	5,59	49,7	6.188	0,0354	0,37	640	930	850

Parameters of 25kV 100% and 133% XLPE and EPR

Conductor caliber	Nominal section	Conductor diameter approx.	Nominal insulation thickness	Total diameter approx.	Total weight approx.	Maximum resistance at 20 °C	Ability	Current capacity A
AWG/kcmil	mm2	mm	mm	mm	kg/km	Ω/km	uF/km	Buried duct 3 conductors temp. amb.20 °C	Directly buried 3 conductors ambient temp. 20 °C	Outdoor 3 triplexed cond. at ambient temp. 40 °C
1	42,4	7,7	8,13	32,6	1.377	0,423	0,12	175	240	195
1/0	53,5	8,7	8,13	33,6	1.519	0,335	0,13	200	275	225
2/0	67,4	9,7	8,13	34,6	1.686	0,266	0,14	230	310	260
3/0	85	10,9	8,13	36,0	1.905	0,211	0,15	260	355	300
4/0	107	12,2	8,13	37,5	2.16	0,167	0,16	295	405	345
250	127	13,2	8,13	38,4	2.374	0,141	0,17	325	440	380
350	177	15,5	8,13	40,8	2.923	0,101	0,18	390	535	470
500	253	18,6	8,13	45,9	3.945	0,0708	0,21	465	650	580
750	380	23,0	8,13	50,8	5.336	0,0472	0,24	565	805	730
1000	507	27,0	8,13	54,9	6.667	0,0354	0,27	640	930	850
