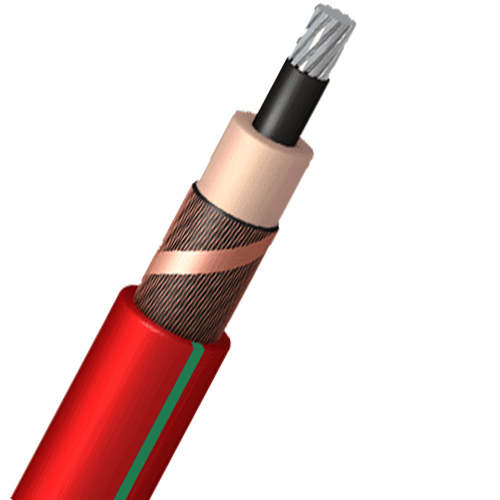

Characteristics of the X-VOLT HEPRZ1 (AS) AL cable
MEDIUM VOLTAGE: 12/20 kV and 18/30 kV.
Reference standard: UNE-HD 620-9E (type 9E-5) / NI 56.43.01
CPR Construction Product Regulation: Cca – s1b, d2, a1
Thermal characteristics:
Maximum conductor temperature: 105°C.
Maximum short-circuit temperature: 250°C (maximum 5 s).
Minimum operating temperature: -30°C
Screen: Internal semiconducting thermosetting semiconductor material applied to the conductor.
Insulation: High modulus ethylene propylene (HEPR), DIH-2 according to HD 620-1, cross-linked in a dry atmosphere catenary, using a triple extrusion process.
External semiconducting screen: Semiconducting material applied to the insulation. Peelable.
Metallic shield: Copper wire crown and copper counter-coil, with a minimum cross-section of 16 mm2.
Separator: Polyester tape.
Optional: Replace with water-blocking tape (type -OL cables).
(Additional layer): (Optional, depending on configurations).
Outer sheath: Flame-resistant, halogen-free polyolefin, type DMZ2 according to HD 620-1. Red with two green stripes.

Fire characteristics

Flame retardant: according to UNE-EN 60332-1 / IEC 60332-1.
Fire retardant: according to EN 50399.
Halogen-free: according to UNE-EN 60754-1 / IEC 60754-1.
Low smoke emission: according to UNE-EN 61034 / IEC 61034: Luminous transmittance > 60%.
Low corrosive gas emission according to UNE-EN 60754-2 / IEC 60754-2.
Reaction to fire: CPR, Cca – s1b, d2, a1 according to EN 50575.

Mechanical characteristics

Bend radius: 15 x outer diameter.
Abrasion resistance
Tear resistance
Chemical characteristics
UV resistance: UNE 211605.
Marking: meter by meter.

Specification

HEPRZ1 AL 12/20kV(24kV) Paramer

Section Al conductor / Cu shield	Nominal diameter over insulation (1)	Nominal outer diameter (1)	Weight (1)	Minimum radius of curvature	Maximum allowable intensity in air (2)	Maximum allowable intensity directly buried (2)	Maximum allowable intensity under buried pipe (2)	DC resistance at 20°C	DC resistance at 105°C	Reactance at 50 Hz	Ability
(mm2)	(mm)	(mm)	(kg/km)	(mm)	(A)	(A)	(A)	(Ω /km)	(Ω /km)	(Ω /km)	(µ F/km)
1X50/16 *	18,0	26,2	790	393	180	145	135	0,641	0,847	0,134	0,216
1X95/16	20,8	29,0	980	435	275	215	200	0,320	0,430	0,119	0,281
1X150/16 *	23,5	32,0	1205	480	360	275	255	0,206	0,277	0,112	0,329
1X240/16 *	27,6	36,1	1570	542	495	365	345	0,125	0,168	0,103	0,402
1X400/16 *	32,8	41,4	2115	621	660	470	450	0,0778	0,105	0,097	0,480
1X500/16	36,2	44,5	2625	668	775	540	515	0,0605	0,089	0,093	0,558
1X630/16 *	40,8	49,4	3075	741	905	615	590	0,0469	0,066	0,091	0,602

HEPRZ1 AL 18/30kV(36kV) Paramer

Section Al conductor / Cu shield	Nominal diameter over insulation (1)	Nominal outer diameter (1)	Weight (1)	Minimum radius of curvature	Maximum allowable intensity in air (2)	Maximum allowable intensity directly buried (2)	Maximum allowable intensity under buried pipe (2)	DC resistance at 20°C	DC resistance at 105°C	Reactance at 50 Hz	Ability
(mm2)	(mm)	(mm)	(kg/km)	(mm)	(A)	(A)	(A)	(Ω /km)	(Ω /km)	(Ω /km)	(µ F/km)
1X50/16 *	25,0	33,0	1205	495	180	145	135	0,641	0,847	0,155	0,147
1X95/16	25,6	33,9	1323	509	275	215	200	0,320	0,430	0,128	0,202
1X150/25 *	27,2	36,6	1520	549	360	275	255	0,206	0,277	0,120	0,247
1X240/25 *	31,4	40,6	1905	609	495	365	345	0,125	0,168	0,110	0,299
1X400/25 *	36,4	45,7	2480	686	660	470	450	0,0778	0,105	0,103	0,360
1X500/25	40,0	49,4	3000	741	775	540	515	0,0605	0,089	0,099	0,400
1X630/25 *	44,7	54,1	3525	812	905	615	590	0,0469	0,066	0,096	0,446
