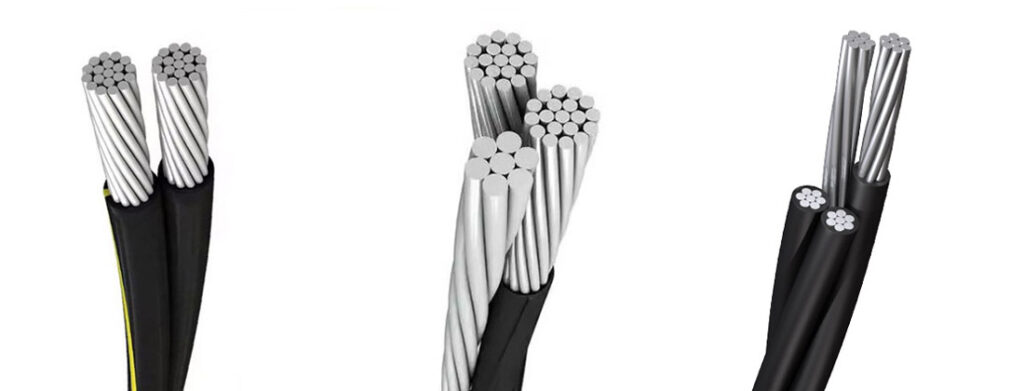

Service Drop Cable Application
Service drop cable is primarily used for service applications above 120 volts, such as street lighting, outdoor lighting, and temporary service for construction. It is intended for use with voltages of 600 volts phase-to-phase or less and with conductor temperatures not to exceed 75°C for polyethylene-insulated conductors or 90°C for cross-linked polyethylene (XLP)-insulated conductors.

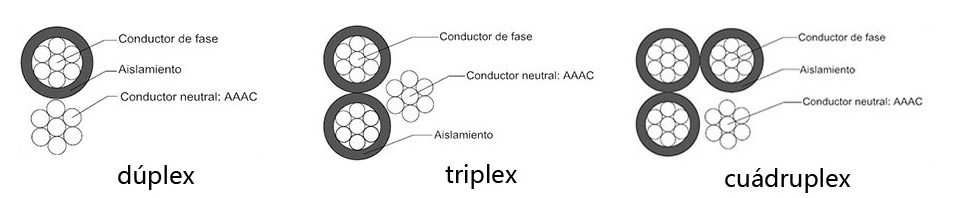

Service Drop Cable Construction
Service drop cable. Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with polyethylene or cross-linked polyethylene (XLP). Neutral messengers are concentrically stranded, 6201, AAC, or ACSR.
| Service Drop Cable Construction | |
| Phase conductor | Circular stranded aluminum conductor, rounded 1350 Conductor |
| Neutral (Messenger) | Bare AAC, AAAC 6201, ACSR |
| Isolation | Politileno (pe) de color negro o Politileno reticuldo (slippy) |
Service Drop Cable Standard
- Tano Cable’s duplex service drop cable meets or exceeds the following ASTM specifications:
- • B-230 Aluminum wire, 1350-H19 for electrical applications.
- • B-231 Concentric-Lay-Stranded aluminum conductors.
- • B-232 Concentric-Lay-Stranded aluminum conductors covered with steel reinforcement (ACSR).
- • B-399 Concentric-Lay-Stranded 6201-T81 aluminum alloy conductors.
- • B-901 Compressed round stranded aluminum conductors using a single entry cable.
Service Drop Cable Specifications
| Code Word | Phase Conductor | Naked Neutral Messenger | Weight per 1000 ft. (Ibs.) | Allowable Ampacities+ | ||||||
| Size | Balcony | Insulation Thickness | Size | Balcony | Nominal Strength | XLP | POLY | XLP | POLY | |
| (AWG) | (mils) | (kcmil) | (Ibs.) | |||||||
| Duplex service drop cable | ||||||||||
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 61 | 61 | 85 | 70 |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 64 | 64 | 85 | 70 |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 92 | 92 | 115 | 90 |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 96 | 96 | 115 | 90 |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 147 | 147 | 150 | 120 |
| Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 234 | 234 | 205 | 160 |
Triplex Service Drop Cable Specifications
| Code Word | Phase Conductor | Naked Neutral Messenger | Weight per 1000 ft. (Ibs.) | Allowable Ampacities+ | |||||||
| Talla | Balcony | Insulation Thickness | Equivalent Diameter | Size | Balcony | Nominal Strength | XLP | POLY | XLP | POLY | |
| (AWG) | (mils) | (AWG)++ | (kcmil) | (Ibs.) | |||||||
| Triplex service drop cable | |||||||||||
| Minex | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 101 | 101 | 85 | 70 |
| Hippie | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 107 | 107 | 85 | 70 |
| Prawn | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 152 | 152 | 115 | 90 |
| Barnacle | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 160 | 160 | 115 | 90 |
| Shrimp | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 243 | 243 | 150 | 120 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 123.3 | 7 | 4460 | 390 | 390 | 205 | 160 |
| Lead | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 384 | 384 | 205 | 160 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 155.4 | 7 | 5390 | 483 | 483 | 235 | 185 |
| Cyclops | 2/0 | 11 | 60 | 2/0 | 155.4 | 7 | 5390 | 474 | 474 | 235 | 185 |
| Whisper | 3/0 | 17 | 60 | 3/0 | 195.7 | 7 | 6790 | 587 | 587 | 275 | 215 |
| Release | 4/0 | 18 | 60 | 4/0 | 246.9 | 7 | 8560 | 728 | 728 | 315 | 245 |

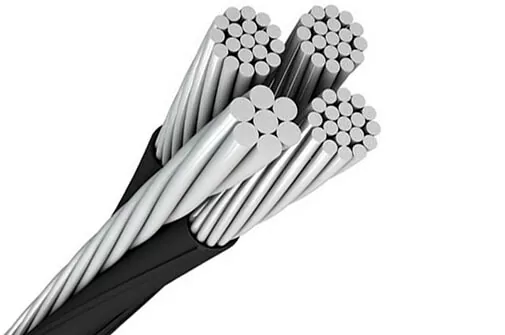

Quadruplex Service Drop Cable Specifications
| Code Word | Phase Conductor | Naked Neutral Messenger | Weight per 1000 ft. (Ibs.) | Allowable Ampacities+ | |||||||
| Talla | Balcony | Insulation Thickness | Equivalent Diameter | Size | Balcony | Nominal Strength | XLP | POLY | XLP | POLY | |
| (AWG) | (mils) | (AWG)++ | (kcmil) | (Ibs.) | |||||||
| Quadruplex service drop cable | |||||||||||
| Bay | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 137 | 137 | 75 | 60 |
| French Coach | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 146 | 146 | 75 | 60 |
| German Coach | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 205 | 205 | 100 | 80 |
| Arabian | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 217 | 217 | 100 | 80 |
| Belgian | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 328 | 328 | 135 | 105 |
| Shetland | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 519 | 519 | 180 | 140 |
| Thoroughbred | 2/0 | 11 | 60 | 2/0 | 155.4 | 7 | 5390 | 639 | 639 | 205 | 160 |
| Trotter | 3/0 | 17 | 60 | 3/0 | 195.7 | 7 | 6790 | 789 | 789 | 235 | 185 |
| Walking | 4/0 | 18 | 60 | 4/0 | 246.9 | 7 | 8560 | 977 | 977 | 275 | 210 |
