Home-Insulated Overhead Cable-IRAM 2263 Pre-assembled Aluminum Cable

IRAM 2263 Pre-assembled Aluminum Cable

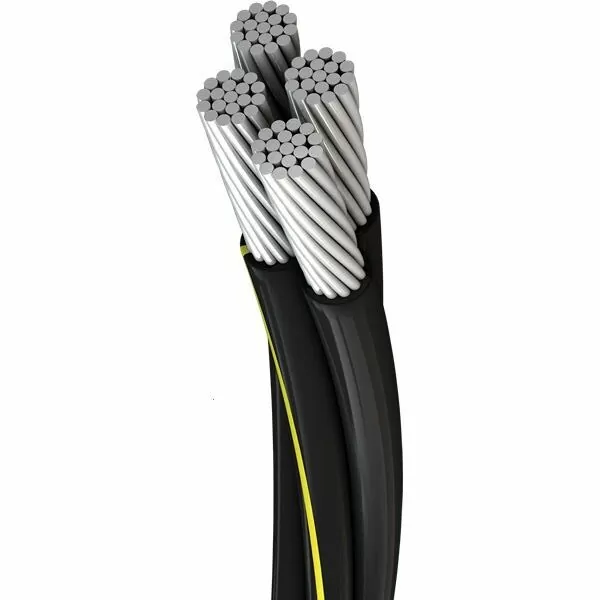

Pre-assembled cables are constructed by joining one, two, or three insulated phase conductors around one insulated neutral conductor. Pre-assembled cables have excellent electrical and mechanical properties. This type of self-supporting cable provides a reliable and secure supply of electricity. These insulated aluminum cables are easy to lay and maintain. Therefore, they are commonly used in a wide range of applications requiring electricity transmission.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description of the pre-assembled cables

Aluminum cable with 6201-T81 alloy in the neutral and 1350-H19 aluminum phases, all covered with 90°C cross-linked polyethylene (XLPE). Highly weather-resistant and UV-protected, it is suitable for working at a maximum operating temperature of 90°C under normal conditions. It can be duplex, triplex, or quadruplex. The XLPE insulation is resistant to moisture and light, suitable for outdoor use, making it ideal for outdoor work.

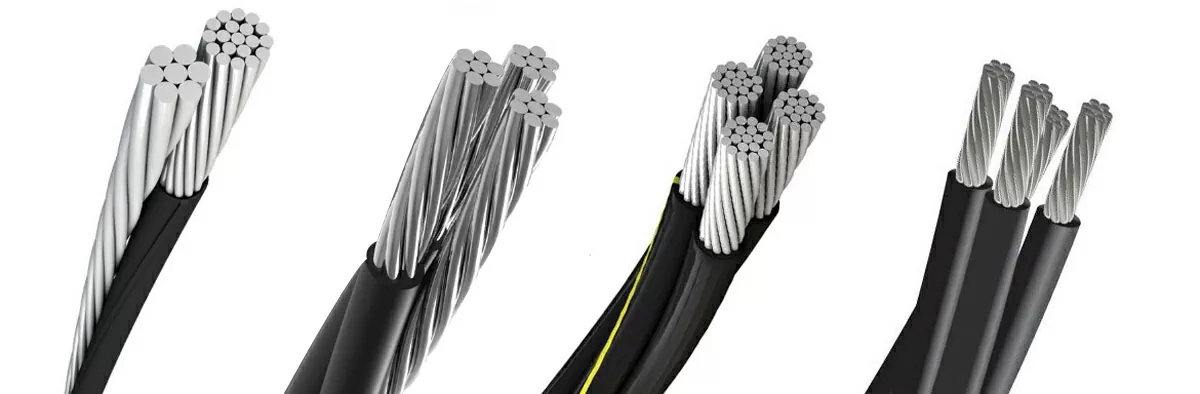

Cables preensamblado

Construction of pre-assembled cables

Service Voltage	0,6/1.1 kV
Phase conductor	Electrical grade 1350 aluminum (AAC) in the active conductors.
Isolation	PE (Thermoplastic Polyethylene) for 10 mm2 sections. XLPE (Cross-linked Polyethylene) for sections of 16 mm2 or more.
Conductor neutral	Conductor made of aluminum strands for neutral conductor cross-sections of 10 to 35 mm2. Conductor made of aluminum alloy strands for neutral conductor cross-sections of 50 mm2.
Conductor de lightening	The conductors will be made of H68 aluminum and compacted circular braids.
Cabling	The cables must be wired in the left hand direction(S).

Regulations

IRAM 2263, NF 33-209/91, NBR, ICEA or others upon request

Applications of Pre-assembled Cables

Pre-assembled cables are used in distribution circuits and residential service connections. They have an advantage over bare cables because they can be installed in wooded areas and in premises with limited physical space. Because they are insulated, they provide greater reliability to the electrical system, preventing disconnections due to short circuits.

Specification

MECHANICAL CHARACTERISTICS (IRAM)

Cable formations	Permissible current intensity	Electrical resistance at 60°C and 50 Hz	Electrical resistance at 90°C and 50 Hz	Average inductive resistance per phase at 50 Hz	Voltage drop at 60°C and cos j = 0.8.-5	Voltage drop at 90°C and cos j = 0.8.
N° x mm2	A	ohm/km	ohm/km	ohm/km	ohm/km	V / A km
1 x 16/16 (1)	85	2,327	2,558	0,070	3,81	4,18
1 x 25/25 (1)	115	1,458	1,602	0,068	2,41	2,64
1 x 35/35 (1)	141	1,059	1,164	0,068	1,78	1,94
1 x 50/50 (1)	174	0,739	0,834	0,065	1,26	1,41
3 x 1 x 16/16 (1)	60	2,218	2,449	0,089	3,12	3,49
3 x 1 x 25/50 (1)	82	1,394	1,539	0,088	2,02	2,22
3 x 1 x 35/50 (1)	103	1,008	1,113	0,088	1,049	1,63
3 x 1 x 50/50 (1)	124	0,745	0,822	0,086	1,12	1,23
3 x 1 x 70/50 (1)	160	0,515	0,569	0,085	0,80	0,88
3 x 1 x 95/50 (1)	200	0,373	0,411	0,084	0,60	0,66
3 x 1 x 120/70 (1)	232	0,295	0,325	0,083	0,50	0,54
3 x 1 x 150/70 (1)	268	0,241	0,266	0,082	0,42	0,45
3 x 1 x 185/70 (1)	311	0,192	0,212	0,081	0,35	0,38
3 x 1 x 185/95 (1)	311	0,192	0,212	0,081	0,35	0,38
3 x 1 x 25/50 (2)	82	1,394	1,539	0,088	2,02	2,22
3 x 1 x 35/50 (2)	103	1,008	1,113	0,088	1,049	1,63
3 x 1 x 50/50 (2)	124	0,745	0,822	0,086	1,12	1,23
3 x 1 x 70/50 (2)	160	0,515	0,569	0,085	0,80	0,88
3 x 1 x 95/50 (2)	200	0,373	0,411	0,084	0,60	0,66
3 x 1 x 120/70 (2)	232	0,295	0,325	0,083	0,50	0,54
3 x 1 x 150/70 (2)	268	0,241	0,266	0,082	0,42	0,45
3 x 1 x 185/70 (2)	311	0,192	0,212	0,081	0,35	0,38
3 x 1 x 185/95 (2)	311	0,192	0,212	0,081	0,35	0,38
3 x 1 x 25/50 (3)	82	1,394	1,539	0,088	2,02	2,22
3 x 1 x 35/50 (3)	103	1,008	1,113	0,088	1,049	1,63
