OVERVIEW

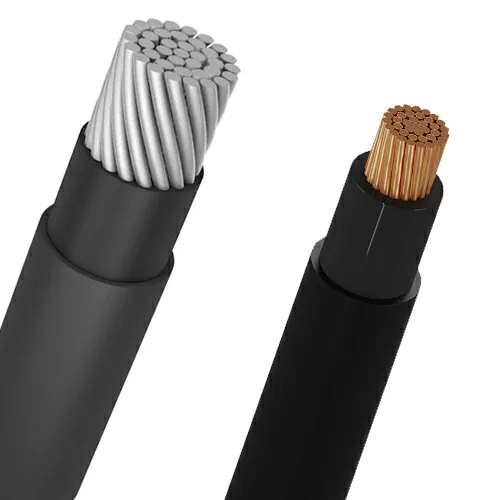

Single conductor cable of copper, aluminum (AAC) or aluminum with steel core (ACSR), with extruded semiconductor shield over the conductor and black cross-linked polyethylene (XLPE) insulation-sheath.
SPECS
CFE E0000-29 Semi-insulated cables for overhead lines from 15 to 38 kV. LFC GDD-035 Semi-insulated cables 23.
Note: The LFC specification only covers certain sizes for 25 kV. For more information, please contact our Engineering Department.
MAIN APPLICATIONS
Semi-insulated cables are used in medium-voltage overhead power distribution systems through wooded areas.
FEATURES
- Maximum operating voltage: 15,000, 25,000, and 35,000 V. Maximum operating temperature: 90°C.
- Copper conductors are hard-tempered.
- Aluminum conductors are made of hard-tempered 1350 alloy (H19).
- ACSR conductors are made of hard-tempered 1350 aluminum alloy (H19) with a steel core.
- Black insulation-sheath makes them resistant to sunlight.
- Since these cables do not have an insulating shield, they are considered uninsulated and must be subject to the same care and precautions as uninsulated cables.
ADVANTAGES
Its cross-linked polyethylene (XLPE) insulation jacket helps it resist abrasion from tree branches. Resistant to sunlight.
Specification
Parameters of 15kV Semi-Insulated Cable
| Semi-insulated cable 15kV | ||||||
| Designation | Nominal cross-sectional area | Number of threads | Nominal thickness of insulation | Approximate outer diameter | Approximate total weight | Current carrying capacity* |
| AWG/kcmil | mm2 | mm | mm | kg/100 m | Ampere | |
| Copper Conductor | ||||||
| 1/0 | 53,48 | 7 | 2,5 | 15,7 | 61 | 260 |
| 3/0 | 85,01 | 7 | 3,0 | 19,3 | 96 | 345 |
| Aluminum Conductor (AAC) | ||||||
| 1/0 | 53,48 | 7 | 2,5 | 15,7 | 26 | 200 |
| 3/0 | 85,01 | 7 | 3,0 | 19,3 | 40 | 270 |
| 266,8 | 135,2 | 19 | 3,0 | 22,7 | 58 | 345 |
| 336,4 | 170,5 | 19 | 3,0 | 24,6 | 70 | 395 |
| Aluminum Conductor (ACSR) | ||||||
| 1/0 | 53,48 | 6/1 | 2,5 | 16,3 | 34 | 496 |
| 3/0 | 85,01 | 6/1 | 3,0 | 20,1 | 52 | 260 |
| 266,8 | 135,2 | 7/26 | 3,0 | 23,1 | 77 | 345 |
| 336,4 | 170,5 | 7/26 | 3,0 | 25,1 | 94 | 395 |
Parameters of 25kV Semi-Insulated Cable
| Semi-insulated cable 25kV | ||||||
| Designation | Nominal cross-sectional area | Number of threads | Nominal thickness of insulation | Approximate outer diameter | Approximate total weight | Current carrying capacity* |
| AWG/kcmil | mm2 | mm | mm | kg/100 m | Ampere | |
| Copper Conductor | ||||||
| 1/0 | 53,48 | 7 | 4,0 | 18,8 | 69 | 260 |
| 3/0 | 85,01 | 7 | 4,0 | 21,3 | 102 | 345 |
| Aluminum Conductor (AAC) | ||||||
| 1/0 | 53,48 | 7 | 4,0 | 18,8 | 34 | 200 |
| 3/0 | 85,01 | 7 | 4,0 | 21,3 | 46 | 270 |
| 266,8 | 135,2 | 19 | 4,0 | 24,8 | 65 | 345 |
| 336,4 | 170,5 | 19 | 4,0 | 26,7 | 78 | 395 |
| Aluminum Conductor (ACSR) | ||||||
| 1/0 | 53,48 | 6/1 | 4,0 | 19,4 | 42 | 195 |
| 3/0 | 85,01 | 6/1 | 4,0 | 22,2 | 58 | 260 |
| 266,8 | 135,2 | 7/26 | 4,0 | 25,2 | 84 | 345 |
| 336,4 | 170,5 | 7/26 | 4,0 | 27,2 | 101 | 395 |
Parameters of 35kV Semi-Insulated Cable
| Semi-insulated cable 35kV | ||||||
| Designation | Nominal cross-sectional area | Number of threads | Nominal thickness of insulation | Approximate outer diameter | Approximate total weight | Current carrying capacity* |
| AWG/kcmil | mm2 | mm | mm | kg/100 m | Ampere | |
| Copper Conductor | ||||||
| 1/0 | 53,48 | 7 | 2,5 | 15,7 | 61 | 260 |
| 3/0 | 85,01 | 7 | 3,0 | 19,3 | 96 | 345 |
| Aluminum Conductor (AAC) | ||||||
| 1/0 | 53,48 | 7 | 2,5 | 15,7 | 26 | 200 |
| 3/0 | 85,01 | 7 | 3,0 | 19,3 | 40 | 270 |
| 266,8 | 135,2 | 19 | 3,0 | 22,7 | 58 | 345 |
| 336,4 | 170,5 | 19 | 3,0 | 24,6 | 70 | 395 |
| Aluminum Conductor (ACSR) | ||||||
| 1/0 | 53,48 | 6/1 | 2,5 | 16,3 | 34 | 496 |
| 3/0 | 85,01 | 6/1 | 3,0 | 20,1 | 52 | 260 |
| 266,8 | 135,2 | 7/26 | 3,0 | 23,1 | 77 | 345 |
| 336,4 | 170,5 | 7/26 | 3,0 | 25,1 | 94 | 395 |
