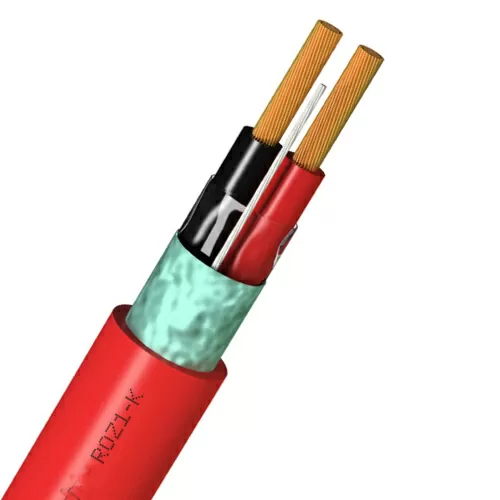

300/500V SOZ1-K/Z1OZ1-K/ROZ1-K (AS) Instrumentation Cables
They are used for connecting measuring, control, and signaling instruments, especially in locations requiring special fire and electromagnetic protection. The general shield protects the pair’s signal from interference external to the cable. Widely used in industrial plants, public places, and areas requiring a high level of fire safety.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses
CONSTRUCTION of SOZ1-K/Z1OZ1-K / ROZ1-K (AS) Instrumentation Cables
- Conductor: Flexible copper class 5, according to UNE EN 60228 IEC 60228.
- Insulation: Halogen-free polyolefin Z1 (Z1OZ1) or cross-linked polyethylene XLPE (ROZ1).
- Identification:
- Pairs: numbered blue and black. Triplets: numbered blue, red, and black.
- Can be supplied in other color combinations.
- Wiring: In pairs or triplets and general wiring.
- Collective shield: Aluminum/polyester tape with tinned copper drain wire with 100% coverage and 25% overlap.
- Outer sheath: Special halogen-free polyolefin compound. Color: Black, blue, gray, or green (according to specification).
VARIANTS ON REQUEST of Z1OZ1-K / ROZ1-K (AS) Instrumentation Cables
- • The conductor can be supplied in Class 2.
- • The insulation can be Z1 polyolefin or XLPE cross-linked polyethylene.
- • The color coding of pairs and triplets can be adapted to the required specification.
- • The cables can meet Euroclass CPR Cca-s1b, d1, or a1.
- • The sheath color can be adapted to the requested specification.
APPLICATIONS of SOZ1-K/Z1OZ1-K/ROZ1-K (AS) Instrumentation Cables
They are used for connecting measuring, control, and signaling instruments, especially in locations requiring special fire and electromagnetic protection. The general shield protects the pair’s signal from interference external to the cable. Widely used in industrial plants, public places, and areas requiring a high level of fire safety.
Specification
SOZ1-K/Z1OZ1-K ROZ1-K (AS) Paramer
| 0.5mm Z1OZ1-K / ROZ1-K (AS) 300/500V | ||||
| Number of pairs/triples per section | Nominal outside diameter (1) | Nominal weight (1) | Minimum radius of curvature (1) | Conductor resistance at 20 ºC |
| mm2 | mm | kg/km | mm | Ωkm |
| 1x2x0,5 | 6,4 | 62 | 65 | 36,0 |
| 2x2x0,5 | 9,1 | 100 | 95 | 36,0 |
| 3x2x0,5 | 9,7 | 109 | 100 | 36,0 |
| 4x2x0,5 | 10,2 | 134 | 105 | 36,0 |
| 5x2x0,5 | 11,3 | 159 | 115 | 36,0 |
| 6x2x0,5 | 12,7 | 193 | 130 | 36,0 |
| 10x2x0,5 | 15,4 | 285 | 155 | 36,0 |
| 12x2x0,5 | 17,0 | 332 | 150 | 36,0 |
| 16x2x0,5 | 19,4 | 423 | 195 | 36,0 |
| 19x2x0,5 | 20,8 | 482 | 210 | 36,0 |
| 24x2x0,5 | 23,2 | 596 | 235 | 36,0 |
| 1x3x0,5 | 6,9 | 73 | 70 | 36,0 |
| 2x3x0,5 | 10,0 | 124 | 100 | 36,0 |
| 3x3x0,5 | 10,6 | 148 | 110 | 36,0 |
| 6x3x0,5 | 14,4 | 253 | 145 | 36,0 |
| 12x3x0,5 | 19,0 | 441 | 190 | 36,0 |
SOZ1-K/Z1OZ1-K ROZ1-K (AS）Paramer
| 1mm Z1OZ1-K / ROZ1-K (AS) 300/500V | ||||
| Number of pairs/triples per section | Nominal outside diameter (1) | Nominal weight (1) | Minimum radius of curvature (1) | Conductor resistance at 20 ºC |
| 1x2x1 | 6,8 | 76 | 70 | 19,5 |
| 2x2x1 | 10,6 | 142 | 110 | 19,5 |
| 3x2x1 | 11,2 | 152 | 115 | 19,5 |
| 4x2x1 | 12,4 | 208 | 125 | 19,5 |
| 5x2x1 | 13,6 | 243 | 140 | 19,5 |
| 6x2x1 | 14,7 | 268 | 150 | 19,5 |
| 10x2x1 | 17,9 | 420 | 180 | 19,5 |
| 12x2x1 | 19,9 | 491 | 200 | 19,5 |
| 16x2x1 | 22,7 | 632 | 230 | 19,5 |
| 19x2x1 | 24,7 | 738 | 250 | 19,5 |
| 24x2x1 | 27,5 | 915 | 275 | 19,5 |
| 1x3x1 | 7,2 | 88 | 75 | 19,5 |
| 2x3x1 | 11,5 | 173 | 115 | 19,5 |
| 3x3x1 | 12,4 | 219 | 125 | 19,5 |
| 6x3x1 | 17,1 | 381 | 175 | 19,5 |
| 12x3x1 | 22,5 | 679 | 225 | 19,5 |
1.5mm SOZ1-K/Z1OZ1-K ROZ1-K (AS) Paramer
| 1.5mm Z1OZ1-K / ROZ1-K (AS) 300/500V | ||||
| Number of pairs/triples per section | Nominal outside diameter (1) | Nominal weight (1) | Minimum radius of curvature (1) | Conductor resistance at 20 ºC |
| 1x2x1,5 | 7,8 | 88 | 80 | 13,3 |
| 2x2x1,5 | 11,3 | 168 | 115 | 13,3 |
| 3x2x1,5 | 12,1 | 186 | 125 | 13,3 |
| 4x2x1,5 | 13,3 | 249 | 135 | 13,3 |
| 5x2x1,5 | 14,5 | 293 | 145 | 13,3 |
| 6x2x1,5 | 15,8 | 338 | 160 | 13,3 |
| 10x2x1,5 | 19,2 | 515 | 195 | 13,3 |
| 12x2x1,5 | 21,6 | 615 | 220 | 13,3 |
| 16x2x1,5 | 24,4 | 781 | 245 | 13,3 |
| 19x2x1,5 | 26,5 | 914 | 265 | 13,3 |
| 24x2x1,5 | 29,5 | 1.135 | 295 | 13,3 |
| 1x3x1,5 | 8,2 | 116 | 80 | 13,3 |
| 2x3x1,5 | 12,5 | 211 | 125 | 13,3 |
| 3x3x1,5 | 13,3 | 265 | 15 | 13,3 |
| 6x3x1,5 | 18,2 | 466 | 185 | 13,3 |
| 12x3x1,5 | 24,4 | 854 | 245 | 13,3 |
