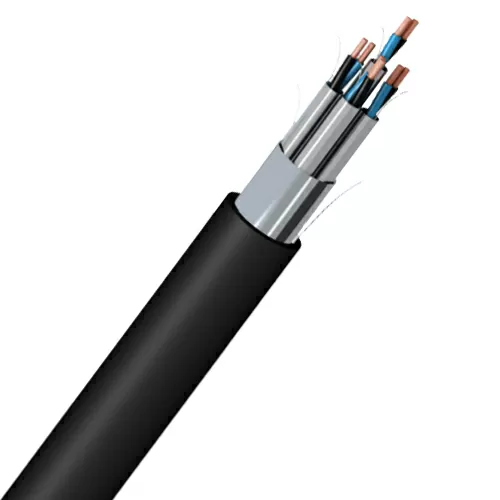

VHOV-K (PAR-POS) & VOV-K (POS) 300/500 V instrumentation cables

HVO-K & VOV-K is a flexible, shielded instrumentation cable for transmitting signals between equipment in industrial installations. Its shielding of the whole (VOV-K) and of the pair and whole (VHOV-K) makes it especially suitable for use in environments with a high level of electromagnetic interference.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

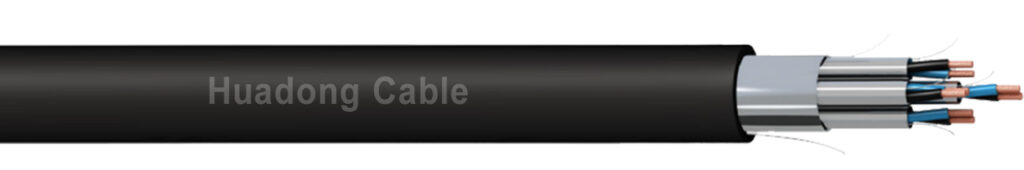

2.instrumentacion-cable-VHOV

Construction of VHOV-K (PAR-POS) & VOV-K (POS)

Nominal voltage: Low voltage 300/500 V.
Conductor: Electrolytic copper, class 5 (flexible) according to UNE-EN 60228 and IEC 60228.
Insulation: Flexible PVC.
The standard identification of insulated conductors is as follows: 2 x each numbered unit (black + blue). Other colors available upon request.
Wiring: Conductors stranded in pairs.
Individual shield: Individual shield (per pair) consisting of an aluminum/polyester tape with 100% coverage + tinned copper drain wire.
Pair arrangement: Wired in concentric layers.
Overall shield: Aluminum/polyester tape with 100% coverage. Plus tinned copper drain wire.
Sheath: Flexible PVC, black. The ripcord facilitates stripping the sheath.

VHOV-K (PAR-POS) & VOV-K (POS) thermal characteristics

Maximum conductor temperature: 70°C.
Maximum short-circuit temperature: 160°C (maximum 5 s).
Minimum operating temperature: -30°C (static with protection).

APPLICATIONS of VHOV-K (PAR-POS) & VOV-K (POS)

Specification

VOV-K cable Paramer

Section	Diametro ext (mm)	Weight (kg/km)	Resistance (Ohm/km)	Capacity between cond. (F/km)
Section	Diametro ext (mm)	Weight (kg/km)	Resistance (Ohm/km)	Capacity between cond. (F/km)
1 x 2 x 0,75	5,7	45	26,0	0,601
2 x 2 x 0,75	8,0	65	26,0	0,601
4 x 2 x 0,75	9,4	115	26,0	0,601
1 x 3 x 0,75	6,3	55	26,0	0,601
2 x 2 x 1	8,6	90	19,5	0,641
4 x 2 x 1	9,8	140	19,5	0,641
10 x 2 x 1	15,0	335	19,5	0,641
1 x 2 x 1,5	6,8	65	13,3	0,661
2 x 2 x 1,5	10,0	125	13,3	0,661
4 x 2 x 1,5	11,9	200	13,3	0,661
8 x 2 x 1,5	15,5	365	13,3	0,661
10 x 2 x 1,5	18,4	455	13,3	0,661
12 x 2 x 1,5	19,0	520	13,3	0,661
1 x 3 x 1,5	7,1	85	13,3	0,661

VHOV-K cable Paramer

Section	Diametro ext (mm)	Weight (kg/km)	Resistance (Ohm/km)	Capacity between cond. (F/km)
Section	Diametro ext (mm)	Weight (kg/km)	Resistance (Ohm/km)	Capacity between cond. (F/km)
2 x 2 x 0,75	8,8	90	26,0	0,601
4 x 2 x 0,75	10,4	145	26,0	0,601
8 x 2 x 0,75	13,6	260	26,0	0,601
12 x 2 x 0,75	16,6	370	26,0	0,601
16 x 2 x 0,75	17,9	470	26,0	0,641
2 x 2 x 1	9,4	105	19,5	0,641
3 x 2 x 1	9,7	130	19,5	0,641
4 x 2 x 1	10,8	165	19,5	0,641
10 x 2 x 1	16,4	370	19,5	0,661
2 x 2 x 1,5	10,3	140	13,3	0,661
3 x 2 x 1,5	11,2	180	13,3	0,661
4 x 2 x 1,5	13,0	225	13,3	0,661
8 x 2 x 1,5	17,0	415	13,3	0,661
10 x 2 x 1,5	20,2	510	13,3	0,661
12 x 2 x 1,5	21,1	600	13,3	0,661
