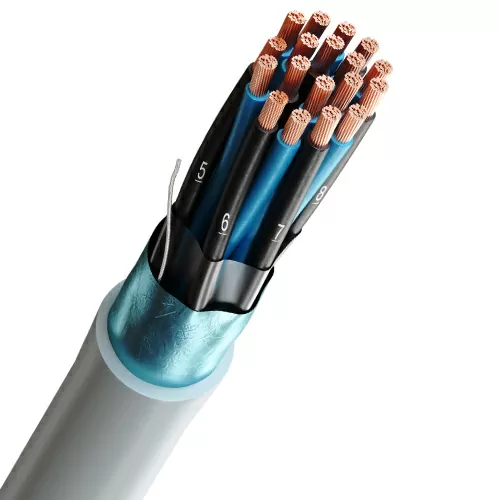

Shielded Multi-pair and Multi-strand Instrumentation Cable – 300V – PLTC – Halogen-Free (LSZH-HFFR)
Electronic instrumentation circuits Use: in closed environments with access to a large number of people (control rooms, airports, hospitals, trains, subways, shopping malls, theaters, cinemas, tunnels, among others).
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses

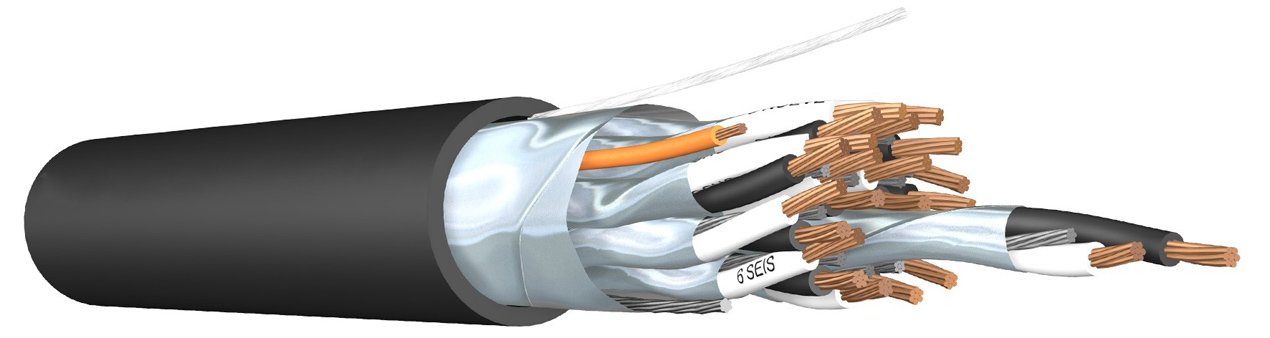

Description of PLTC Instrumentation Cable – Halogen Free
- Conductor: Annealed electrolytic copper in 7-wire formation, Class B.
- Insulation: LSZH-HFFR (Low Smoke Zero Halogen – Halogen Free Flame Retardant).
- Stranding pitch: 50 mm (20 twists per meter).
- Communication conductor: 22 AWG copper conductor insulated with LSZH (for more than three pairs or triple pairs).
- Shielding: Aluminum-polyester helical tape, or individual and overall, plus a tinned copper drain conductor in 7-wire formation, Class B.
- Sheath: LSZH-HFFR (Low Smoke Zero Halogen – Halogen Free Flame Retardant), black (blue for intrinsic safety), flame-retardant, resistant to sunlight and hydrocarbons.
- Tear: Polyamide thread under the sheath
PLTC Instrumentation Cable Applications – Halogen-Free
Electronic instrumentation circuits, digital and analog signals (4-20 mA). Intrinsically safe circuits. Gas and/or fluid leak detection. Pressure, temperature, and volume measurement and monitoring. Alarm signal monitoring.
Electronic instrumentation circuits. Use: in closed environments with access to large numbers of people (control rooms, airports, hospitals, trains, subways, shopping malls, theaters, cinemas, tunnels, among others).
Specification
Parameter of 14AWG, 16AWG PLTC Instrumentation Cable
| 2 | 16 | 9,0 | 114 | 9,0 | 131 |
| 3 | 16 | 10,8 | 164 | 11,5 | 195 |
| 4 | 16 | 11,7 | 205 | 12,5 | 246 |
| 6 | 16 | 13,9 | 282 | 14,9 | 342 |
| 8 | 16 | 15,1 | 353 | 16,7 | 451 |
| 12 | 16 | 18,8 | 521 | 20,2 | 638 |
| 16 | 16 | 20,9 | 662 | 23,0 | 844 |
| 20 | 16 | 23,7 | 832 | 25,5 | 1027 |
| 24 | 16 | 26,4 | 982 | 28,4 | 1214 |
| 36 | 16 | 30,2 | 1391 | 33,0 | 1771 |
| 2 | 14 | 11,1 | 174 | 11,1 | 191 |
| 3 | 14 | 13,1 | 236 | 14,0 | 270 |
| 4 | 14 | 14,3 | 299 | 15,9 | 363 |
| 6 | 14 | 17,7 | 440 | 19,0 | 506 |
| 8 | 14 | 19,2 | 553 | 20,6 | 638 |
| 12 | 14 | 24,0 | 816 | 25,7 | 944 |
| 16 | 14 | 26,6 | 1041 | 28,6 | 1209 |
| 20 | 14 | 29,5 | 1269 | 32,3 | 1515 |
| 24 | 14 | 33,4 | 1540 | 36,0 | 1792 |
| 36 | 14 | 38,3 | 2196 | 41,8 | 2614 |
Parameter of 18AWG, 20AWG PLTC Instrumentation Cable
| Number of pairs | AWG conductor gauge | General Armor | Individual and General Armor | ||
| Outer diameter mm | Weight kg/km | Outer diameter mm | Weight kg/km | ||
| 2 | 20 | 7,4 | 67 | 7,4 | 74 |
| 3 | 20 | 7,8 | 82 | 8,3 | 96 |
| 4 | 20 | 8,5 | 103 | 9,1 | 123 |
| 6 | 20 | 10,6 | 151 | 11,3 | 180 |
| 8 | 20 | 11,4 | 184 | 12,1 | 220 |
| 12 | 20 | 13,6 | 252 | 14,6 | 307 |
| 16 | 20 | 15,1 | 316 | 16,7 | 407 |
| 20 | 20 | 17,2 | 401 | 18,4 | 491 |
| 24 | 20 | 19,0 | 469 | 20,4 | 576 |
| 36 | 20 | 21,7 | 652 | 23,9 | 838 |
| 2 | 18 | 8,3 | 89 | 8,3 | 100 |
| 3 | 18 | 9,1 | 114 | 10,3 | 147 |
| 4 | 18 | 10,5 | 156 | 11,2 | 184 |
| 6 | 18 | 12,4 | 211 | 13,2 | 251 |
| 8 | 18 | 13,4 | 259 | 14,3 | 312 |
| 12 | 18 | 16,7 | 381 | 17,9 | 461 |
| 16 | 18 | 18,4 | 478 | 19,8 | 584 |
| 20 | 18 | 20,4 | 577 | 21,9 | 707 |
| 24 | 18 | 23,3 | 707 | 25,0 | 865 |
| 36 | 18 | 26,5 | 987 | 28,5 | 1219 |
