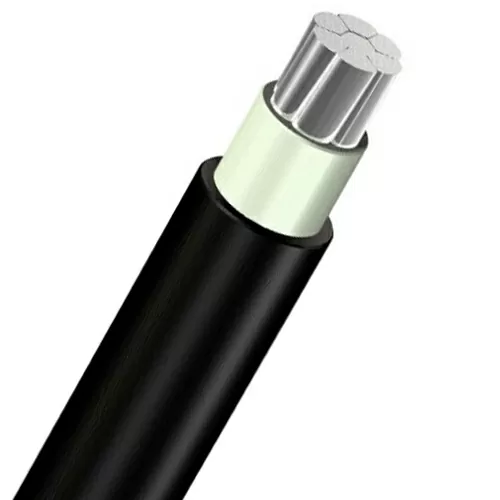

2.XZ1-Cable

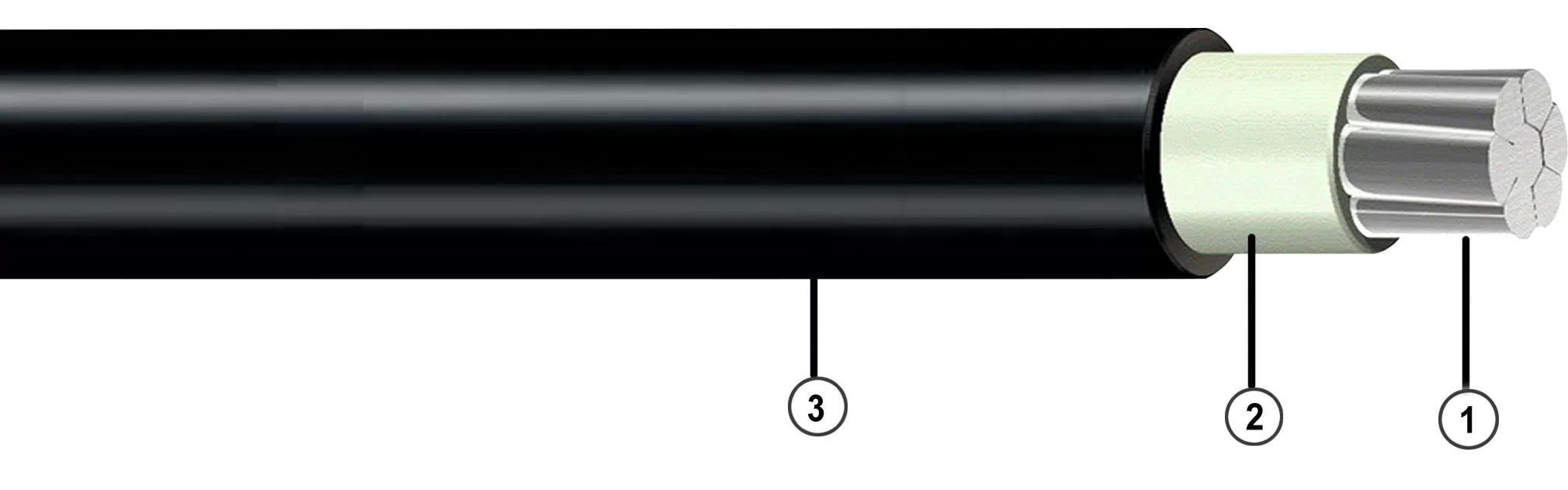

CONSTRUCTION

  • 1. CONDUCTOR: Aluminum, class 2 according to UNE-EN 60228.
  • 2. INSULATION: Cross-linked polyethylene (XLPE).
  • 3. OUTER SHEATH: Halogen-free thermoplastic polyolefin (DM01).

APPLICATIONS

Low-voltage power distribution cables specifically designed for indoor and outdoor, in-conduit, and/or direct-buried installations. Weather, tear, and abrasion resistance.

Water ingress resistance due to adhesion of the sheath to the insulation. Maximum conductor temperature: +90°C. Minimum working temperature: -25°C.

SPECIAL FEATURES

  • • Maximum tensile strength: 30 N/mm2.
  • • Minimum breaking load (cover): 12.5 N/mm2.
  • • Minimum elongation at break (cover): 300%.
  • • Tear resistance (cover): 9 N/mm2
  • • Rated AC voltage: Uo/U = 0.6/1 kV.
  • • Rated DC voltage: 1.5/1.5 kVdc.
  • • 5-minute voltage test (EN 50618): 6.5 kVac and 15 kVdc.
  • • 5-minute voltage test (HD 603-5X): 3.5 kV.
  • • Intermittent partial or total coverage in water: AD7 (immersion).
  • • Insulation resistance constant Ki: 3.67 MΩ cm.
  • • Resistance to moisture penetration due to the bond between insulation and the covering.
  • • Reduced environmental impact due to the elimination of lead-based stabilizers and plasticizers.

Specification

XZ1 (S) AL Cables Parameters

SectionElectrical resistance 20°CInsulation thickness (mm)Thickness of outer sheath (mm)Maximum totalWeight (kg/m)
(Ohm/km)diameter (mm)
1x350,8680,91,311,90,170
1x500,64111,312,80,210
1x700,4431,11,414,70,285
1x950,3201,11,416,40,367
1x1200,2531,21,417,90,453
1x1500,2061,41,419,80,544
1x1850,1641,61,421,80,665
1x2400,1251,71,524,80,866
1x3000,1001,81,827,41,083
1x4000,077821,931,51,385
