CONSTRUCTION

  • CONDUCTOR
  • Metal: Annealed electrolytic copper.
  • Flexibility: Flexible, class 5, according to UNE EN 60228.
  • Maximum conductor temperature: 90°C in continuous service, 250°C in short circuit.
  • INSULATION
  • Material: Cross-linked polyethylene (XLPE) blend, type DIX 3, according to HD 603-1.
  • Colors: Brown, black, gray, blue, yellow/green according to UNE 21089-1.
  • SEPARATOR ELEMENT
  • Longitudinal paper tape (optional).
  • FILLER
  • Material: If necessary, appropriate thermoplastic blend.
  • COVER
  • Material: Polyvinyl chloride (PVC) type DMV-18 according to HD 603-1.
  • Colors: Black or cream.

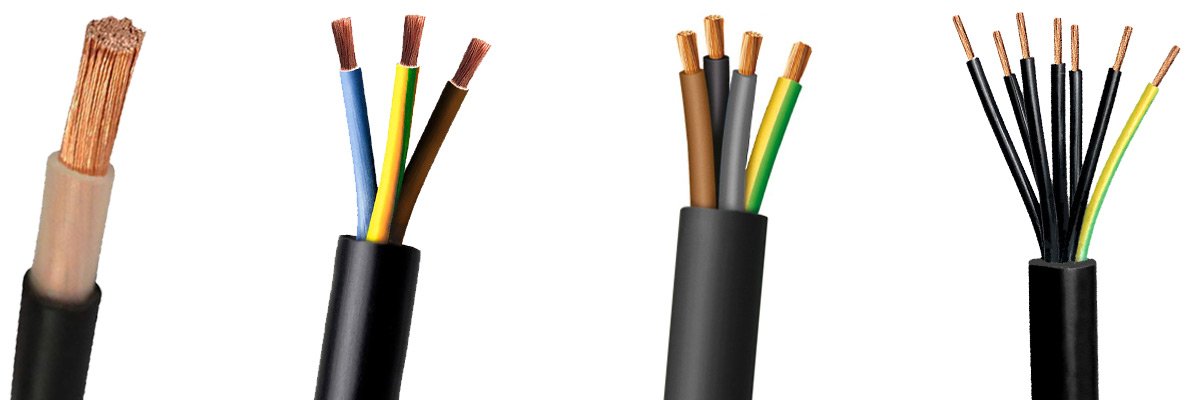

3-Cables-de-RV-K

APPLICATIONS

  • Easy-to-strip, highly flexible cable for general underground installations and open-air installations where ease of handling is required and where Afumex (AS) is not required.
  • Underground distribution networks and underground installations (ITC-BT 07).
  • Underground outdoor lighting networks (ITC-BT 09).
  • Indoor or receiving installations (ITC-BT 20); except where Afumex (AS) is required (see ITC-BT 28 and R.D. 2267/2004).
  • RV-K cables are not permitted in general temporary services (construction sites, fairs, stands, etc., ITC-BT 33, 34, etc.), nor for mobile services or extensions (see Bupreno H07RN-F).

Specification

1~2 Cores RV-K Cable Parameters

NUMBER OF DRIVERS x SECTIONINSULATION THICKNESSEXTERNAL DIAMETERTOTAL WEIGHTDRIVER RESISTANCEADMISSIBLE INTENSITY (2) AADMISSIBLE BURIED INTENSITY (3)VOLTAGE DROP V/A km (2)
mm²mm (1)mm (1)kg/km (1)a 20 ºC Ω /kmAcos F = 1cos F = 0,8
1 x 1.50,75,74213,3212126,5021,36
1 x 2,50,76,2547,983027,515,9212,88
1 x 40,76,6704,9540359,968,1
1 x 60,77,2913,352446,745,51
1 x 100,78,31351,91725843,31
1 x 160,79,41911,2197752,512,12
1 x 250,9112800,78122961,591,37
1 x 350,912,53890,5541531171,151,01
1 x 50114,25370,3861881380,850,77
1 x 701,115,87260,2722431700,590,56
1 x 951,117,99580,2062982020,420,43
1 x 1201,218,911700,1613502300,340,36
1 x 1501,421,214600,1294012600,270,31
1 x 1851,623,818300,1064602910,220,26
1 x 2401,726,723100,08015453360,170,22
1 x 3001,829,331000,06416303800,140,19
2 x 1.50,78,79513,3232430,9824,92
2 x 2,50,79,61257,98323218,6615,07
2 x 40,710,51654,95444211,689,46
2 x 60,711,72153,357537,906,42
2 x 100,713,93301,9178704,673,84
2 x 160,716,95031,21104912,942,45
2 x 250,920,67750,781351161,861,59
2 x 350,923,610600,5541681401,311,16
2 x 5012714700,3862041660,990,88

4~5 Cores RV-K Cables Parameters

NUMBER OF DRIVERS x SECTIONINSULATION THICKNESSEXTERNAL DIAMETERTOTAL WEIGHTDRIVER RESISTANCEADMISSIBLE INTENSITY (2) AADMISSIBLE BURIED INTENSITY (3)VOLTAGE DROP V/A km (2)
3 G 1.50,79,211013,3232430,9824,92
3 G 2,50,710,11507,98323218,6615,07
3 G 40,711,12004,95444211,689,46
3 G 60,712,32703,357537,906,42
3 G 100,714,74151,9178704,673,84
3 G 160,7186391,21104912,942,45
3 x 250,921,49460,78115961,621,38
3 x 350,925,113550,5541431171,171,01
3 x 50128,819000,3861741380,860,77
3 x 701,132,325500,2722231700,60,56
3 x 951,135,932900,2062712020,430,42
3 x 1201,239,240600,1613142300,340,35
3 x 1501,444,250700,1293592600,280,3
3 x 1851,650,364000,1064092910,220,26
3 x 2401,756,782000,08014893360,170,21
3 x 3001,862,2104500,06415493800,140,18
4 G 1,50,79,913513,32126,9421,67
4 G 2,50,7111807,982827,516,2313,1
4 G 40,712,12454,95383510,168,23
4 G 60,713,53303,349446,875,59
4 G 100,716,25201,9168584,063,34
4 x 160,719,97961,2191752,562,13
4 x 250,92412400,78115961,621,38
4 x 350,927,717000,5541431171,171,01
4 x 50132,224300,3861741380,860,77
4 x 701,135,832600,2722231700,60,56
4 x 951,139,842100,2062712020,430,42
4 x 1201,243,751780,1613142300,340,35
4 x 1501,449,564760,1293592600,280,3
4 x 1851,656,187780,1064092910,220,26
4 x 2401,763,2105260,08014893360,170,21
5 G 1.50,710,816013,3202126,9421,67
5 G 2,50,7122157,982827,516,2313,1
5 G 40,713,23004,95383510,168,23
5 G 60,714,84003,349446,875,59
5 G 100,717,76301,9168584,063,34
5 G 160,721,89761,2191752,562,13
5 G 250,926,214600,78115961,621,38
