Home-Electrical Cables-0.6/1kV NYCWY, NYCY Cable, Concentric conductor shield with copper strands + copper tape counter-winding

0.6/1kV NYCWY, NYCY Cable, Concentric conductor shield with copper strands + copper tape counter-winding

Shielded cable with a concentric conductor, designed for use in industrial processes in fixed installations with high levels of electromagnetic interference, as power and control cables. Especially suitable for connecting frequency inverters and motors. Suitable for indoor and outdoor installations. The concentric conductor must be used as a neutral, protective, or ground conductor.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

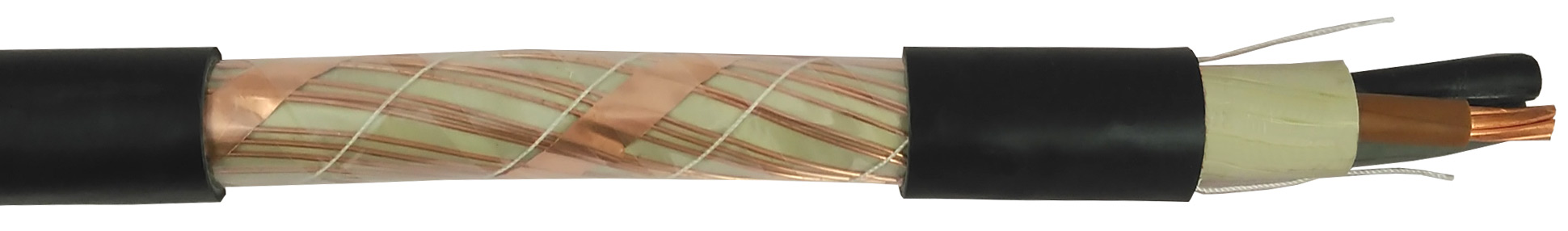

1.NYCWY-cable

NYCWY Cable Conductor

Operating voltage: 600/1000 V
MATERIAL: Polished annealed copper
FORMATION:
Insulation: PVC
Wiring: Insulated conductors stranded together
Inner sheath: PVC
Screen: Concentric conductor of copper wires + copper tape counter-winding
Outer sheath: PVC (Type DMV5) UV resistant
Color: Black

NYCWY Cable App

Shielded cable with a concentric conductor, designed for use in industrial processes in fixed installations with high levels of electromagnetic interference as power and control cables. Especially suitable for connecting frequency inverters and motors. Suitable for indoor and outdoor installations. The concentric conductor must be used as a neutral, protective, or ground conductor. It can also be used as a shield at the same time.


NYCY Cable Conductor

Operating voltage: 600/1000 V
Conductor: Polished copper
Insulation: PVC (Polyvinyl chloride)
Conformation: Insulated conductors stranded together in concentric rings
Inner sheath: PVC (Polyvinyl chloride)
Screen: Concentric conductor of copper wires + copper tape counter-winding
Outer sheath: UV PVC (Polyvinyl chloride)
Color: Black

NYCY Cable App

Shielded power and control cable recommended primarily for use in industrial environments where a degree of electromagnetic shielding is required. With a 3-conductor configuration, it is especially recommended for connecting frequency inverters. Suitable for indoor and outdoor installations, in dry or humid locations, exposed to the air or directly buried (with a suitable sand bed). The cross-section of the concentric conductor is sized and indicated in the construction data table. Therefore, as long as it complies with the regulations applicable to each installation, it can be used as a neutral conductor, a protective (ground) conductor, or simultaneously as a shield.

Specification

NYCY Cbale Parameters

0.6/1kV NYCY Cable
NxS (mm2)	Ø (mm)	Weight (kg/km)	R at 20°C (Ohm/Km)	I (A), 30°C	I (A) Ent, 20°C	Fixed Rc (mm)	Tell Anza (n)
2X1,5/1,5	13	200	12,1	19	27	156	150
2X2,5/2,5	13,6	260	7,41	26	36	163	250
2X4/4	15,4	350	4,61	34	47	185	400
2X6/6	16,9	430	3,08	44	59	203	600
2X10/10	18,5	520	1,83	60	79	222	1000
2X16/16	20,5	720	1,15	80	102	246	1600
3X1,5/1,5	13,2	220	12,1	19	27	158	225
3X2,5/2,5	14,2	280	7,41	26	36	170	375
3X4/4	16,3	390	4,61	34	47	196	600
3X6/6	17,3	500	3,08	44	59	207,6	900
3X10/10	20	680	1,83	60	79	240	1500
3X16/16	23	1010	1,15	80	102	276	2400
4X1,5/1,5	14,2	250	12,1	19	27	171	300
4X2,5/2,5	15,3	340	7,41	26	36	184	500
4X4/4	17,3	460	4,61	34	47	208	800
4X6/6	18,4	580	3,08	44	59	221	1200
4X10/10	21	765	1,83	60	79	252	2000
4X16/16	23	1060	1,15	80	102	276	3200
5X1,5/1,5	15	330	12,1	19	27	180	375
5X2,5/2,5	16	400	7,41	26	36	192	625
5X4/4	19	550	4,61	34	47	228	1000
5X6/6	21	700	3,08	44	59	252	1500
7X1,5/2,5	15,3	350	12,1	19	27	184	525
7X2,5/2,5	17,4	450	7,41	25	36	209	875
7X4/4	20	600	4,61	34	47	240	1400
7X6/6	22,5	790	3,08	43	59	270	2100
10X1,5/2,5	18,4	410	12,1	19	27	221	750
10X2,5/4	20,4	600	7,41	25	36	245	1250
12X1,5/2,5	19,4	470	12,1	19	27	233	900
12X2,5/4	20,5	660	7,41	25	36	246	1500
14X1,5/2,5	20,4	520	12,1	19	27	245	1050
14X2,5/6	21,5	750	7,41	25	36	258	1750
16X1,5/4	20	620	12,1	19	27	240	1200
16X2,5/6	22,5	800	7,41	25	36	270	2000
19X1,5/4	22,5	660	12,1	19	27	270	1425
19X2,5/6	23,5	940	7,41	25	36	282	2375
24X1,5/6	25,5	850	12,1	19	27	306	1800
24X2,5/10	27,6	1150	7,41	25	36	331	3000
30X1,5/6	2250		12,1	19	27	26,5	499
30X2,5/10	29,5	1600	7,41	25	36	354	3750
40X1,5/10	30	1280	12,1	19	27	360	3000
52X1,5/10	32	1600	12,1	19	27	384	3900
61X1,5/10	33	2000	12,1	19	27	396	4575

NYCWY Cbale Parameters

0.6/1kV NYCWY Cable
NxS (mm2)	Ø exterior (mm)	Weight (kg/km)	Rt (Ohm/Km)	I (A), 30°C	I (A) Ent, 20°C	Rc (mm)	Ft (N)
1x95/50	24	1761	0.193	270	281	360	4750
1x240/10	32.6	4067	0.0754	432	462	489	12000
2x10/10	19.4	610	1.83	60	79	233	1000
2x16/16	20.4	840	1.15	80	102	245	1600
2x25/16	24.4	1299	0.727	103	133	293	2500
2x25/25	25.1	1340	0.727	106	133	302	2500
2x50/25	30.3	2045	0.387	160	190	0.387	5000
3x10/10	19.4	750	1.83	60	79	233	1500
3x16/16	21.4	1050	1.15	80	102	257	2400
3x25/16	25.5	1600	0.727	106	133	306	3750
3x25/25	25.5	1600	0.727	106	133	306	3750
3x35/16	27.6	1700	0.524	129	160	331	5250
3x35/35	25.7	1850	0.524	129	160	308	7500
3x50/25	28.7	2300	0.387	157	190	0.387	7500
3x50/50	28.7	2400	0.387	157	190	344	7500
3x70/35	32.8	2900	0.268	199	237	0.268	10500
3x70/70	33.8	3300	0.268	199	234	406	10500
3x95/50	37.8	4000	0.193	249	280	454	14250
3x95/95	37.8	4500	0.193	249	280	454	14250
3x120/70	40.8	5000	0.153	289	319	490	18000
3x120/120	41.8	5500	0.153	289	319	502	18000
3x150/70	45	6000	0.124	329	357	540	22500
3x150/150	46	6750	0.124	329	357	552	22500
3x185/95	50	7500	0.0991	377	402	600	27750
3x240/120	57	10000	0.0754	443	463	684	36000
3x300/150	60.5	11615	0.0601	511	535	726	60000
4x10/10	20.4	870	1.83	60	79	245	2000
4x16/16	23.4	1250	1.115	80	102	281	3200
4x25/16	27.6	1800	0.727	106	133	331	5000
4x35/16	28.6	2050	0.524	129	160	343	7000
4x50/25	32.8	2700	0.387	157	190	394	10000
4x70/35	36.8	3750	0.268	199	234	442	14000
4x95/50	43.9	5000	0.193	249	280	527	19000
4x120/70	47	5300	0.153	289	319	564	24000
4x150/70	51	7600	0.124	329	357	612	30000
4x185/95	56	9300	0.0991	377	402	672	37000
4x240/120	63	11600	0.0754	443	463	756	48000
4x300/150	69.6	15331	0.0601	511	535	840	60000

Trusted Manufacturer

Based on high-quality products, a good reputation, and excellent service, we sincerely hope to establish mutually beneficial cooperation with domestic and foreign merchants and create a bright future together.

Our Clients

We are professional cable manufacturers. Thanks to the excellent quality of our cables and continuous product innovation, we export them to over 130 countries worldwide and have received numerous praises from our customers.

Our Workshop

HuaDong Cable Group was established in 1999 and covers an area of 66,000 square meters, located in the Xiuwu Industrial Zone of Jiaozuo City, China. We have 20 advanced production lines and 25 testing machines, with an annual production capacity of over 15 million kilometers.

Why choose Huadong cable?

Our vision is to become an internationally renowned brand in the cable industry. Customer satisfaction, employee advancement, and corporate development are our service principles; high standards, globalization, and building an international brand are our business philosophy.

Sobre HuaDong

Henan Huadong Cable Co., Ltd. was founded in 1999 and is a national high-tech enterprise integrating scientific research, industry, and trade. Huadong Cable is deeply involved in the construction of the Belt and Road Initiative and exports to over 130 countries worldwide, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.

Technology HuaDong

Huadong Cable focuses on technology research and development, employing 60 professionals with advanced professional degrees and holding over 100 patents and utility models. Huadong Cable employs a team of experienced technical engineers to ensure cable quality.

Main products

Our main products include marine cables, power cables, aerial cables, flame-resistant cables, low-smoke halogen-free cables, rubber cables, high-temperature cables, instrument and control cables, solar cables, and other products.
