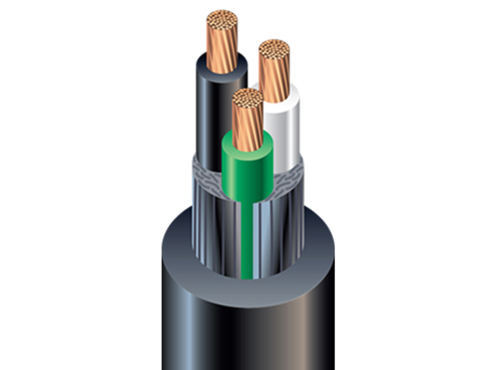

Cable SJEOOW
- Construction
- Nominal voltage: 300 V
- Conductor: Stranded bare copper, Class K
- Insulation: Heat, moisture, and oil-resistant TPE
- Filler: Non-absorbent polypropylene fillers with a tissue paper separator wrapped around the assembly
- Sheath: Black TPE (other colors available upon request)
- Application
- Type SJEOOW flexible cable is suitable for indoor and outdoor temporary power supply, portable industrial machinery, compressors, conveyors, and automated production equipment.
Cable SEOOW
- Construction
- Nominal voltage: 600 V
- Conductor: Stranded bare copper, class K
- Insulation: Heat, moisture, and oil-resistant TPE
- Filler: Non-absorbent polypropylene fillers with a tissue paper separator wrapped around the assembly
- Sheath: Black TPE (other colors available upon request)
- Application
- SEOOW flexible cables are approved for indoor and outdoor temporary power supply, portable industrial machinery and compressors, food processing, and washdown facilities.

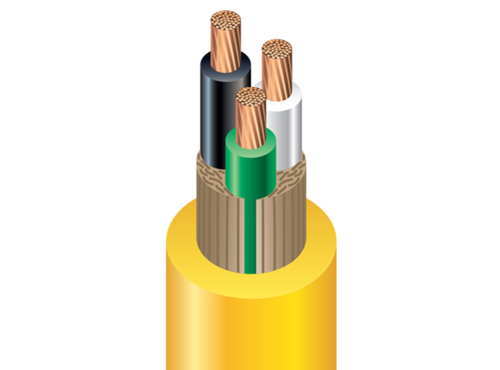

Cable SJOOW
- Construction
- Nominal Voltage: 300 V
- Conductors: Stranded bare copper, Class K
- Insulation: EPDM
- Sheath: Yellow CPE (other colors available upon request)
- Application
- SJOOW flexible cable is designed for ultra-durable use in industrial equipment, heavy-duty tools, battery chargers, portable lights, welding cables, marine power supplies, power extension cords, and mining applications.
Cable SOOW
- Construction
- Rated Voltage: 600 V
- Conductors: Stranded bare copper, Class K
- Insulation: EPDM
- Sheath: Yellow CPE (other colors available upon request)
- Application
- SOOW flexible cable is designed for extra-durable use in industrial equipment, heavy-duty tools, battery chargers, portable lights, welding cables, shore power, power extension cords, and mining applications.
Specification
SJEOOW Cable Specifications
| Size (AWG or kcmil) | Number of drivers | Number of strands | outside diameter (thousandths of an inch) | Nominal Total Weight (lbs/1000') | Maximum allowable current | DC resistance (conductor) |
| 18 AWG | 3 | 16 | 308 | 48 | 10 | 6.59 |
| 18 AWG | 4 | 16 | 328 | 58 | 7 | 6.59 |
| 16 AWG | 2 | 26 | 310 | 46 | 13 | 4.05 |
| 16 AWG | 3 | 26 | 329 | 60 | 13 | 4.05 |
| 16 AWG | 4 | 26 | 370 | 78 | 10 | 4.05 |
| 14 AWG | 2 | 41 | 340 | 60 | 18 | 2.55 |
| 14 AWG | 3 | 41 | 363 | 80 | 18 | 2.55 |
| 14 AWG | 4 | 41 | 393 | 99 | 15 | 2.55 |
| 12 AWG | 2 | 65 | 410 | 93 | 25 | 1.61 |
| 12 AWG | 3 | 65 | 428 | 119 | 25 | 1.61 |
| 12 AWG | 4 | 65 | 468 | 152 | 20 | 1.61 |
| 10 AWG | 2 | 104 | 541 | 159 | 30 | 0.98 |
| 10 AWG | 3 | 104 | 573 | 205 | 30 | 0.98 |
| 10 AWG | 4 | 104 | 628 | 261 | 25 | 0.98 |
SEOOW Cable Specifications
| Size (AWG or kcmil) | Number of drivers | Number of strands | outside diameter (thousandths of an inch) | Nominal Total Weight (lbs/1000') | Maximum allowable current | DC resistance (conductor) |
| 18 AWG | 6 | 16 | 484 | 117 | 5.5 | 6.4 |
| 18 AWG | 7 | 16 | 488 | 125 | 4.5 | 6.4 |
| 18 AWG | 8 | 16 | 517 | 138 | 4.5 | 6.4 |
| 18 AWG | 10 | 16 | 592 | 167 | 3.5 | 6.4 |
| 18 AWG | 12 | 16 | 613 | 190 | 3.5 | 6.4 |
| 18 AWG | 14 | 16 | 640 | 214 | 3.5 | 6.4 |
| 18 AWG | 16 | 16 | 697 | 256 | 3.5 | 6.4 |
| 16 AWG | 4 | 26 | 416 | 93 | 10 | 4.12 |
| 16 AWG | 5 | 26 | 492 | 129 | 8 | 4.12 |
| 16 AWG | 6 | 26 | 533 | 149 | 8 | 4.12 |
| 16 AWG | 7 | 26 | 525 | 154 | 7 | 4.12 |
| 16 AWG | 8 | 26 | 560 | 174 | 7 | 4.12 |
| 16 AWG | 14 | 26 | 725 | 287 | 5 | 4.12 |
| 16 AWG | 16 | 26 | 757 | 317 | 5 | 4.12 |
| 14 AWG | 2 | 41 | 497 | 113 | 18 | 2.64 |
| 14 AWG | 3 | 41 | 522 | 137 | 18 | 2.64 |
| 14 AWG | 4 | 41 | 592 | 180 | 15 | 2.64 |
| 14 AWG | 6 | 41 | 690 | 248 | 12 | 2.64 |
| 14 AWG | 7 | 41 | 690 | 262 | 10 | 2.64 |
| 14 AWG | 8 | 41 | 743 | 298 | 10 | 2.64 |
| 14 AWG | 10 | 41 | 835 | 352 | 7 | 2.64 |
| 12 AWG | 2 | 65 | 570 | 159 | 25 | 1.66 |
| 12 AWG | 3 | 65 | 603 | 193 | 25 | 1.66 |
| 12 AWG | 6 | 65 | 745 | 317 | 16 | 1.66 |
SJOOW Cable Specifications
| Size (AWG or kcmil) | Number of drivers | Number of strands | outside diameter (thousandths of an inch) | Nominal Total Weight (lbs/1000') | Maximum allowable current | DC resistance (conductor) |
| 18 AWG | 3 | 16 | 306 | 57 | 10 | 6.59 |
| 16 AWG | 3 | 65 | 328 | 69 | 13 | 4.05 |
| 14 AWG | 3 | 41 | 365 | 93 | 18 | 2.55 |
| 14 AWG | 4 | 41 | 394 | 112 | 15 | 2.55 |
| 12 AWG | 3 | 65 | 430 | 140 | 25 | 1.61 |
SOOW Cable Specifications
| Size (AWG or kcmil) | Number of drivers | Number of strands | outside diameter (thousandths of an inch) | Nominal Total Weight (lbs/1000') | Maximum allowable current | DC resistance (conductor) |
| 16 AWG | 2 | 65 | 370 | 75 | 13 | 4.05 |
| 16 AWG | 3 | 26 | 390 | 91 | 13 | 4.05 |
| 16 AWG | 4 | 26 | 415 | 107 | 10 | 4.05 |
| 14 AWG | 2 | 41 | 513 | 134 | 18 | 2.55 |
| 14 AWG | 3 | 41 | 525 | 158 | 18 | 2.55 |
| 14 AWG | 4 | 41 | 565 | 193 | 15 | 2.55 |
| 12 AWG | 3 | 65 | 609 | 219 | 25 | 1.61 |
| 12 AWG | 4 | 65 | 668 | 274 | 20 | 1.61 |
| 10 AWG | 3 | 104 | 655 | 281 | 30 | 0.98 |
| 10 AWG | 4 | 104 | 710 | 337 | 25 | 0.98 |
