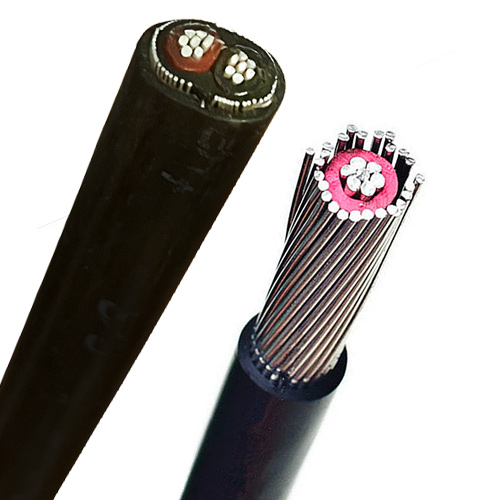

600V Concentric Anti-fraud Cable, Single-phase, Three-phase, Aluminum or Copper Conductor, Flat or Round

Input cable that connects from the distribution circuit to the meter (service connection). This conductor makes energy fraud difficult thanks to its construction with an outer sheath and concentric neutral.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

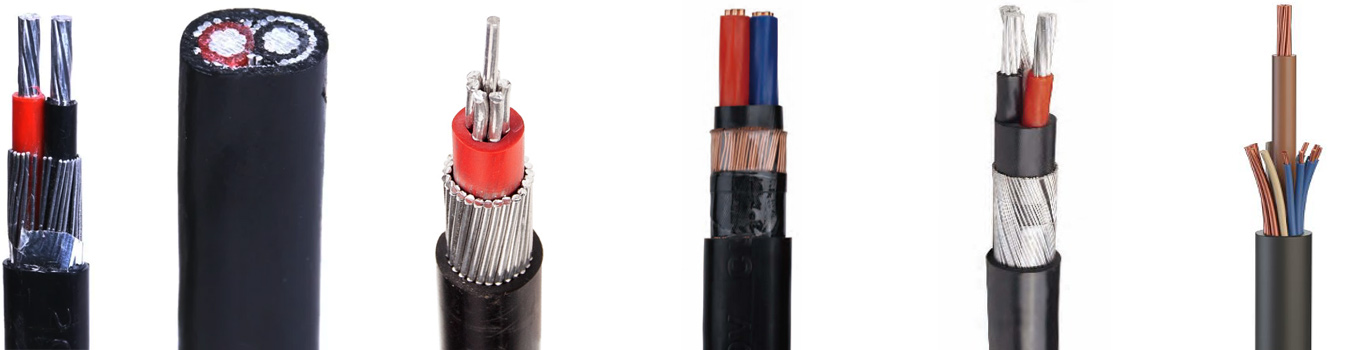

2.concentrio-cable

Construction:

Soft copper conductor with 75°C PE or 90°C XLPE insulation. With one, two, or more phases assembled and covered with a PVC filler. The neutral conductor (soft copper wires in a concentric helical shape) runs over this. The outer jacket is made of PE, XLPE, or black weatherproof PVC. It contains a nylon thread between the neutral conductor and the jacket for tearing.

Applications:

Features:

Maximum operating voltage: 600 V.
Maximum operating temperature: 90°C for XLPE-insulated cables and 75°C for PE-insulated cables.
High dielectric strength.
Chemical and oil resistance.

Specification

Parameters of the Concentric Copper Round Cable

Cable with concentric neutral, Round, Copper
Phases + neutral	Insulation thickness	Jacket thickness	External diameter	Total time	ID	Current capacity (A)
AWG	mm	mm	mm	kg/km	ID	90°C*	Suggested RETIE and NTC 2050 **
1 x 8 + 8	1,14	1,14	9,6	213	C1: Black	55	40
3 x 8 + 8	1,14	1,52	18,7	613	—	55	40
2 x 6 + 6	1,14	1,52	19,6	671	C1: Black C2: Black with red stripe	75	55
2 x 6 + 8	1,14	1,14	19,0	602	—	75	55
2 x 4 + 4	1,14	2,03	22,2	967	—	95	70
2 x 4 + 6	1,14	1,52	22,2	890	—	95	70
* Permissible current carrying capacity of insulated conductors for 75°C: no more than three current-carrying conductors in raceway, cable, or ground, based on a temperature of 30°C.
** Permitted current capacity in insulated conductors no more than three current-carrying conductors in pipelines, cables or ground (directly buried) based on an ambient temperature of 30ºC according to standard NTC 2050 article 110-14 literal c).
(–) For more information on products that do not have a code, please consult your Sales Executive or write to us at: supplier@huadongcablegroup.com

Parameters of the Concentric-Copper-Flat Cable

Cable with concentric neutral, Flat, Copper
Phases + neutral	Insulation thickness	Jacket thickness	Overall dimensions			Total time	ID	Current capacity (A)
AWG	mm	mm	mm	X	mm	kg/km	ID	90°C*	Suggested RETIE and NTC 2050 **
2 x 8 + 8	1,14	1,52	10,4	x	16,3	363	C1: Black C2: Black with red stripe	55	40
2 x 8 + 10	1,14	1,52	10,2	x	16,1	327	—	55	40
2 x 6 + 8	1,14	1,52	11,0	x	18,0	467	—	75	55
2 x 6 + 6	1,14	1,52	11,4	x	18,5	520	C1: Black C2: Black with red stripe	75	55
2 x 4 + 6	1,14	2,03	13,4	x	21,6	726	—	95	70
2 x 4 + 4	1,14	2,03	14,0	x	21,1	814	—	95	70
* Permissible current carrying capacity of insulated conductors for 75°C: no more than three current-carrying conductors in raceway, cable, or ground, based on a temperature of 30°C.
** Permitted current capacity in insulated conductors no more than three current-carrying conductors in pipelines, cables or ground (directly buried) based on an ambient temperature of 30ºC according to standard NTC 2050 article 110-14 literal c).
(–) For more information on products that do not have a code, please consult your Sales Executive or write to us at: supplier@huadongcablegroup.com

Parameters of the Concentric-Aluminum-Round Type Cable

Cable with concentric neutral, Round, Aluminum
Phases + neutral	Insulation thickness	Jacket thickness	External diameter	Total time	Current capacity (A)
AWG	mm	mm	mm	kg/km	90°C*	Suggested RETIE and NTC 2050 *
1 x 6 + 6	1,14	1,14	11,14	153	60	40
2 x 6 + 6	1,14	1,52	20,7	417	60	40
1 x 4 + 4	1,14	1,14	12,52	208	75	55
1 x 2 + 2	1,14	1,52	15,46	325	100	75
2 x 4 + 4	1,14	2,03	22,4	426	75	55
2 x 2 + 2	1,14	2,03	26,06	583	100	75
* Permissible current carrying capacity of insulated conductors for 75°C: no more than three current-carrying conductors in raceway, cable, or ground, based on a temperature of 30°C.
(–) For more information on products that do not have a code, please consult your Sales Executive or write to us at: supplier@huadongcablegroup.com

Parameters of the Concentric-Aluminum-Flat Type Cable

Cable with concentric neutral, Flat, Aluminum
Phases + neutral	Insulation thickness	Jacket thickness	External diameter			Total time	ID	Current capacity (A)
AWG	mm	mm	mm	X	mm	kg/km	ID	90°C*	Suggested RETIE and NTC 2050 *
2 x 6 + 6	1,14	1,52	19,2	x	12,3	267	C1: Black C2: Black with red stripe	60	40
2 x 4 + 4	1,14	2,03	22,6	x	14,5	402	—	75	55
2 x 2 + 2	1,14	2,03	25,6	x	16	544	—	100	75
* Permissible current carrying capacity of insulated conductors for 75°C: no more than three current-carrying conductors in raceway, cable, or ground, based on a temperature of 30°C.
** Permitted current capacity in insulated conductors (no more than three current-carrying conductors in conduits, cables, or ground (directly buried)) based on an ambient temperature of 30°C according to standard NTC 2050, article 110-14, letter c)
