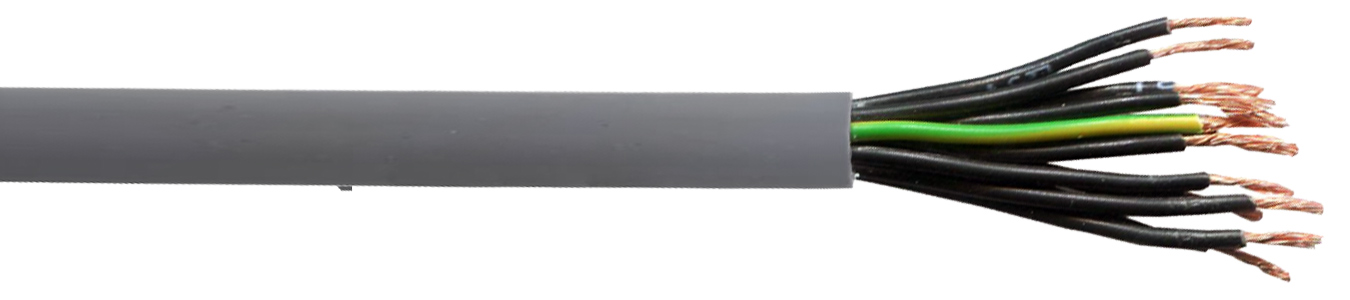

YY/LiYY/YSLY-JZ/YSLY-OZ/YSLY-JB/YSLY-OB PVC Instrumentation and Control Cable
YSLY cables are suitable for fixed and mobile installations. They are suitable for indoor use, signaling, and machine tool connections. The sheath of these cables has excellent resistance to abrasion, moisture, impact, and general-purpose mineral oils.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses
Technical Features of YY/YSLY-JZ/ YSLY-OZ/YSLY-JB/YSLY-OB Control Cables
- 1. Conductor: Flexible electrolytic copper (Class V) according to UNE-EN 60228, EN 60228, and IEC 60228
- 2. Insulation: PVC type TI-1 according to UNE-EN 50363-3 and EN 50363-3
- 3. Sheath: PVC type TM-5, oil-resistant according to UNE-EN 50363-4-1 and EN 50363-4-1
- Nominal voltage: 300/500 V
- Test voltage: 2,000 V AC
- Maximum temperature: 70°C
- Other characteristics:
- Colors according to UNE 21089 (color-coded for fewer than 5 conductors), HD 308S2, and VDE 0293.
- Color according to UNE-EN 50334 (color-coded for more than 5 conductors), EN 50334, and VDE 029
Description of YY/YSLY-JZ/ YSLY-OZ/YSLY-JB/YSLY-OB Control Cables
YSLY cables are suitable for fixed and mobile installations. They are suitable for indoor use, signaling, and machine tool connections. The sheath of these cables has excellent resistance to abrasion, moisture, impact, and general-purpose mineral oils.
Applications of YY/YSLY-JZ/ YSLY-OZ/YSLY-JB/YSLY-OB Control Cables
- Suitable for the following installations:
- – Connections of electronic and computer equipment
- – Connections of machine tools
- – Connections of electronic scales, etc.
Specification
YSLY Control Cable 2-4 cores
| Section | Resistance to 20 °C | Diameter | Weight |
| (mm2) | (Ohm/km) | Exterior (mm) | (kg/km) |
| 2x0,5 | 39 | 4,65 | 29 |
| 2x0,75 | 26 | 5,20 | 41 |
| 2x1 | 19,5 | 5,55 | 49 |
| 2x1,5 | 13,3 | 5,80 | 58 |
| 2x4 | 4,95 | 8,75 | 131 |
| 2x6 | 3,3 | 10,55 | 192 |
| 2x10 | 1,91 | 13,25 | 312 |
| 2x16 | 1,21 | 15,65 | 459 |
| 2x25 | 0,78 | 19,25 | 698 |
| 2x35 | 0,554 | 21,45 | 924 |
| 2x50 | 0,386 | 25,90 | 1.331 |
| 3G0,5 | 39 | 4,95 | 36 |
| 3G0,75 | 26 | 5,50 | 50 |
| 3x1 | 19,5 | 6,05 | 61 |
| 3G1,5 | 13,3 | 6,30 | 73 |
| 3G2,5 | 7,98 | 7,80 | 116 |
| 3G4 | 4,95 | 9,35 | 167 |
| 3G6 | 3,3 | 11,40 | 247 |
| 3G10 | 1,91 | 14,20 | 403 |
| 3x16 | 1,21 | 16,80 | 597 |
| 3x25 | 0,78 | 20,65 | 910 |
| 3x35 | 0,554 | 23,05 | 1.218 |
| 3x50 | 0,386 | 27,80 | 1.753 |
| 4x0,5 | 39 | 5,45 | 44 |
| 4x0,75 | 26 | 6,10 | 62 |
| 4x1 | 19,5 | 6,55 | 74 |
| 4x1,5 | 13,3 | 6,90 | 91 |
| 4x2,5 | 7,98 | 8,60 | 144 |
| 4x4 | 4,95 | 10,40 | 212 |
| 4x6 | 3,3 | 12,60 | 313 |
| 4x10 | 1,91 | 15,80 | 512 |
| 4x16 | 1,21 | 18,75 | 762 |
| 4x25 | 0,78 | 23,05 | 1.161 |
| 4x35 | 0,554 | 25,75 | 1.56 |
| 4x50 | 0,386 | 31,05 | 2.244 |
YSLY Control Cable 5-37 cores
| Section | Resistance to 20 °C | Diameter | Weight |
| (mm2) | (Ohm/km) | Exterior (mm) | (kg/km) |
| 5x0,75 | 26 | 6,75 | 75 |
| 5x1 | 19,5 | 7,20 | 90 |
| 5x1,5 | 13,3 | 7,70 | 110 |
| 5x2,5 | 7,98 | 9,60 | 177 |
| 5x4 | 4,95 | 11,55 | 258 |
| 5x6 | 3,3 | 14,00 | 382 |
| 5x10 | 1,91 | 17,60 | 627 |
| 5x16 | 1,21 | 20,90 | 935 |
| 5x25 | 0,78 | 25,70 | 1.425 |
| 5x35 | 0,554 | 28,70 | 1.915 |
| 5x50 | 0,386 | 34,65 | 2.758 |
| 5x70 | 0,272 | 40,00 | 3.816 |
| 5x95 | 0,206 | 45,80 | 5.056 |
| 7x0,5 | 39 | 6,55 | 69 |
| 7x0,75 | 26 | 7,70 | 97 |
| 7x1 | 19,5 | 8,15 | 117 |
| 7x1,5 | 13,3 | 8,95 | 145 |
| 7x2,5 | 7,98 | 10,50 | 232 |
| 12x0,5 | 39 | 8,35 | 112 |
| 12x0,75 | 26 | 9,70 | 156 |
| 12x1 | 19,5 | 10,55 | 192 |
| 12x1,5 | 13,3 | 11,15 | 238 |
| 12x2,5 | 7,98 | 13,50 | 382 |
| 19x0,5 | 39 | 10,15 | 169 |
| 19x0,75 | 26 | 11,55 | 237 |
| 19x1,5 | 13,3 | 13,05 | 363 |
| 19x2,5 | 7,98 | 16,55 | 586 |
| 27x0,5 | 39 | 11,95 | 234 |
| 27x0,75 | 26 | 13,65 | 329 |
| 27x1,5 | 13,3 | 15,50 | 509 |
| 27x2,5 | 7,98 | 19,70 | 825 |
| 37x0,5 | 39 | 13,75 | 314 |
| 37x0,75 | 26 | 15,70 | 444 |
| 37x1,5 | 13,3 | 17,85 | 685 |
| 37x2,5 | 7,98 | 22,75 | 1.113 |
