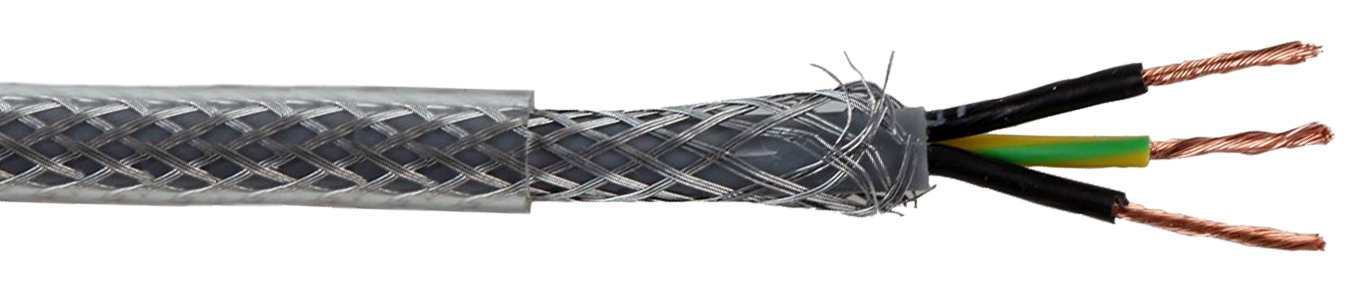

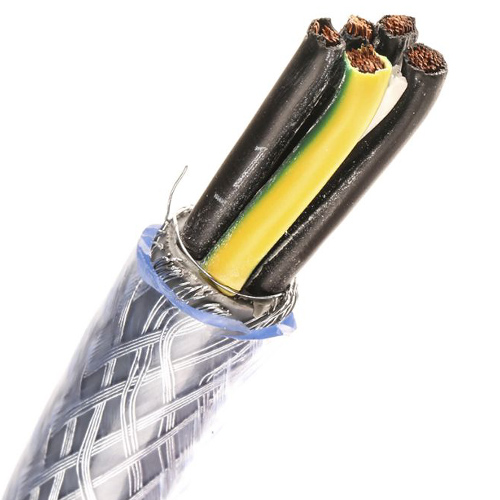

Composition of H05VV5-F/SY/YSLYSY Control Cable Cable
- U0/U: 300/500V, 450/750V
- Conductor: Conductor made of fine stranded bare copper wires
- Insulation: PVC insulation
- Inner sheath: Conductors stranded in layers with gray PVC inner sheath
- Armor: Galvanized steel wire braid armor
- Outer sheath: Transparent PVC
- Technical data
- Minimum bending radius:
- Occasional flexible use: 20 x outer diameter Fixed installation: 6 x outer diameter
- Conductor configuration: Finely stranded strands according to VDE 0295 Class 5 / IEC 60228 Class 5
- Nominal voltage: Up to 1.5 mm²: U0/U: 300/500 V
- From 2.5 mm²: Uo/U: 450/750 V
- From 2.5 mm², protected fixed installation: Uo/U: 600/1000 V
- Test voltage: 4000 V
- Protective conductor: G = with protective conductor AM/VE X = without protective conductor
- Temperature range: Occasional flexible use: –5°C to +70°C Fixed installation: –40°C to +80°C
Scope of use of H05VV5-F/SY/YSLYSY Control cable
- Plant engineering Industrial machinery
- Air conditioning installations
- Areas with higher mechanical stress requirements
Specification
300-500V SY Control Cable
| Number of conductors and section in mm² | 22 / 5,000 Outer diameter [mm] | Copper index kg/km | Weight kg/km |
| 300/500V SY Cable | |||
| 2 X 0.75 | 8.2 | 14,4 | 97 |
| 3 G 0.75 | 8.5 | 21,6 | 108 |
| 4 G 0.75 | 9.2 | 28,8 | 126 |
| 5 G 0.75 | 9.7 | 36 | 146 |
| 7 G 0.75 | 10.3 | 50 | 172 |
| 12 G 0.75 | 12.9 | 86 | 260 |
| 2 X 1.0 | 8.5 | 19,2 | 137 |
| 3 G 1.0 | 8.8 | 29 | 154 |
| 4 G 1.0 | 9.5 | 38,4 | 180 |
| 5 G 1.0 | 10.1 | 48 | 202 |
| 7 G 1.0 | 11 | 67 | 242 |
| 2 X 1.5 | 9.3 | 29 | 172 |
| 3 G 1.5 | 9.7 | 43 | 191 |
| 4 G 1.5 | 10.2 | 58 | 217 |
| 5 G 1.5 | 11.1 | 72 | 268 |
| 7 G 1.5 | 11.9 | 101 | 311 |
| 12 G 1.5 | 15.4 | 173 | 499 |
| 18 G 1.5 | 17.6 | 259 | 652 |
| 25 G 1.5 | 20.3 | 360 | 913 |
450-750V SY Control Cable
| Number of conductors and section in mm² | 22 / 5,000 Outer diameter [mm] | Copper index kg/km | Weight kg/km |
| 450/750V SY Cable | |||
| 2 X 2.5 | 12.1 | 48 | 245 |
| 3 G 2.5 | 12.6 | 72 | 278 |
| 4 G 2.5 | 13.9 | 96 | 339 |
| 5 G 2.5 | 15.2 | 120 | 397 |
| 7 G 2.5 | 16.3 | 168 | 470 |
| 2 X 4.0 | 13.6 | 76,8 | 329 |
| 4 G 4.0 | 15.7 | 154 | 457 |
| 5 G 4.0 | 17.1 | 192 | 545 |
| 3 G 6.0 | 15.8 | 173 | 544 |
| 4 G 6.0 | 17.2 | 230 | 687 |
| 5 G 6.0 | 18.8 | 288 | 798 |
| 4 G 10.0 | 21.3 | 384 | 1009 |
| 5 G 10.0 | 23.3 | 480 | 1197 |
