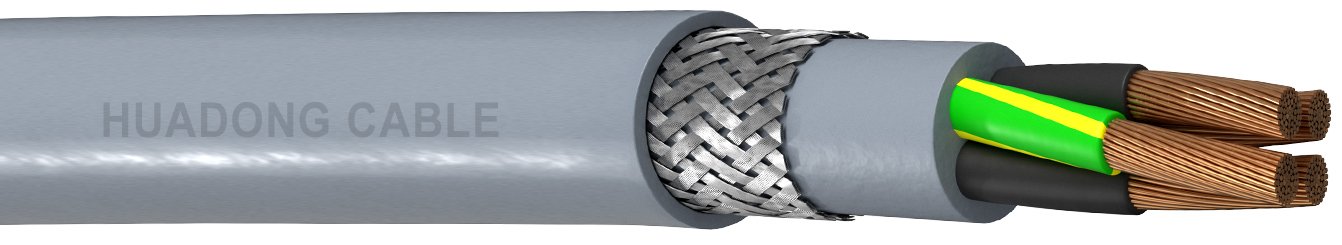

H05VVC4V5-K or YSLYCY PVC/PVC/PVC Control Cable with Tinned Copper Braiding
- H05VVC4V5-K or YSLYCY Cable Control Applications
- Suitable for the following installations:
- Data communication systems
- Electronic control and signaling
- Computer systems
- Scales, etc.
- Experts
- Quality assurance
- Fast delivery
- Purchase bonuses
Technical Features of H05VVC4V5-K or YSLYCY Cable Control
- 1. Conductor: Flexible electrolytic copper (Class V) according to UNE-EN 50525-2-51 and EN 50525-2-51
- 2. Insulation: PVC type A according to UNE-EN 50525-2-51 and EN 50525-2-51
- 3. Screen seat: PVC type ST-1 according to UNE-EN 50525-2-51 and EN 50525-2-51
- 4. Screen: Polished copper braid over polyester film
- 5. Sheath: PVC with nitrile rubber additive, type TM-5, oil-resistant according to UNE-EN 50525-2-51 and EN 50525-2-51
- Nominal voltage: 300/500 V
- Test voltage: 2,000 V AC
- Maximum temperature: 70ºC
- Other features
- White RAL 9010 and grey RAL 7000 sheath
- Color according to UNE 21089 and HD 308 S2 (color-coded for fewer than five conductors), UNE-EN 50334 and EN 50334 (inscription-coded for more than five conductors) (color-coded for fewer than 5 conductors), and HD 308S2
- Color according to UNE-EN 50334 (inscription-coded for more than 5 conductors) and EN 50334. Flame retardant according to UNE-EN 60332-1-2, EN 60332-1-2, and IEC 60332-1-2
Description of H05VVC4V5-K or YSLYCY Cable Control
- These cables are suitable for fixed installations requiring electromagnetic shielding to prevent parasitic currents. They are useful for applications involving control and command of variable speed drives, solenoid valves, machine and PLC startup, remote switches, and temperature, current, or voltage regulation in motorized valves.
- Their high flexibility makes them suitable for complex and highly difficult installations.
- Reference standards: UNE-EN 50525-2-51, EN 50525-2-51
- H05VVC4V5-K or YSLYCY Control Cable Applications
- Suitable for the following installations:
- •Data communication systems
- •Electronic control and signaling
- •Computer systems
- •Scales, etc.
Cable features
Mín. temp. ambiente de funcionamiento -40 ℃
Bloquear el Agua
Resistencia al aceite
Resistencia a la tracción y a la abrasión
Gran flexibilidad y resistencia a los impactos
Antiparásitos electromagnéticos
Specification
H05VVC4V5-K or YSLYCY Control Cable
| Number x cross section | copper figure | Construction conditions (approximate value) | Total diameter approx. | Approximate weight. |
| mm2 | kg/km | mm | mm | kg/km |
| 2 X 0,75 * | 43 | 24 x 0,21 | 8,4 | 111,0 |
| 3 G 0,75 | 57 | 24 x 0,21 | 8,9 | 130,0 |
| 4 G 0,75 | 70 | 24 x 0,21 | 9,6 | 150,0 |
| 5 G 0,75 | 82 | 24 x 0,21 | 10,5 | 179,0 |
| 7 G 0,75 | 113 | 24 x 0,21 | 12,5 | 263,0 |
| 12 G 0,75 | 192 | 24 x 0,21 | 14,6 | 363,0 |
| 25 G 0,75 | 331 | 24 x 0,21 | 19,5 | 643,0 |
| 3 G 1 | 78 | 32 x 0,21 | 9,3 | 143,0 |
| 4 G 1 | 89 | 32 x 0,21 | 10,0 | 171,0 |
| 5 G 1 | 106 | 32 x 0,21 | 10,9 | 199,0 |
| 7 G 1 | 132 | 32 x 0,21 | 13,4 | 314,0 |
| 12 G 1 | 206 | 32 x 0,21 | 15,4 | 408,0 |
| 18 G 1 | 316 | 32 x 0,21 | 17,9 | 564,0 |
| 2 X 1,5 * | 74 | 30 x 0,26 | 10,0 | 163,0 |
| 3 G 1,5 | 99 | 30 x 0,26 | 10,6 | 186,0 |
| 4 G 1,5 | 121 | 30 x 0,26 | 11,5 | 224,0 |
| 5 G 1,5 | 135 | 30 x 0,26 | 12,6 | 268,0 |
| 7 G 1,5 | 227 | 30 x 0,26 | 15,4 | 418,0 |
| 12 G 1,5 | 322 | 30 x 0,26 | 17,8 | 558,0 |
| 18 G 1,5 | 428 | 30 x 0,26 | 20,9 | 763,0 |
| 25 G 1,5 | 568 | 30 x 0,26 | 24,0 | 1.012,0 |
| 3 G 2,5 | 154 | 50 x 0,26 | 12,1 | 251,0 |
| 4 G 2,5 | 170 | 50 x 0,26 | 13,4 | 323,0 |
| 5 G 2,5 | 208 | 50 x 0,26 | 14,7 | 390,0 |
| 7 G 2,5 | 300 | 50 x 0,26 | 17,9 | 583,0 |
| 12 G 2,5 | 516 | 50 x 0,26 | 20,8 | 778,0 |
| 18 G 2,5 | 615 | 50 x 0,26 | 24,4 | 1.088,0 |
