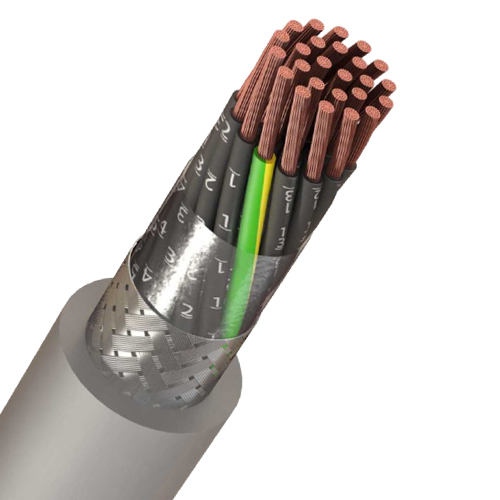

CY/YSLCY PVC Control Cable with Tinned Copper Braiding

Suitable for the following installations:
Electronic equipment connections
Computer system connections
Variable speed drive connections
Electronic scale connections, etc.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Technical Features of SY/YSLCY Control Cable

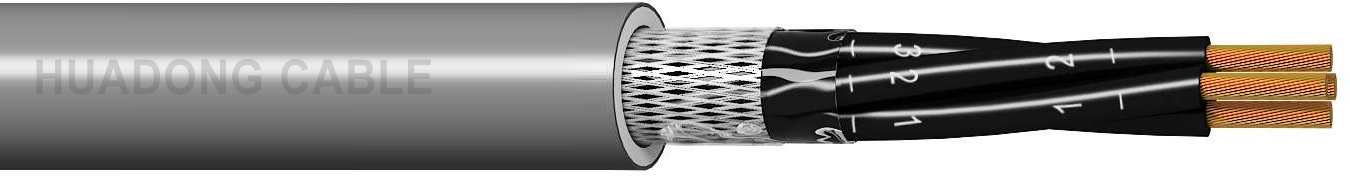

cy-control-cable

1. Conductor: Flexible electrolytic copper (Class V) according to UNE-EN 60228, EN 60228, and IEC 60228
2. Insulation: PVC type A according to UNE 21123, VDE 0812, and IEC 60502-1
3. Screen: Tinned copper braid over polyester foil
4. Sheath: PVC type ST-1 according to UNE 21123 and HD603S1
Nominal voltage: 300/500 V
Test voltage: 2,000 V AC
Maximum temperature: 70ºC
Other characteristics
Color according to UNE 21089 and HD 308 S2 (color-coded for fewer than five conductors), UNE-EN 50334 and EN 50334 (inscription-coded for more than five conductors) (color-coded for fewer than 5 conductors), and HD 308S2 Color according to UNE-EN 50334 (inscription-coded for more than 5 conductors) and EN 50334
Non-flame propagation according to UNE-EN 60332-1-2, EN 60332-1-2, and IEC 60332-1-2

Description of SU/YSLY Control Cable

These cables are suitable for fixed installations requiring electromagnetic shielding to prevent parasitic currents. They are useful for applications such as control and command of variable speed drives, solenoid valves, machine and PLC startup, remote switches, and temperature, current, or voltage regulation in motorized valves. Their great flexibility makes them suitable for complex and highly difficult installations. Reference Standards: VDE 0812, UNE-EN 50525, and IEC 60502-1.

Applications of SY/YSLCY Control Cable

Suitable for the following installations:
– Electronic equipment connections
– Computer system connections
– Variable speed drive connections
– Electronic scale connections, etc.

Cable features

Mín. temp. ambiente de funcionamiento -40 ℃

Bloquear el Agua

Resistencia al aceite

Antitorsión

Gran flexibilidad y resistencia a los impactos

Antiparásitos electromagnéticos

Specification

CY 2-6 Core Control Cable

Section	Resistance to 20 °C	External diameter	Weight
(mm²)	(Ohm/km)	(mm)	(kg/km)
2x0,75	26	5,80	42
2x1	19,5	6,20	50
2x1,5	13,3	6,65	60
2x2,5	7,98	8,25	92
2x4	4,95	9,30	126
2x6	3,3	11,15	181
2x10	1,91	13,80	284
2x16	1,21	16,25	413
2x25	0,78	19,80	616
3x0,75	26	6,15	54
3x1	19,5	6,55	63
3x1,5	13,3	7,10	79
3x2,5	7,98	8,75	121
3x4	4,95	9,95	170
3x6	3,3	11,90	245
3x10	1,91	14,75	390
3x16	1,21	17,40	573
3x25	0,78	21,25	861
4x0,75	26	6,70	66
4x1	19,5	7,20	79
4x1,5	13,3	7,75	98
4x2,5	7,98	9,65	154
4x4	4,95	10,95	216
4x6	3,3	13,15	314
4x10	1,91	16,35	504
4x16	1,21	19,30	743
4x25	0,78	23,60	1.12
5x0,75	26	7,35	80
5x1	19,5	7,85	95
5x1,5	13,3	8,55	120
5x2,5	7,98	10,65	188
5x4	4,95	12,10	266
5x6	3,3	14,55	386
5x10	1,91	18,15	623
5x16	1,21	21,45	920
5x25	0,78	26,25	1.389
6x0,75	26	8,00	97
6x1	19,5	8,60	119
6x1,5	13,3	9,30	151
6x2,5	7,98	11,65	237

CY 6-37 Core Control Cable

Section	Resistance to 20 °C	External diameter	Weight
(mm²)	(Ohm/km)	(mm)	(kg/km)
7x0,75	26	8,00	103
7x1	19,5	8,60	124
7x1,5	13,3	9,30	157
7x2,5	7,98	11,65	249
8x0,75	26	9,35	142
8x1	19,5	10,05	167
8x1,5	13,3	10,95	207
8x2,5	7,98	13,75	327
10x0,75	26	9,35	141
10x1	19,5	10,05	170
10x1,5	13,3	10,95	218
10x2,5	7,98	13,75	346
12x0,75	26	10,05	165
12x1	19,5	10,80	200
12x1,5	13,3	11,75	256
12x2,5	7,98	14,80	409
14x0,75	26	10,70	188
14x1	19,5	11,55	229
14x1,5	13,3	12,60	295
14x2,5	7,98	15,90	473
16x0,75	26	11,40	216
16x1	19,5	12,30	263
16x1,5	13,3	13,40	338
16x2,5	7,98	16,95	542
19x0,75	26	12,10	247
19x1	19,5	13,05	301
19x1,5	13,3	14,25	389
19x2,5	7,98	18,05	627
24x0,75	26	13,50	307
24x1	19,5	14,55	374
24x1,5	13,3	15,90	484
24x2,5	7,98	20,20	784
30x0,75	26	14,90	376
30x1	19,5	16,10	461
30x1,5	13,3	17,60	598
30x2,5	7,98	22,35	968
37x0,75	26	16,30	456
37x1	19,5	17,60	559
