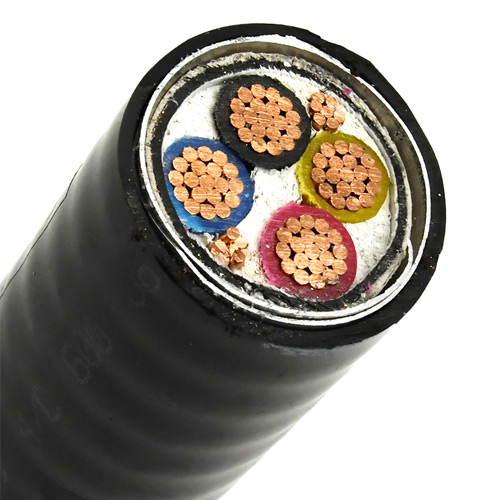

0.6/1kV Teck Type 90 Aluminum Alloy, Multi-conductor

Available in 600 V (specially manufactured in 1000 V and up to 5000 V), in gauges from 6 AWG to 750 kcmil; in monopolar conductors, the grounding conductor is applied concentrically around the phase conductor.

Experts
Quality assurance
Fast delivery
Purchase bonuses

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description
Parameter
Certificates
Our Customs
Our workshop
Why choose us

Description of Teck90 Cable

1. Conductor: Cable consisting of 1, 3, and 4 AA-8030 aluminum alloy conductors, twisted together with a bare grounding wire.
2. Insulation: XLPE
3. Filler: Hygroscopic compound to maintain conductor concentricity
4. Bonding Tape: High-strength corrugated Mylar tape
5. Inner Jacket: PVC
6. Armor: 5000 series aluminum crimp
7. Continuous PVC outer jacket over the crimp. Markings per meter

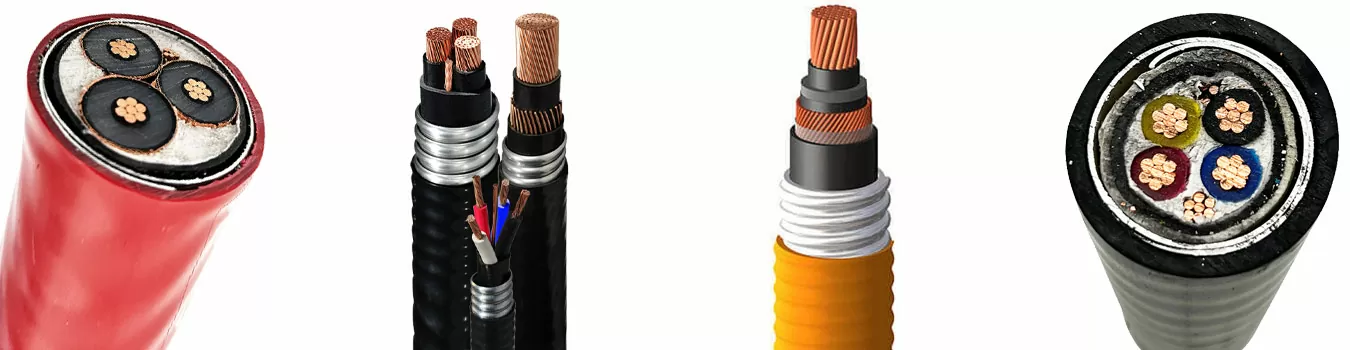

2.-teck90-cable

Teck90 Cable Applications

• Directly buried
• Embedded in concrete
• In ladder-type cable trays or mesh
• In any other type of conduit
• Ideal for mines, oil, petrochemical, and metallurgical industries
• Class 1, Zones I and II, and Classes 2 and 3, Division I and II for hazardous areas

Features of Teck90 Cable

Available in 600 V (specially manufactured in 1000 V and up to 5000 V), in gauges from 6 AWG to 750 kcmil; in single-core conductors, the grounding conductor is applied concentrically around the phase conductor.
• The cables are filled with non-hygroscopic filaments, ensuring conductor concentricity and facilitating pulling.
• The outer PVC jacket is marked per meter, facilitating measurement of cut lengths. The marking is verified by meters calibrated to international standards.
The excellent inherent properties of the cable, its materials and construction, ensure its reliability, even when exposed to many forms of degradation and environmental attacks.

Specification

Parameters of 6 AWG to 750 kcmil A Conductors

	Grounding conductor size	APPROX. DIAMETERS			APPROX. WEIGHT		APPROX. DIAMETERS			APPROX. WEIGHT		Length
Conductor size	Grounding conductor size	Without Armor	With Armor	With PVC	Conductor Metal	Total	Without Armor	With Armor	With PVC	Conductor Metal	Total
AWG/kcmil		mm	mm	mm	kg/km	kg/km	mm	mm	mm	kg/km	kg/km	m
UN CONDUCTOR
250	1	23,0	29,5	32,0	469	1134	24,2	30,7	33,7	469	1296	305
300	1	24,3	30,8	33,3	540	1233	25,8	32,3	34,8	540	1312	305
350	1/0	27,3	33,4	35,9	640	1408	28,3	34,8	37,3	640	1479	305
500	2/0	29,3	35,8	38,3	891	1749	30,5	37,0	39,5	891	1805	305
750	3/0	35,4	42,9	46,3	1290	2474	35,7	43,3	46,7	1290	2490	305
1000	3/0	39,3	46,8	50,2	1638	2955	39,7	47,2	50,6	1638	3068	305

Parameters of 6 AWG to 750 kcmil Three Conductor

	Grounding conductor size	APPROX. DIAMETERS			APPROX. WEIGHT		APPROX. DIAMETERS			APPROX. WEIGHT		Length
Conductor size	Grounding conductor size	Without Armor	With Armor	With PVC	Conductor Metal	Total	Without Armor	With Armor	With PVC	Conductor Metal	Total
AWG/kcmil		mm	mm	mm	kg/km	kg/km	mm	mm	mm	kg/km	kg/km	m
TRES CONDUCTORES
6	8	18,0	24,5	27,0	134	672	19,6	26,1	28,6	134	732	1.219
4	6	20,7	27,4	28,9	214	836	23,4	29,8	32,3	214	965	914
2	6	24,6	30,8	33,3	318	1078	26,2	32,7	35,2	318	1162	762
1	4	27,4	33,9	36,4	412	1288	30,5	37	39,5	412	1422	762
1/0	4	29,3	35,9	38,4	506	1453	32,3	38,8	42,3	506	1682	762
2/0	4	31,8	39,1	42,5	620	1767	34,5	41,7	45,1	620	1921	305
3/0	4	34,3	41,7	45,1	768	1981	37,2	44,4	48,1	768	2169	305
4/0	4	37,1	44,5	47,9	952	2282	39,9	47,4	50,8	952	2539	305
250	2	41,3	48,2	51,6	1150	2764	45,2	52,7	56,1	1150	3145	457
300	2	45,7	53,2	56,7	1361	3473	48,4	55,9	60,1	1361	3628	152
350	2	48,2	55,1	58,4	1572	3510	50,6	58,1	62,3	1572	3929	152
400	2	50,3	57,7	61,9	1781	4061	53,1	60,6	64,8	1781	4252	152
500	1	54,5	62,0	66,2	2233	4720	57,6	65,2	69,4	2233	4957	152
750	1/0	66,0	73,2	77,4	3318	6390	67,2	74,4	78,6	3318	6498	122

Parameters of 6 AWG to 750 kcmil Four Conductor

	Grounding conductor size	APPROX. DIAMETERS			APPROX. WEIGHT		APPROX. DIAMETERS			APPROX. WEIGHT		Length
Conductor size	Grounding conductor size	Without Armor	With Armor	With PVC	Conductor Metal	Total	Without Armor	With Armor	With PVC	Conductor Metal	Total
AWG/kcmil		mm	mm	mm	kg/km	kg/km	mm	mm	mm	kg/km	kg/km	m
CUATRO CONDUCTORES
6	8	20,6	26,9	29,4	171	787	22,0	28,5	31,0	171	985	762
4	6	24,8	31,0	33,5	272	1042	26,3	32,8	35,3	272	1130	762
2	6	27,7	33,9	36,4	411	1284	29,1	35,6	38,1	411	1366	762
1	4	31,3	37,8	40,3	530	1560	34,0	40,5	43,9	530	1785	305
1/0	4	33,1	40,7	44,1	654	1863	35,9	43,1	46,5	654	2041	305
2/0	4	35,3	42,7	46,1	807	2064	38,2	45,4	48,8	807	2289	305
3/0	4	37,4	44,9	48,6	1004	2363	41,1	48,3	51,7	1004	2676	305
4/0	4	42,4	50,2	53,6	1250	3014	45,9	53,4	56,8	1250	3235	152
250	2	47,1	54,1	58,3	1502	3600	49,9	57,4	61,6	1502	3851	152
350	2	53,0	60,1	64,3	2065	4435	55,9	63,4	67,6	2065	4696	152
400	2	55,6	63,0	67,2	2343	4878	58,7	66,2	70,4	2343	5202	152
500	1	60,3	67,8	72,0	2939	5722	63,7	71,2	75,4	2939	6026	152
750	1/0	74,3	81,8	86,6	4374	8221	75,8	83,3	88,1	4374	8336	152
